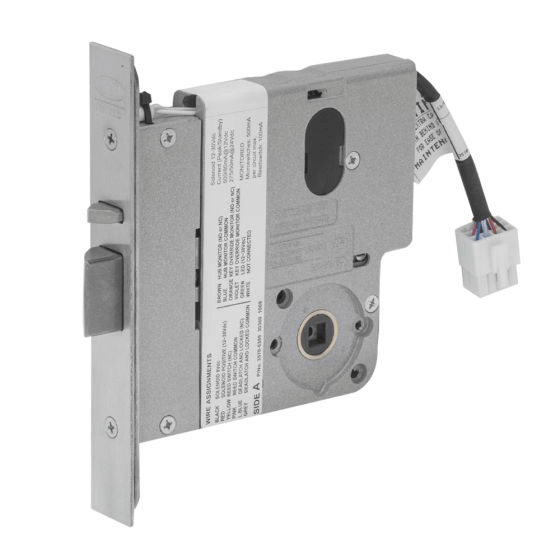

Electric Mortice Lock Monitored | 12-24V | 89mm Backset | High-Grade Zinc Alloy | by LOCKWOOD
The Electric Mortice Lock Monitored is designed for high-security applications, operating at 12-24V with a robust 89mm backset. Ideal for commercial buildings, it integrates seamlessly with electronic access control systems and features monitoring capabilities for enhanced security. Built from high-grade zinc alloy, this lock ensures durability and reliability, making it perfect for installations requiring professional setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Mortice Lock Monitored | 12-24V | 89mm Backset | High-Grade Zinc Alloy | by LOCKWOOD
Brand: LOCKWOOD
SKU: 4570ELM0SC
Alternatively Known As: Electric Mortice Lock, Monitored Mortice Lock, Electronic Mortice Lock, Access Control Mortice Lock
Technical Specifications
- Operating Voltage: 12Vdc - 24Vdc
- Current: 500mA (max) 80mA holding @ 12Vdc, 275mA (max) 50mA holding @ 24Vdc
- Backset: 89mm
- Door Clearance: 3 - 6.5 mm
- Door Thickness: Standard applications 32 to 50mm
- Dimensions (H x L x W): 150mm x 40mm x 89mm
- Weight: 2.5 kg
Key Features
- High performance lock constructed from high grade zinc alloy with stainless steel latch bolt and face plate
- Operable by push buttons, intercom systems, key switches, or integrated electronic access control
- Configurable on site to cover all locking functions
- Monitoring features include dead latched and locked status, door position/reed switch, dual key override monitoring, request to exit (REX), and LED indication
Professional Installation Requirements
- Professional installation by a qualified locksmith or security system installer is recommended to ensure proper configuration and integration with access control systems.
Applications
- Commercial buildings requiring high security locking solutions
- Integration with electronic access control systems
- Use with push buttons, intercom systems, key switches, keypads, or card readers
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Supports integration with electronic systems to reduce physical key usage
Warranty Information
5 years warranty.
Available Now
The LOCKWOOD 4570 Electric Mortice Lock is available for immediate purchase, ideal for commercial security applications requiring monitored locking solutions.
