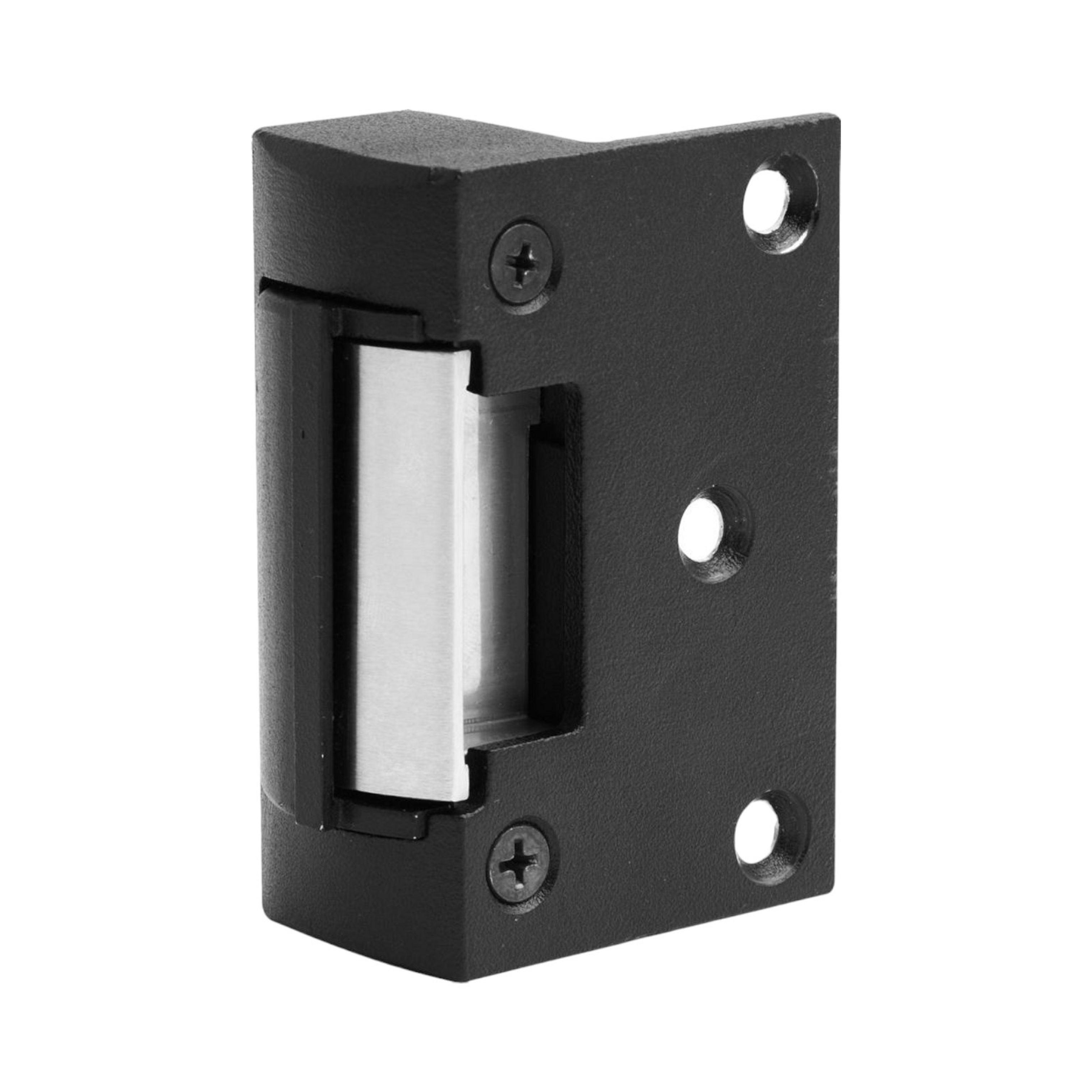

Electric Strike Lock | Fail Safe Non Monitored | IP56 Rated | 680kg Holding Force | by Lockwood
The Electric Strike Lock is designed for high-security access control, featuring a fail-safe non-monitored operation and an impressive 680kg holding force. Ideal for both commercial and residential applications, this surface-mounted lock is easy to install on steel and wooden door frames, ensuring reliable performance in various environments. With an IP56 weather-resistant rating, it’s built to withstand the elements while providing peace of mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Strike Lock | Fail Safe Non Monitored | IP56 Rated | 680kg Holding Force | by Lockwood
Brand: Lockwood
SKU: ES150-1M
Alternatively Known As: Electric Strike Lock, Fail Safe Electric Strike, Surface Mounted Electric Strike, Access Control Electric Strike
Technical Specifications
- Voltage: 12Vdc & 24Vdc
- Current: 250 mA @ 12Vdc, 125 mA @ 24Vdc
- Solenoid: Rated for continuous use
- Monitoring: None
- Holding Force: 680kg static strength rating
- Endurance: Cycle tested to 1,000,000 operations
- Operational Temperature Range: -20°C to +60°C
- Body: Solid stainless steel construction
- Keeper: Stainless steel
- Specification Statement: Suitable for surface mount applications with rim or surface mount door locks; interchangeable for Power to Lock or Power to Open on site
- Dimensions (H x L x W): 100mm x 25mm x 30mm
- Weight: 1.2 kg
Key Features
- Surface mounted electric strike
- High levels of security comparable to more expensive electric locking solutions
- Easy installation on steel and wooden door frames
- Weather resistant construction available (IP56)
- Solenoids rated for continuous use
- Cycle tested to 1,000,000 operations
- 680kg static strength rating
Professional Installation Requirements
- Professional installation by a qualified locksmith or security system installer is recommended to ensure proper integration with access control systems and compliance with safety standards.
Applications
- Suitable for use with rim or surface type dead latches
- Can be controlled by keypad, keyswitch or integrated into access control systems
- Ideal for steel and wooden door frames
- Weather resistant version available for exterior applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Weather resistant design minimizes environmental damage and waste
Warranty Information
5 years warranty.
Available Now
The Lockwood ES151 12/24VDC Fail Safe Non Monitored Electric Strike with IP56 rating is available now for immediate purchase. Ideal for secure access control in commercial and residential buildings.
