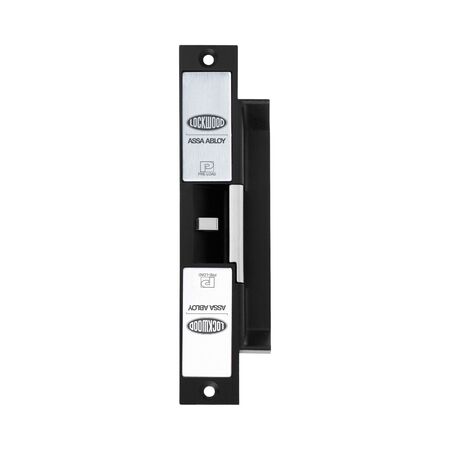

Electric Strike Lock | Preload Monitored | 10-30VDC | 1300kg Holding Force | by Lockwood
The Electric Strike Lock is designed for high-security commercial applications, featuring a preload monitored function and operating voltage of 10-30VDC. With a robust holding force of 1300kg and a durable stainless steel construction, it ensures reliable performance in demanding environments. Ideal for doors requiring monitored electric strike locking, this lock is built for longevity with over 2 million tested cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Strike Lock | Preload Monitored | 10-30VDC | 1300kg Holding Force | by Lockwood
Brand: Lockwood
SKU: ES9000
Alternatively Known As: Electric Strike Lock, Preload Monitored Electric Strike, Lockwood ES9000 Strike
Technical Specifications
- Voltage: 10 - 30Vdc
- Current: 250mA @12Vdc, 130mA @24Vdc
- Solenoid rated for continuous use
- Polarity and back EMF protected
- Solenoid Monitor: 1 amp NO/NC microswitch
- Door/Latch Monitor: 1 amp NO/NC microswitch
- Holding force: 1300kg static strength rating
- Endurance: 1,200,000 cycles @ 25kg pre-load, 2,500,000 cycles general durability
- Suitable for 15mm latch with 3mm door gap
- Operational temperature range: -20°C to +60°C
- Body and Keeper: Solid Stainless Steel Construction
- Dimensions (H x L x W): 30mm x 200mm x 100mm
- Weight: 1.5 kg
Key Features
- Operates with up to 25kg of pre-load pressure on the keeper
- Multi voltage 10 - 30Vdc operation
- Field changeable settings from fail safe to fail secure
- Tested in excess of 2 million cycles
- Polarity and back EMF protected
- Solenoid rated for continuous use
- Independent door/latch and solenoid monitor switches
Professional Installation Requirements
- Professional installation by a qualified locksmith or security systems technician is recommended to ensure proper monitoring and secure operation.
Applications
- Commercial buildings with high security door access
- Doors requiring monitored electric strike locking
- Environments with pre-load pressure on door keepers
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Energy efficient solenoid operation minimizes power consumption
Warranty Information
5 years warranty.
Available Now
The Lockwood ES9000 Electric Strike is available for immediate purchase, ideal for commercial security door applications requiring monitored electric strikes with pre-load capability.
