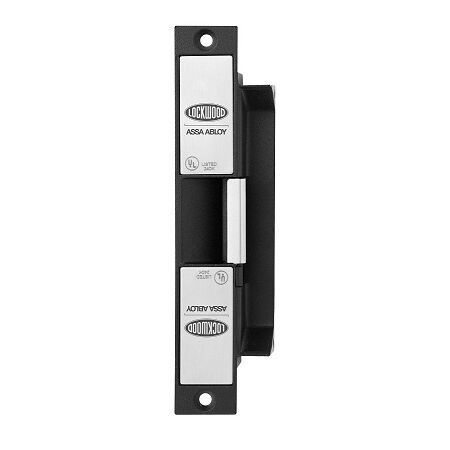

Lockwood ES200 Electric Strike 12VDC Fail-Safe LOCKWOOD

BRAND: Lockwood
SKU: ES200-1
$233.80 List price: $311.70
+ −
30 Days Return Electricians Unlock Trade Access
The Electric Strike Lockwood ES200 is a high-security solution featuring a 12VDC fail-safe design and an impressive 850kg holding force.
Technical Specifications
  • Voltage: 12 - 24Vdc
  • Current: 175 mA @ 12Vdc, 88 mA @ 24Vdc
  • Solenoids rated for continuous use
  • Monitoring: None
  • Holding Force: 850kg Static Strength Rating
  • Endurance: Cycle tested to 1,000,000 operations
  • Latch: Suitable for 15mm latch bolt with 3mm door gap
  • Operational Temperature Range: -20°C to +60°C
  • Body: Solid Stainless Steel Construction
  • Keeper: Stainless Steel

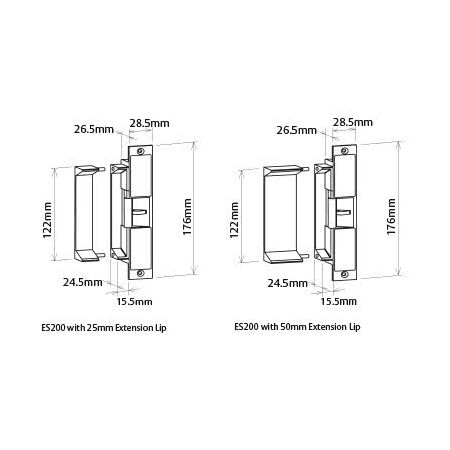

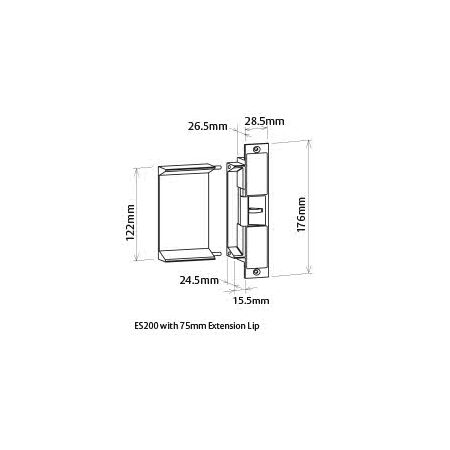

  • Dimensions (H x L x W): 25mm x 200mm x 100mm
  • Weight: 1.5 kg
Key Features
  • High security electric strike made from cast stainless steel
  • Flexible configuration: fail safe or fail secure
  • Can be mounted on left or right hand side of door
  • Suitable for 15mm latch bolt with 3mm door gap
  • Strong holding force with 850kg static strength rating
  • Cycle tested to 1,000,000 operations
  • Operational temperature range from -20°C to +60°C
  • Solenoids rated for continuous use
Professional Installation Requirements
  • Professional installation by a qualified locksmith or security system installer is recommended to ensure proper configuration and compliance with safety standards.
Applications
  • Access control systems for hinged doors
  • Fire and security control in building management systems
  • Commercial and residential security installations
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable stainless steel construction reduces need for frequent replacements
  • Energy efficient solenoids rated for continuous use
Warranty Information

TRICARE® 5 Year Warranty

Available Now

The LOCKWOOD ES200 Electric Strike 12VDC Fail Safe Non Monitored is available now for immediate purchase. Ideal for high security access control applications in commercial and residential buildings.
