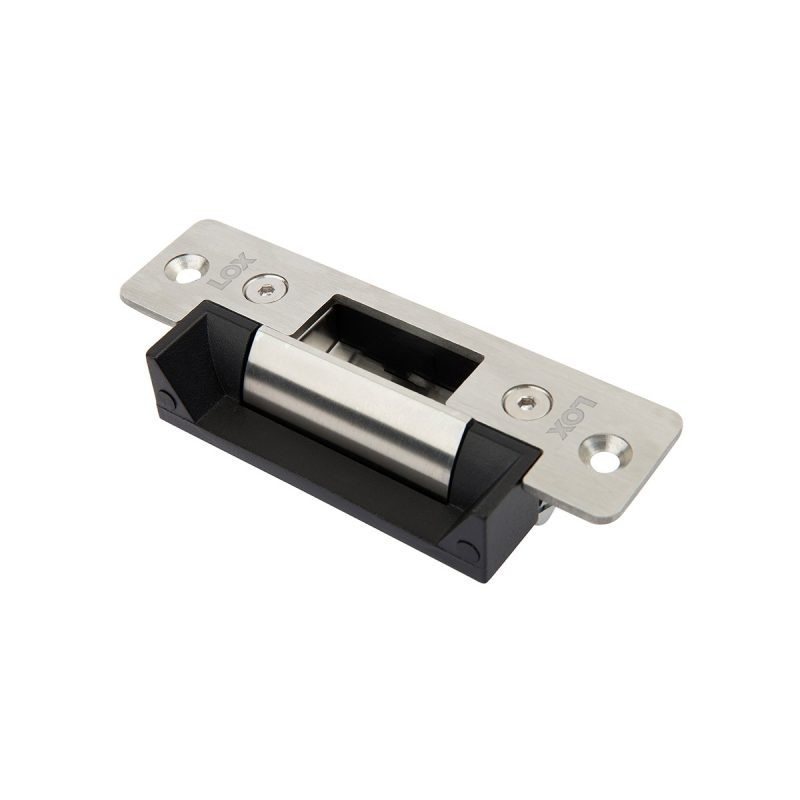

Electric Strike LOX ES10 | Dual Voltage 12/24VDC | IP56 Weather Resistant | by Dicker Data
The Electric Strike LOX ES10 features dual voltage operation at 12/24VDC and an IP56 weather-resistant rating, making it ideal for enhancing security on residential and light commercial single swing doors. With a holding strength of up to 1000kg and the ability to switch between fail-secure and fail-safe modes, this electric strike is built for reliability and versatility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Strike LOX ES10 | Dual Voltage 12/24VDC | IP56 Weather Resistant | by Dicker Data
Brand: Dicker Data
SKU: ES10
Alternatively Known As: Electric Door Strike, ANSI Electric Strike, Fail-Secure Electric Strike, Fail-Safe Electric Strike, Door Strike Lock
Technical Specifications
- Holding Strength: Up to 1000kg
- Voltage/Current: Dual Voltage 12/24VDC (12VDC = 200mA, 24VDC = 100mA)
- Approvals: Up to 4 hour fire rated to A.S standard, CE & C-TICK
- IP Rating: IP56
- Operational Temperature Range: -20°C to 60°C
- Dimensions (H x L x W): 100mm x 200mm x 30mm
- Weight: 1.2 kg
Key Features
- Dual voltage operation: 12 or 24VDC
- Site interchangeable between Fail-Secure and Fail-Safe modes using a screwdriver
- Pre-drilled for extension lips
- Weather resistant with IP56 rating
- Holding strength up to 1000kg
- Monitored version available with door status sensor
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure proper morticing and electrical connection.
Applications
- Residential single swing doors with mortice or cylindrical tongue locks
- Light commercial door security installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy efficient dual voltage operation minimizes power consumption
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The LOX ES10 Electric Strike is available now for immediate purchase. Ideal for enhancing security on residential and light commercial single swing doors.
