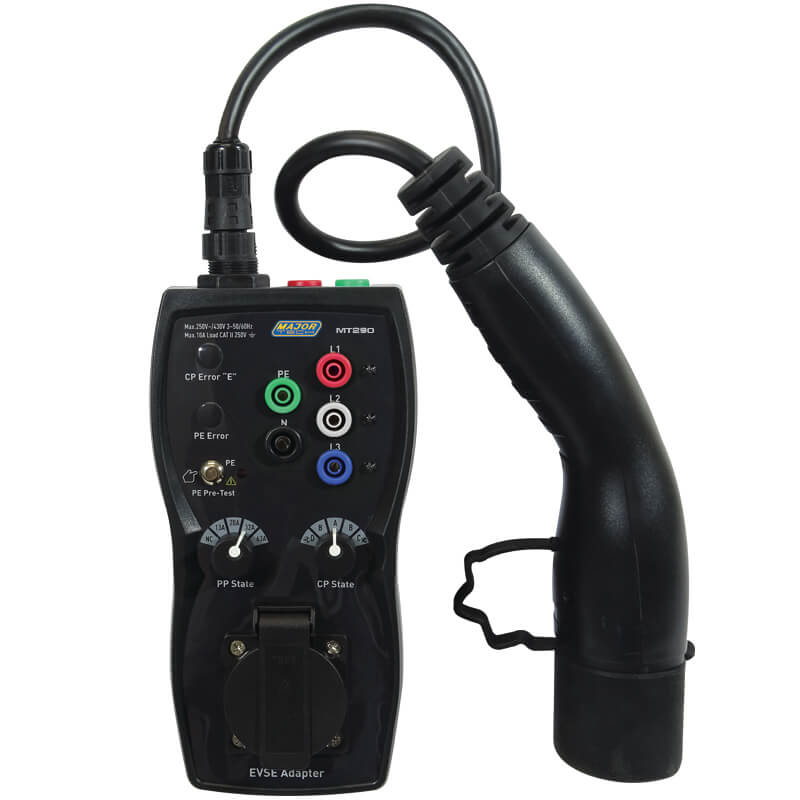

Electric Vehicle Supply Equipment Adaptor | 10A Current Range | Type 1 & Type 2 Compatibility | PE Pre-Test by Majortech
Electric Vehicle Supply Equipment Adaptor with a 10A current range and compatibility for Type 1 and Type 2 connectors—ideal for electrical contractors testing EV charging stations. Built for safe operation, with PE pre-test functionality to detect dangerous voltage presence.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Vehicle Supply Equipment Adaptor | 10A Current Range | Type 1 & Type 2 Compatibility | PE Pre-Test by Majortech
Brand: Majortech
SKU: MT290
Alternatively Known As: EVSE Tester Adaptor, Electric Vehicle Charger Tester, EV Charging Station Adaptor, EVSE Socket Tester
Technical Specifications
- Input Max Three Phase System Voltage: 430V, 50/60Hz
- Current Range: 10A
- Voltage Range: 200.0mV to 600V
- EVC-200 Connector: AC charging mode 3, suitable for Type 2 wall top contact or fixed cable with vehicle connection (Type 2 7P operation phase)
- EVC-100 Connector: AC charging mode 3, suitable for Type 1 with vehicle connection (Type 1 5P single-phase)
- PE Pre-Test: Detects error condition or disconnection of plug
- PP Stimulation: Simulates 20A, 32A, 63A cable current coding positions
- CP Stimulation: Simulates charging states A (EV disconnect), B (EV connected), C (EV charged without ventilation), D (EV charged with ventilation)
- CP Error 'E': On (CP short to PE via diode) / off
- PE Error: On (PE error) / off
- Dimensions (H x L x W): 60mm x 115mm x 227mm
- Weight: 0.832 kg
Key Features
- Extends interface for Electric Vehicle Supply Equipment (EVSE) testing
- Simulates connection of an electric vehicle to charging points
- PE Pre-Test for detecting dangerous voltage presence on PE conductor
- Rotary switch for Proximity Pilot (PP) simulating various cable current capabilities
- Rotary switch for Control Pilot (CP) simulating various charging states
- Measurements possible on live conductors via front mains socket or 4mm terminals
- Includes Type 1 and Type 2 plugs and hard carrying case
Professional Installation Requirements
- Professional installation and testing by qualified electrical contractors is recommended to ensure compliance with safety standards and proper operation.
Applications
- Electrical contractors testing single and three phase EV charge points
- Verification of electrical safety and function of Mode 3 AC Electric Vehicle charging stations
- Testing and simulation of EVSE sockets and charging cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Supports safe and efficient operation of electric vehicle charging infrastructure
- Helps ensure compliance with electrical safety standards, reducing risk of faults and energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech for specific warranty details.
Available Now
The Majortech Electric Vehicle Supply Equipment Adaptor MT290 is available now for immediate purchase. Ideal for electrical contractors and technicians testing EV charging stations.
