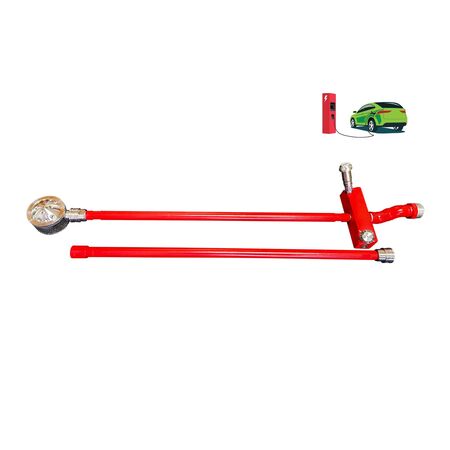

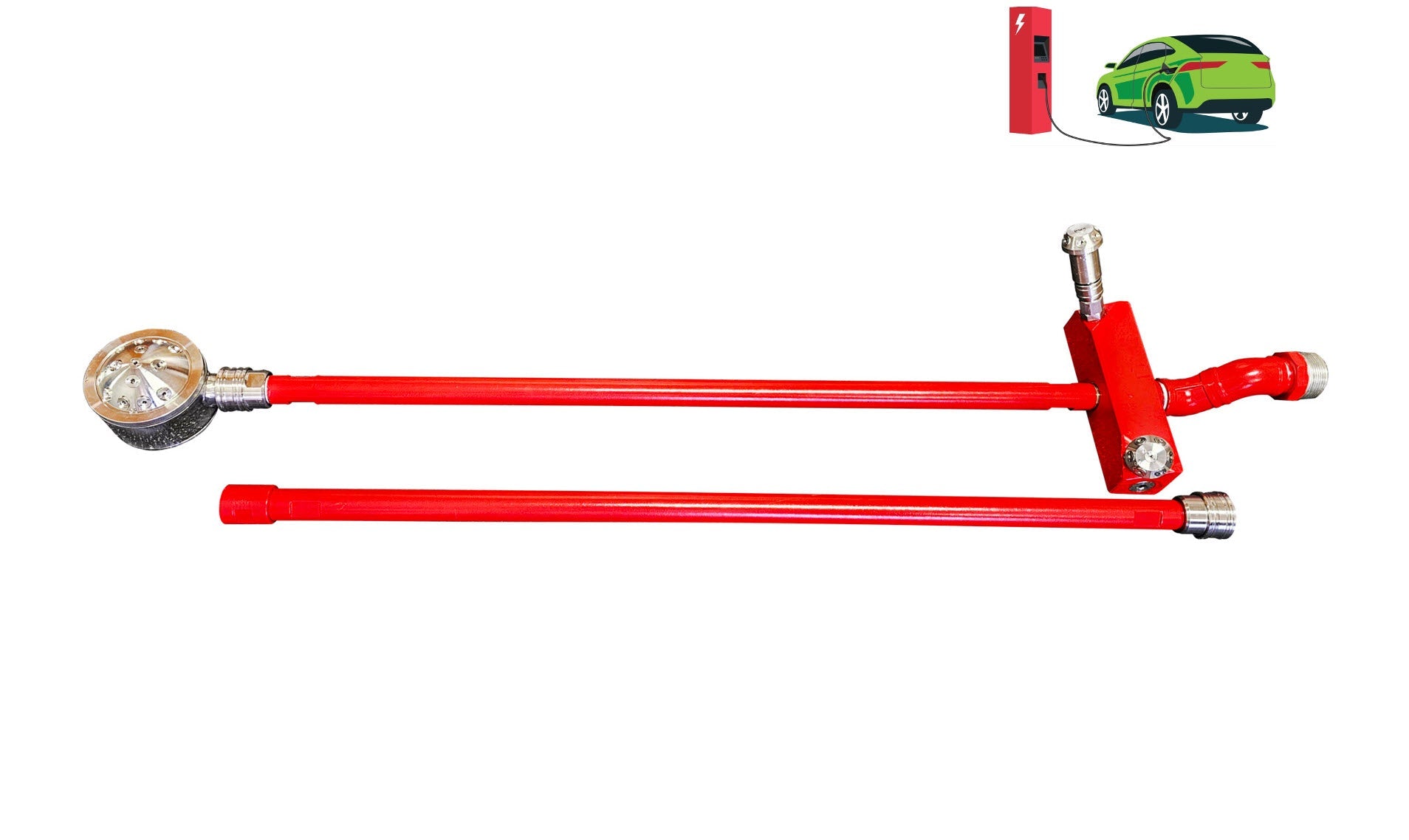

Electric Vehicle Water-Mist Spray System | 5.5m Coverage | 304 Stainless Steel | Quick Setup by Firebox
Electric Vehicle Water-Mist Spray System with 5.5m effective spray area and robust 304-grade stainless steel construction—ideal for firefighting electric vehicle fires. Built for emergency responders, it offers quick setup with self-locking connections and absorbs toxic gases for safer operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Vehicle Water-Mist Spray System | 5.5m Coverage | 304 Stainless Steel | Quick Setup by Firebox
Brand: Firebox
SKU: EVFS
Alternatively Known As: EV Water Mist System, Electric Vehicle Fire Suppression System, EV Battery Fire Extinguisher, Lithium-ion Battery Fire Mist System
Technical Specifications

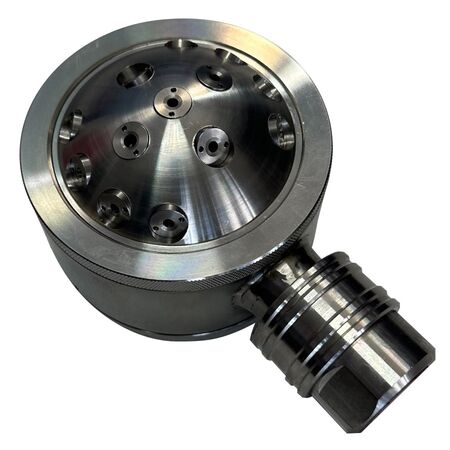

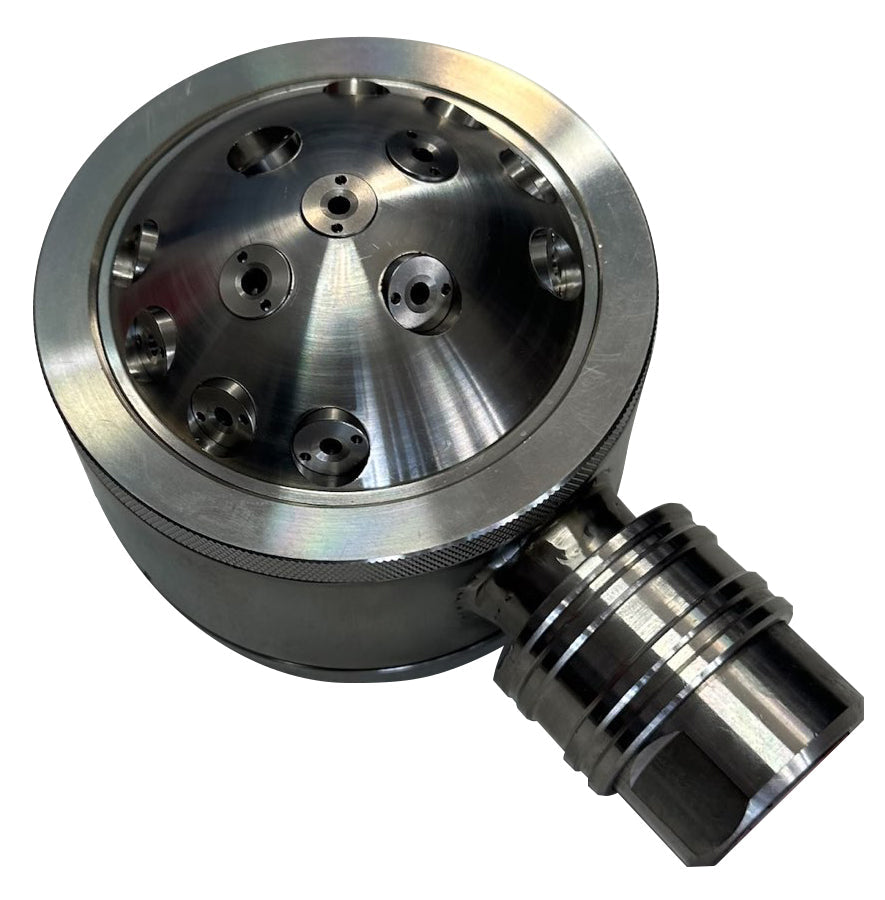

- Nozzle height: 79.5mm
- Spray area coverage: 5.5m x 1.55m at 150mm ground clearance
- Additional nozzles cover sides and top up to 1.8m height

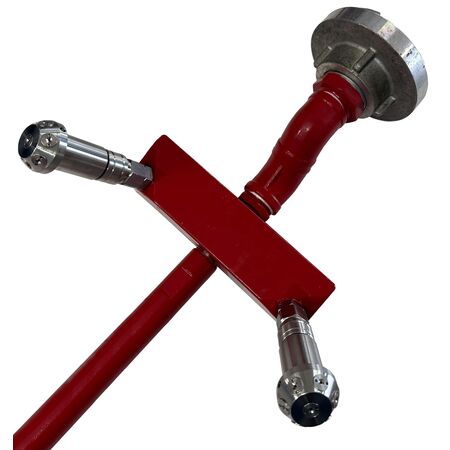

- Extension pipe length: up to 2.8 meters
- Material: 304-grade stainless steel with surface treatment
- Self-locking connections for quick setup
- Pre-fitted internal filter to prevent nozzle blockage
- Compatible with F-500EA Encapsulator Agent
- Dimensions (H x L x W): 1800mm x 5500mm x 2800mm
- Weight: 10 kg
Key Features

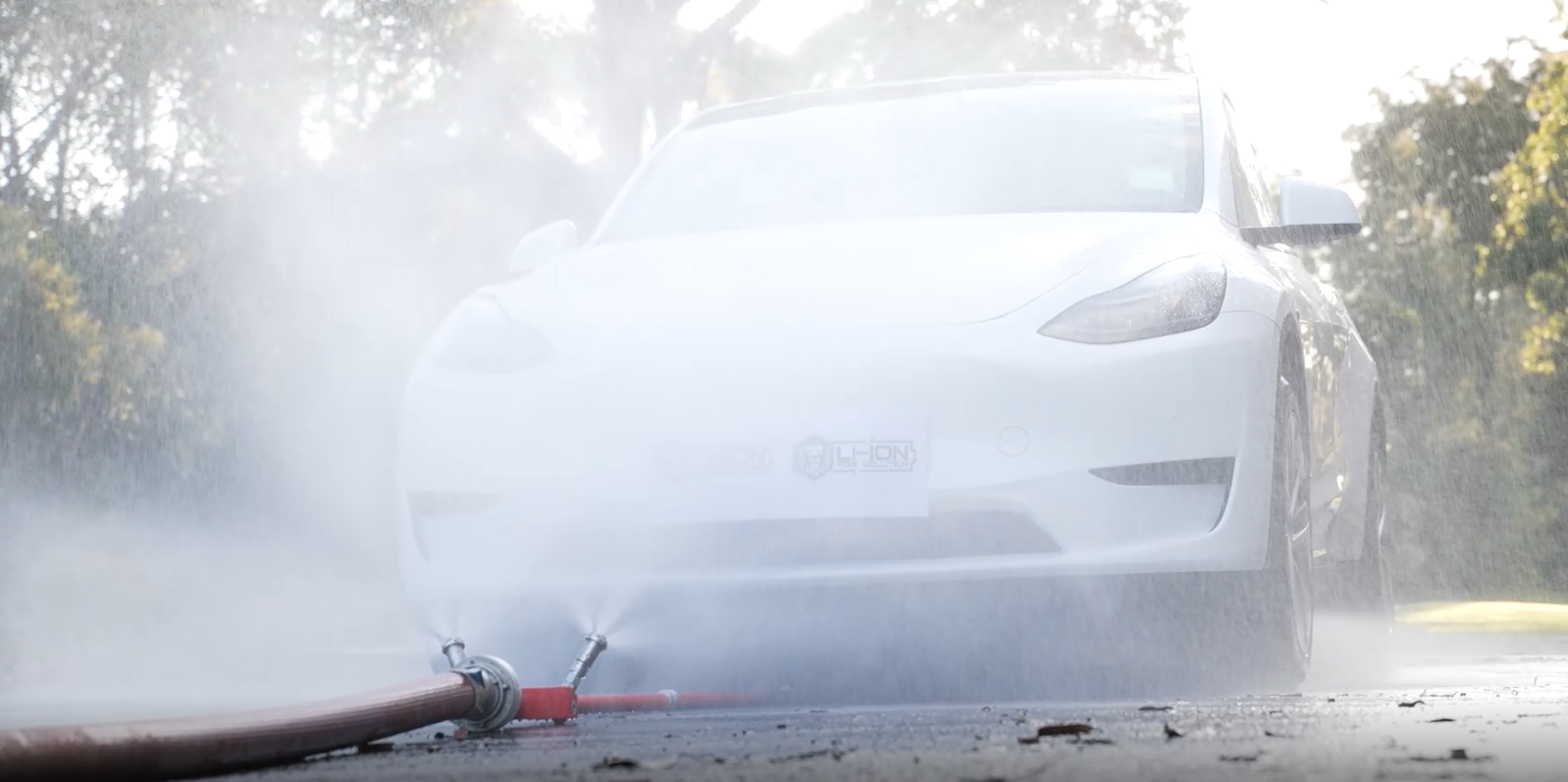

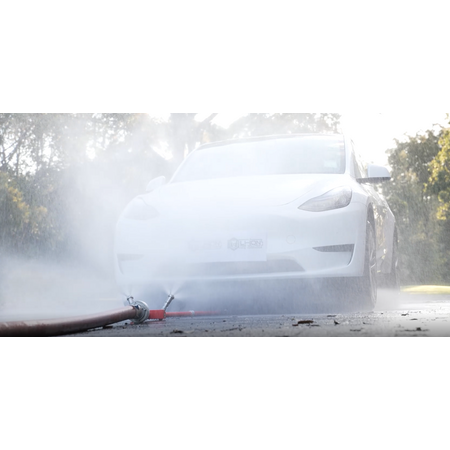

- Full vehicle and battery pack coverage with effective spray area of 5.5m x 1.55m at 150mm ground clearance

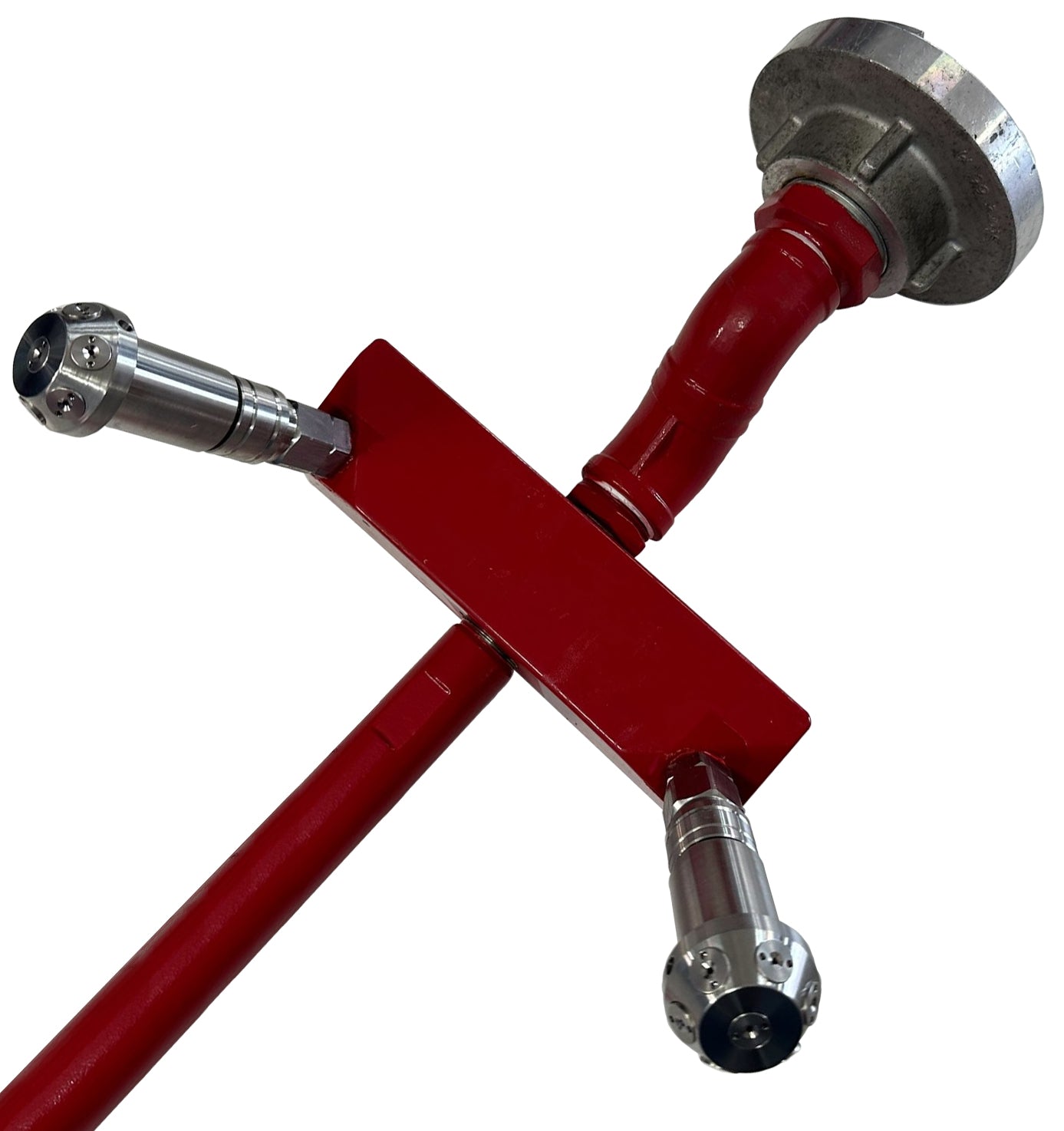

- Two additional water mist nozzles cover sides and top of vehicle up to 1.8m high
- Fast cooling effect combining spray and water misting discharge methods
- Absorbs toxic gases produced from battery chemical reactions
- Multi-directional use with four deployment directions for wide-area coverage

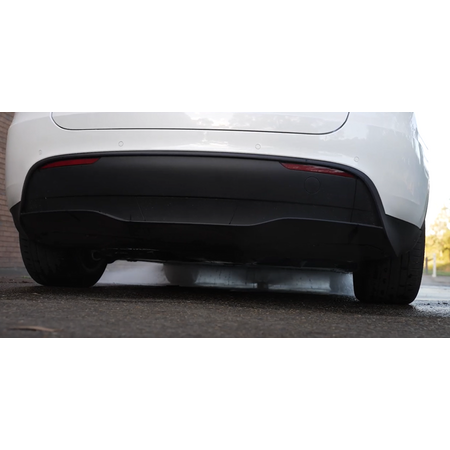

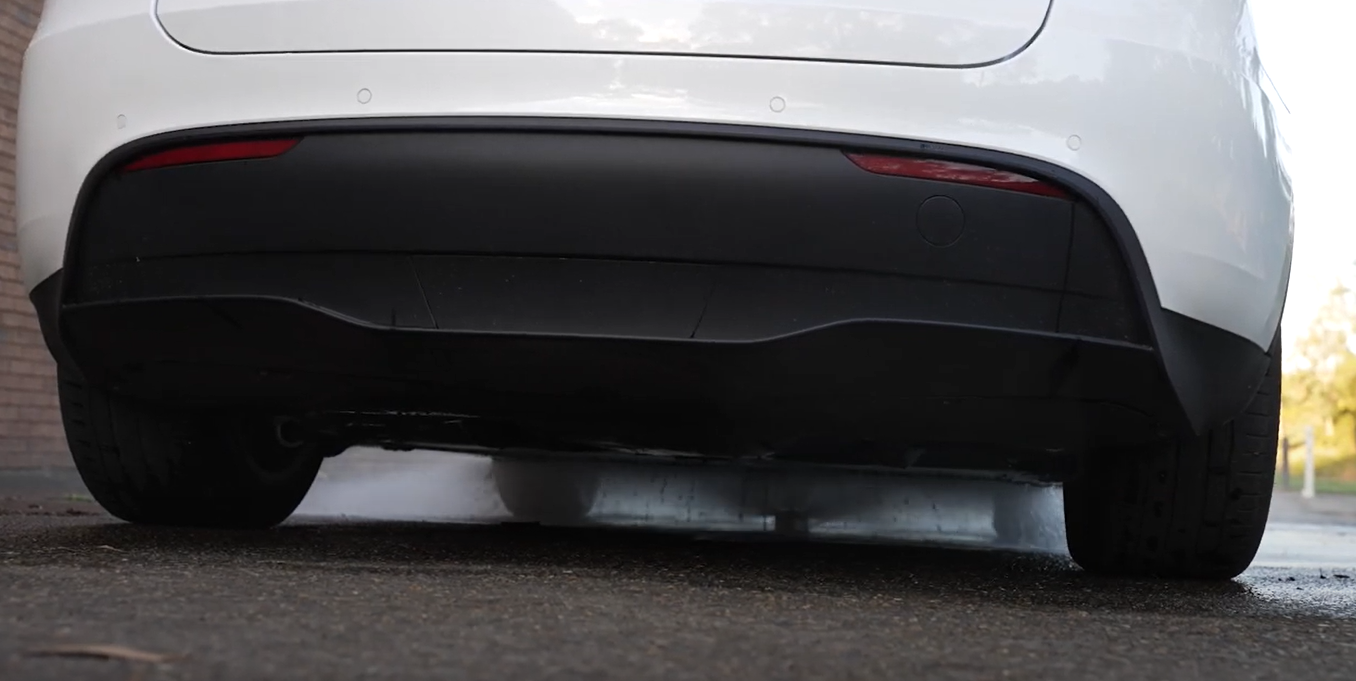

- Compact 79.5mm nozzle height suitable for sliding under all electric vehicles
- Robust and durable 304-grade stainless steel construction with high-quality surface treatment
- Safe operating distance up to 2.8m with extension pipe to protect emergency responders
- Quick and easy setup with self-locking connections
- Insulating coating to protect operators from electric shock risks
- Easy maintenance with pre-fitted internal filter to prevent nozzle blockage
- Compatible with F-500EA Encapsulator Agent to enhance cooling effect by 4-6 times
Professional Installation Requirements
- Installation and operation should be conducted by trained firefighting professionals familiar with EV fire suppression systems to ensure safety and effectiveness.
Applications
- Firefighting for electric vehicles
- Emergency response to lithium-ion battery fires
- Cooling and extinguishing EV battery fires
- Protection of emergency responders during EV fire incidents
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Water mist technology reduces water usage compared to traditional firefighting methods
- Helps prevent toxic gas release by absorbing harmful gases from battery chemical reactions
- Supports safer and more efficient fire suppression, minimizing environmental contamination
Warranty Information
Warranty details available upon request from Firebox; typically includes coverage against manufacturing defects.
Available Now
The Firebox Electric Vehicle Water-Mist Spray System is available now for immediate purchase. Ideal for fire departments and emergency responders managing electric vehicle fire incidents.
