Electrical Distribution Box | 18 Pole MCB | IP23 Rated | Galvanised Steel by B&R Enclosures

SKU: NSW/HBD
$117.70 List price: $147.90
+

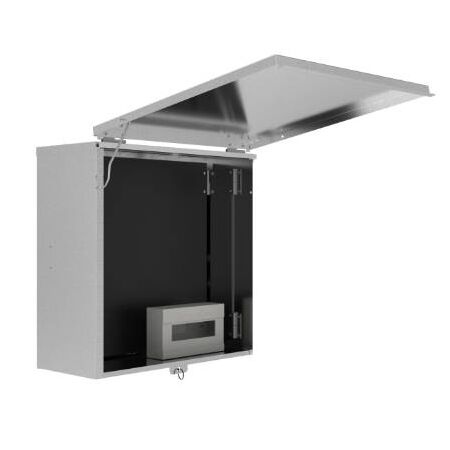

Electrical distribution box with 18 pole MCB and IP23 rating—ideal for domestic and light commercial installations. Built for versatility, with a top hinged door and side hinged panel design.

Product Name/Title: Panel Insul NSW Drilled for bottom connect meters

Brand: B&R Enclosures

SKU: NSW/HBD

Alternatively Known As: NSW Series Electrical Enclosure, Bren NSW Enclosure, Electrical Distribution Box

Technical Specifications
  • Material: Galvanised steel to Z275
  • IP Rating: IP23
  • Top hinged door and side hinged panel design.
  • 18 pole MCB DIN section cut into panel.
  • Dimensions (H x L x W): 560mm x 200mm x 575mm
  • Weight: 2.5 kg
Key Features
  • Suitable for domestic and light commercial installations.
  • Provides versatility with a large range of products and accessories.
  • Top hinged door and side hinged panel.
  • NSW/DIN has 18 pole MCB DIN section cut into panel.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Domestic: Homes and residential buildings
  • Commercial: Light commercial installations
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Environmental Benefits
  • Manufactured from galvanised steel, promoting durability and reducing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The New South Wales Series Electrical Enclosure is available now for immediate purchase. Ideal for domestic and light commercial installations.

Specification Sheet (, 439 Kb) [Download]

Specification Sheet (, 441 Kb) [Download]
