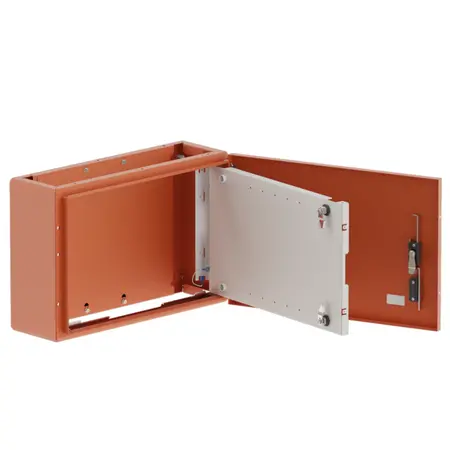

Electrical Extension Box | 400x600x200mm | IP43 Rated | Orange by Hager

BRAND: :hager
SKU: JPA0EXT0X
$555.80 List price: $692.60
+
Electrical extension box with 400x600x200mm dimensions and IP43 rating—ideal for secure outdoor installations. Built for residential and commercial use, with robust steel construction and 3-point lever locking for enhanced security.

Product Name/Title: Extension Box, apex, blank, 400x600x200mm, orange

Brand: Hager

SKU: JPA0EXT0X

Alternatively Known As: Electrical Extension Box, Outdoor Power Box, Panelboard Enclosure

Technical Specifications
  • Height: 400 mm
  • Width: 600 mm
  • Depth: 200 mm
  • Thickness of sidewall: 1.20 mm
  • Ingress Protection (IP) class: IP43
  • Isolation class: I
  • Locking type: 3-point lever, Key lock
  • Impact resistance: IK05
  • Nominal voltage: 415V
  • Dimensions (H x L x W): 400mm x 200mm x 600mm
  • Weight: 5 kg
Key Features
  • IP43 rated for protection against solid objects larger than 1mm and water spray.
  • 3-point lever locking mechanism for enhanced security.
  • Robust steel construction with powder-coated finish.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, garages, outdoor areas
  • Commercial: Industrial sites, construction sites
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Designed to reduce carbon footprint through sustainable manufacturing practices.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Apex Extension Box in orange is available now for immediate purchase. Ideal for secure outdoor electrical installations.

Data Sheet (JPA0EXT0X, 103 Kb) [Download]

Certificate (reach_declaration_JPA0EXT0X1.pdf, 103 Kb) [Download]

Data Sheet (JPA0EXT0X1.webp, 247 Kb) [Download]

Certificate (6LE009744B_Performa_Apex_Apex-Plus_EN_02-2024_Leaflet_web.pdf, 16,805 Kb) [Download]

Certificate (23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
