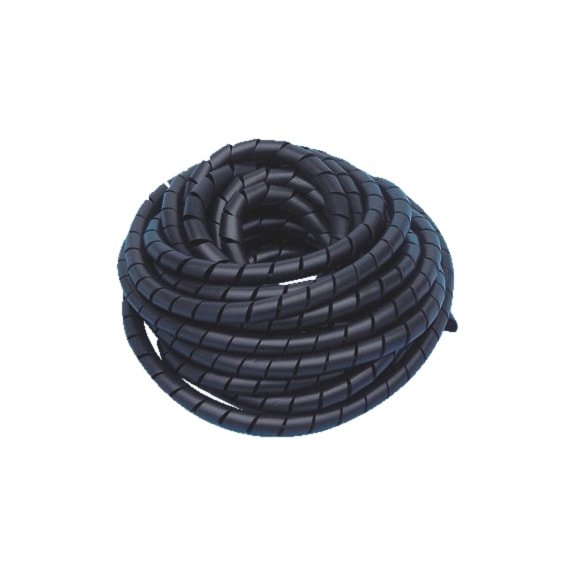

Electrical Insulating Tubing 7710080 | Halogen-Free PE Material | -30 to 80 °C Temperature Resistance | Black | by Wurth
Electrical insulating tubing 7710080 is designed for protecting and insulating wiring bundles in various applications, including industrial, commercial, and automotive settings. Made from halogen-free polyethylene, it offers excellent temperature resistance from -30 to 80 °C and complies with UL94 flammability standards, ensuring safety and durability in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electrical Insulating Tubing 7710080 | Halogen-Free PE Material | -30 to 80 °C Temperature Resistance | Black | by Wurth
Brand: Wurth
SKU: 7710080
Alternatively Known As: Electrical insulating tubing, PE wire insulation, Electrical wire protection sleeve
Technical Specifications
- Colour: Black
- Internal diameter: 8.2 mm
- Minimum/maximum bundle diameter: 12-50 mm
- Wall thickness: 0.90 mm
- Coil width: 12.0 mm
- Temperature resistance: -30 to 80 °C
- Flammability conditions: Tested in accordance with UL94
- Flammability rating: HB
- Material: PE - Polyethylene
- Halogen-free: Yes
- Dimensions (H x L x W): 0.9mm x 1000mm x 12mm
- Weight: 0.1 kg
Key Features
- Branches possible at any point
- Halogen-free polyethylene material
- Flammability tested to UL94 standard with HB rating
- Temperature resistance from -30 to 80 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical installation for insulating and protecting wiring bundles
- Industrial and commercial electrical wiring management
- Automotive and machinery wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces harmful emissions in case of fire
- Durable polyethylene construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for details.
Available Now
The Wurth 7710080 electrical insulating material is available for immediate purchase, ideal for electrical wiring protection in industrial, commercial, and automotive applications.
