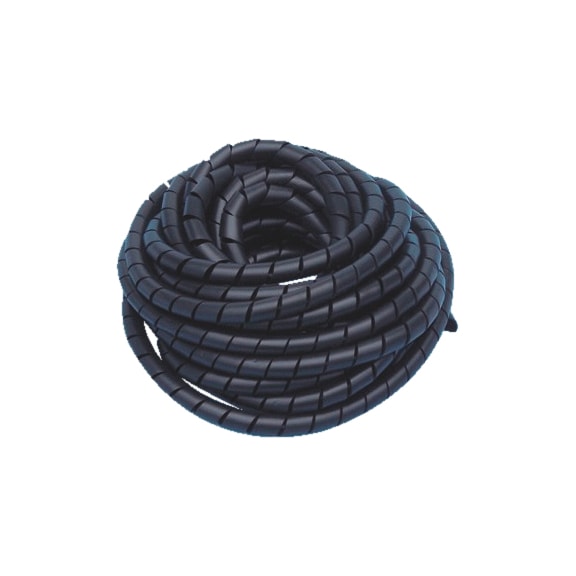

Electrical Insulating Tubing 7710090 | Halogen-Free PE Material | -30 to 80 °C Temperature Resistance | Black | by Wurth
Electrical insulating tubing 7710090 is designed for protecting and insulating cables in various applications. Made from halogen-free polyethylene, it offers a temperature resistance of -30 to 80 °C and is flammability tested to UL94 standards. Ideal for both residential and industrial electrical installations, this tubing ensures safety and compliance with AS/NZS 3000 wiring rules.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electrical Insulating Tubing 7710090 | Halogen-Free PE Material | -30 to 80 °C Temperature Resistance | Black | by Wurth
Brand: Wurth
SKU: 7710090
Alternatively Known As: Electrical insulating tubing, Cable insulation sleeve, PE insulating tube
Technical Specifications
- Colour: Black
- Internal diameter: 17.6 mm
- Minimum/maximum bundle diameter: 20-120 mm
- Wall thickness: 1.20 mm
- Coil width: 22.0 mm
- Temperature resistance: -30 to 80 °C
- Flammability conditions: Tested in accordance with UL94
- Flammability rating: HB
- Material: PE - Polyethylene
- Halogen-free: Yes
- Dimensions (H x L x W): 22mm x 1000mm x 22mm
- Weight: 0.1 kg
Key Features
- Branches possible at any point
- Halogen-free polyethylene material
- Flammability tested in accordance with UL94, rated HB
- Temperature resistance from -30 to 80 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical installation for insulating and protecting cables
- Suitable for use in electrical wiring and harnessing
- Ideal for industrial and residential electrical insulation needs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces harmful emissions in case of fire
- Durable polyethylene construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth 7710090 insulating material is available for immediate purchase, ideal for electrical insulation applications in residential, commercial, and industrial settings.
