Electrical Insulation Shroud 90mm | Flame Retardant PVC | 1 kV Voltage Rating | Flexible Design by Cabac

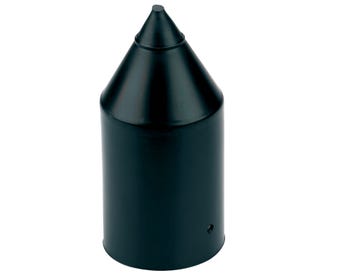

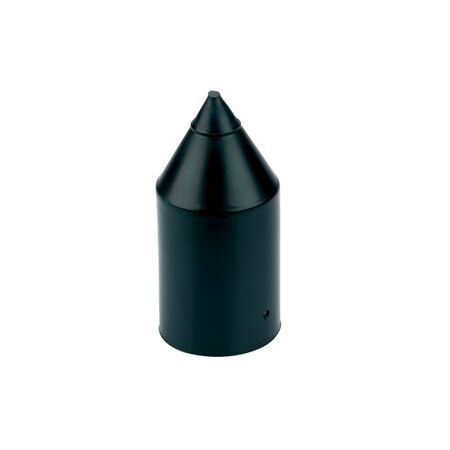

Cabac Shroud Conical 90mm X 65mmD with 5mm hole is a flame retardant PVC insulator designed to cover bolted lug connections inside pillar boxes, ensuring safety by insulating live electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Shroud Conical 90mm X 65mmD - 5mm Hole
Brand: Cabac
SKU: ISP-BK-SM-5MM
Alternatively Known As: Electrical Insulation Shroud, Pillar Box Shroud, Bolted Lug Insulator, PVC Electrical Shroud
Technical Specifications
- Material: PVC Compound
- Voltage Rating: 1 kV
- Thickness: Minimum 2mm
- Flammability: Non Ignitable (AS 2420 Appendix B)
- Dimensions (H x L x W): 65mm x 65mm x 90mm
- Weight: 0.05 kg
Key Features
- Fits over bolted lug connections inside pillar boxes to insulate live connections
- Made from flame retardant PVC compound
- Flexible enough to reshape around bolted connectors
- Can be fixed in position using a cable tie
- Available in conical or flat top design with or without holes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper insulation and safety compliance.
Applications
- Electrical pillar boxes for insulating live bolted lug connections
- Electrical power connectivity and pillar termination accessories
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable flame retardant PVC which extends product life and reduces waste
- Helps prevent electrical faults and hazards, contributing to safer electrical installations
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac Shroud Conical 90mm X 65mmD - 5mm Hole is available for immediate purchase, ideal for electrical pillar box insulation applications.
