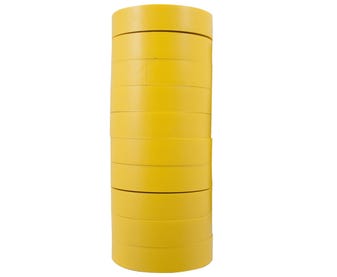

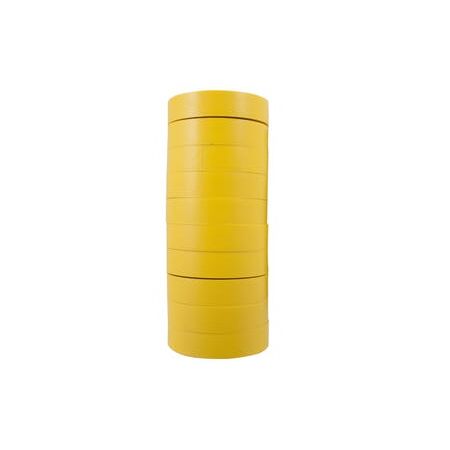

Electrical Insulation Tape Pack of 10 Rolls | PVC Material | 600V Rated | Flame Retardant by Cabac
Cabac Insulation Tape Yellow Pack of 10 Rolls provides reliable insulation, identification, and harnessing for electrical and industrial applications, rated up to 600V with strong adhesion and resistance to flame, weather, oil, and acids.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulation Tape Yellow Pack of 10 Rolls
Brand: Cabac
SKU: ITYL/10
Alternatively Known As: Electrical Insulation Tape, PVC Electrical Tape, Yellow Electrical Tape, Wire Harness Tape, Electrical Tape Roll
Technical Specifications
- Material Composition: PVC
- Thickness: 0.135 mm
- Adhesive Type: Rubber
- Adhesion Strength: >0.32 kg/19mm
- Elongation: >150%
- Dielectric Strength: 40 kV/mm
- Tensile Strength: >4.7 kg/25mm
- Flame Retardant: Yes
- Resistant to weather, oil, and acid
- Operating Temperature Range: 0 to 90°C
- Dimensions (H x L x W): 20mm x 1000mm x 19mm
- Weight: 0.1 kg
Key Features
- Standard grade electrical PVC insulation tape
- Thickness of 0.135mm
- Rated up to 600V
- Durable elasticity and strong adhesion
- Flame retardant
- Resistant to weather, oil, and acids
- Operates effectively within 0 to 90°C temperature range
- Available in multiple colors including yellow
Professional Installation Requirements
- No special professional installation required; ensure surface is clean, dry, and free from grease or dust before application.
Applications
- Identification and coding of electrical components
- Harnessing and bundling wires and cables within electrical systems
- General wire wrapping for secure and durable protection
- Basic insulation for electrical connections and components
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, restricting hazardous substances
- REACH compliant, ensuring safe chemical use
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
Cabac Insulation Tape Yellow Pack of 10 Rolls is available now for immediate purchase. Ideal for electrical insulation, wire harnessing, and identification in industrial and residential electrical applications.
