Electrical Shroud Flat Top 150mm | Flame Retardant PVC | Insulates Live Connections | No Hole by Cabac

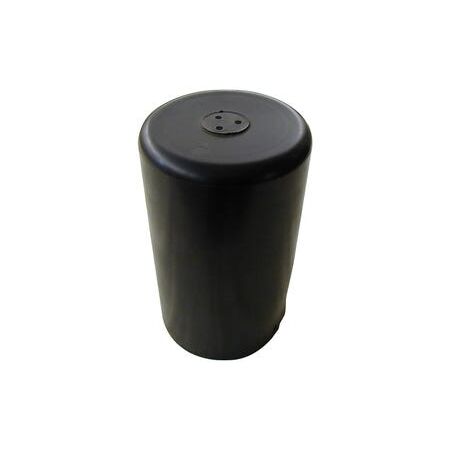

Cabac Shroud Flat Top 150mm x 95mmD - No Hole is a flame retardant PVC shroud designed to insulate live bolted lug connections inside pillar boxes, enhancing electrical safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Shroud Flat Top 150mm x 95mmD - NO Hole
Brand: Cabac
SKU: ISP-BK-LG-FT-NH
Alternatively Known As: Electrical Shroud, Pillar Box Shroud, Lug Connection Insulator, PVC Electrical Shroud
Technical Specifications
- Material: PVC Compound
- Voltage Rating: 1 kV
- Thickness: Minimum 2mm
- Flammability: Non Ignitable (AS 2420 App.B)
- Dimensions (H x L x W): 95mm x 95mm x 150mm
- Weight: 0.1 kg
Key Features
- Fits over bolted lug connections inside pillar boxes to insulate live connections
- Made from flame retardant PVC compound
- Flexible enough to reshape around bolted connectors
- Available in flat top design without holes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper insulation and safety compliance.
Applications
- Electrical pillar boxes to insulate live bolted lug connections
- Used in electrical power connectivity for safety and insulation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable flame retardant PVC which extends product life and reduces waste
- Helps prevent electrical faults and hazards, contributing to safer energy use
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac Shroud Flat Top 150mm x 95mmD - No Hole is available now for immediate purchase. Ideal for electrical pillar box applications requiring safe insulation of live connections.
