Electrical Switchboard Enclosure SF w/Mount Plate | IP66 Rated | Double Door Design | Powder-Coated Finish | @Pack of 1 | by Clipsal

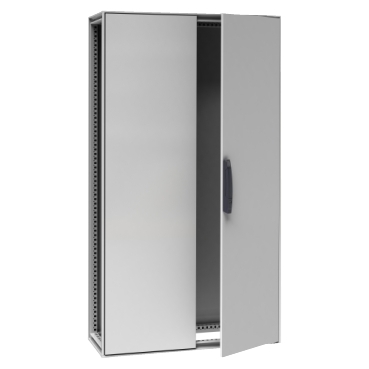

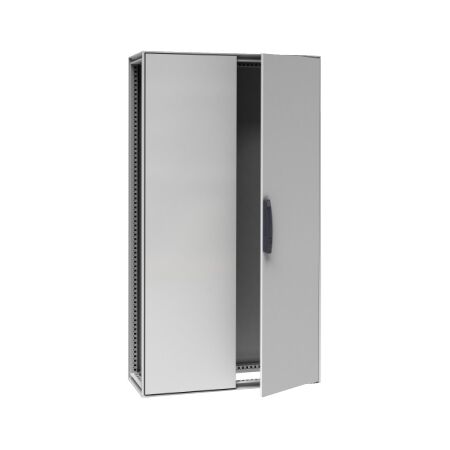

The Electrical Switchboard Enclosure SF with Mount Plate is designed for robust industrial applications, featuring a durable steel construction and IP66 rating for dust and water protection. Ideal for commercial electrical distribution and control panel housing, this enclosure includes a double door design for easy access and is suitable for both indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electrical Switchboard Enclosure SF w/Mount Plate | IP66 Rated | Double Door Design | Powder-Coated Finish | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYSF2012502DP
Alternatively Known As: Electrical switchboard enclosure, industrial control cabinet, Clipsal SF cabinet, double door electrical enclosure, SCHNSYSF2012502DP
Technical Specifications
- Material: Steel
- Finish: Powder-coated
- Ingress Protection: IP66
- Mounting Plate: Included
- Door Type: Double door
- Locking System: 3-point locking
- Cable Entry: Gland plates top and bottom
- Suitable for indoor and outdoor use
- Dimensions (H x L x W): 2000mm x 500mm x 1200mm
- Weight: 120 kg
Key Features
- Robust steel construction for enhanced durability
- Double door design for easy access
- Supplied with internal mounting plate for equipment installation
- IP66 rated for dust and water ingress protection
- Powder-coated finish for corrosion resistance
- Suitable for indoor and outdoor use
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Industrial electrical switchboard enclosures
- Commercial electrical distribution panels
- Data and communication cabinet installations
- Control panel housing for factories and plants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable construction extends product lifespan, reducing replacement frequency
- Powder-coated finish is low-VOC and environmentally friendly
- IP66 rating helps protect sensitive electrical equipment, reducing risk of environmental contamination
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SF Enclosure with Mount Plate 2D 2000x1200x500mm is available for immediate purchase. Ideal for industrial and commercial electrical switchboard and control panel applications.
