Electrical Tester 1000V AC 200A | FieldSense Technology | Open Fork Design
Electrical tester with 1000V AC and 200A current measurement—ideal for troubleshooting motors and pumps. Built for efficiency, with FieldSense technology for contactless voltage and current display.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

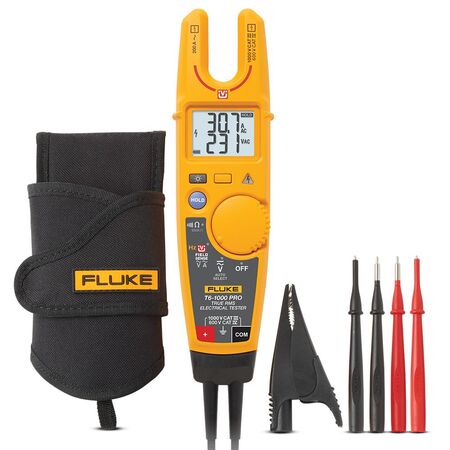

Product Name/Title: Electrical Tester 1000V AC 200A | FieldSense Technology | Open Fork Design
SKU: T6-1000
Alternatively Known As: Open Fork Electrical Tester, AC Voltage and Current Tester, FieldSense Electrical Meter, Fluke T6 Tester
Technical Specifications
- Voltage Measurement: 1 to 1000 V AC/DC
- Current Measurement: 0.1 to 200 A AC
- Frequency Measurement: 45 Hz to 66 Hz
- Resistance Measurement: 1 Ω to 100 kΩ
- Jaw Opening: 17.8 mm (0.7 inches), supports wire up to AWG 4/0
- Display: Backlit digital display with HOLD function
- Continuity Testing: Visual Continuity™ with green screen and audible beeper
- Dimensions (H x L x W): 200mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- Simultaneous voltage and current display for efficient troubleshooting
- FieldSense™ technology enables measurement without direct contact to live voltage
- Measures AC current from 0.1 to 200A
- Frequency measurement from 45 Hz to 66 Hz through the open fork
- HOLD button to freeze screen for easy reading
- Visual Continuity™ feature with green screen indication and audible beeper
- Voltage measurement from 1 to 1000 V AC or DC
- Resistance measurement from 1 Ω to 100 kΩ
- Works with wires up to AWG 4/0 (17.8 mm jaw opening)
- Backlit easy-to-read display
- Compatible with optional Fluke TPAK Magnetic Meter Hanger
Professional Installation Requirements
- Recommended to be used by qualified electricians or trained professionals for safe and accurate measurements.
Applications
- Electrical troubleshooting in industrial and commercial settings
- Testing motors, pumps, and other electrical equipment
- Measuring voltage and current in live wires safely
- Continuity testing in noisy or dark environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for multiple test leads, minimizing material waste
- Energy-efficient operation extends battery life and reduces battery waste
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Fluke T6-1000 PRO Electrical Tester is available now for immediate purchase. Ideal for professional electricians and technicians requiring safe and efficient voltage and current testing.
