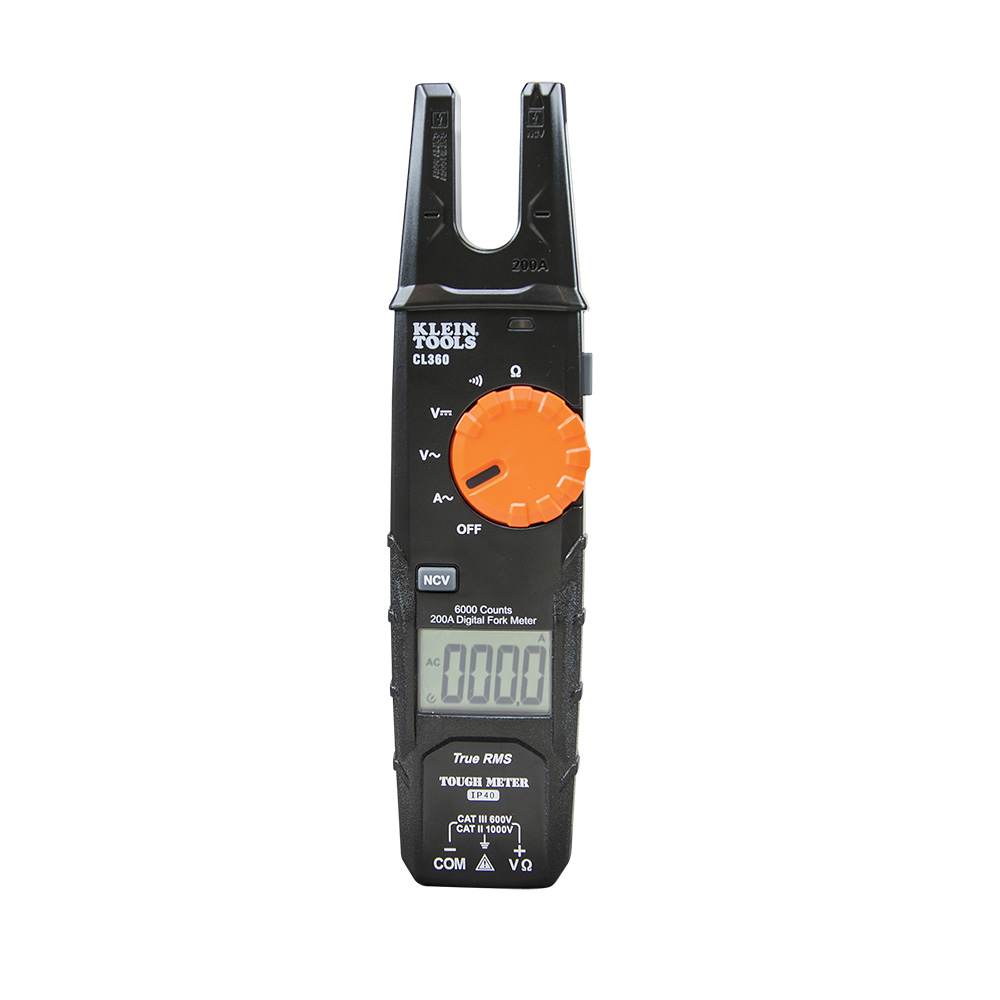

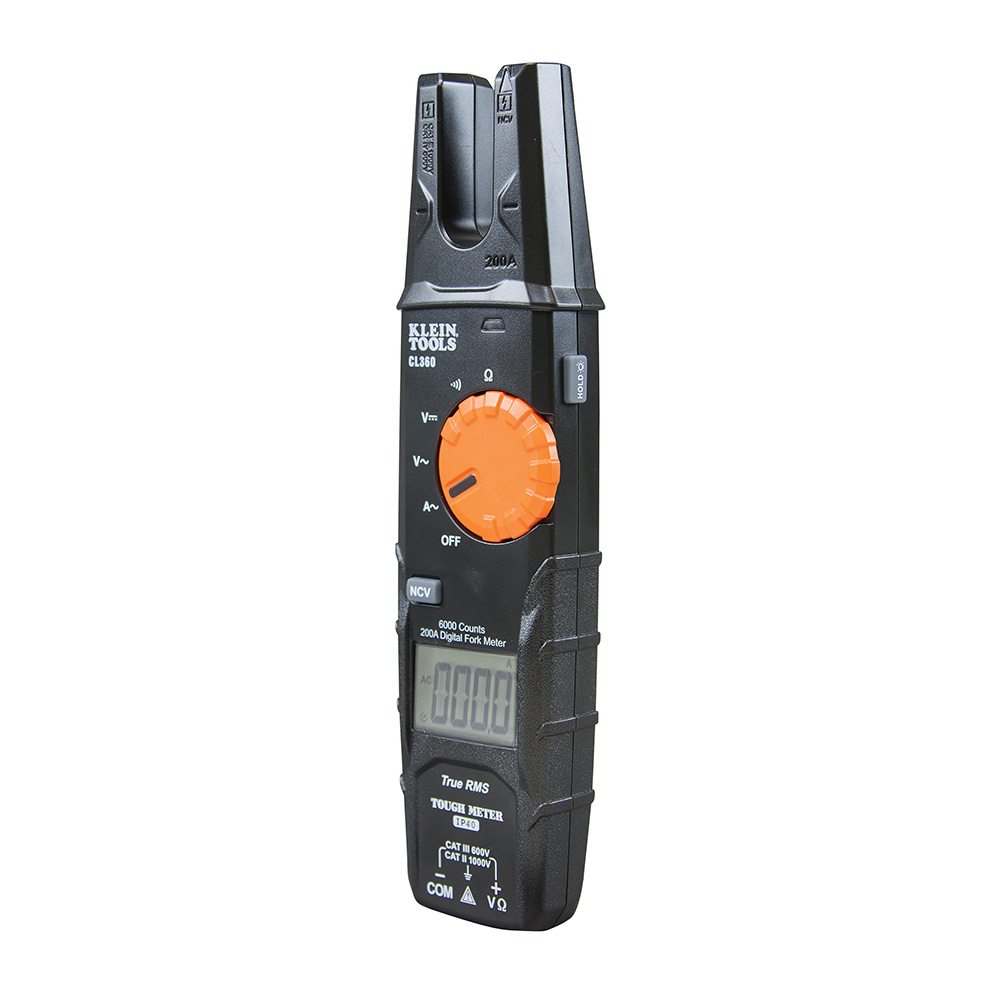

Electrical Tester Open-Jaw Fork Meter | 200 Amp AC Auto-Ranging | True RMS Measurement | by Wattmaster
The Electrical Tester Open-Jaw Fork Meter is designed for accurate AC current measurements up to 200 Amps, featuring auto-ranging True RMS technology. Ideal for electricians and technicians, it measures AC/DC voltage, resistance, and continuity, ensuring safety with its integrated non-contact voltage tester. With a rugged design and a back-lit 6,000-count LCD display, this meter is perfect for residential, office, and light-industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electrical Tester Open-Jaw Fork Meter | 200 Amp AC Auto-Ranging | True RMS Measurement | by Wattmaster
Brand: Wattmaster
SKU: A-CL360
Alternatively Known As: Open Jaw Clamp Meter, TRMS Clamp Meter, AC Current Tester, Non-Contact Voltage Tester, Digital Clamp Meter
Technical Specifications
- Measurement Type: True RMS AC current, AC/DC voltage, continuity, resistance
- Current Range: 200A AC
- Voltage Range: 600V AC, 1000V DC
- Resistance Range: 60MΩ
- Jaw Size: 0.58'' (1.5 cm) opening
- Display: 6,000-count back-lit LCD
- Safety Ratings: Jaw and Housing CAT IV 600 V / CAT III 1,000 V; Electrical CAT III 600 V / CAT II 1000 V
- Ingress Protection: IP40
- Battery: 2 x AAA
- Auto Shut Off: Yes, after 15 minutes
- Drop Protection: 9.9 feet (3 meters)
- Dimensions (H x L x W): 35mm x 213mm x 54mm
- Weight: 0.18 kg

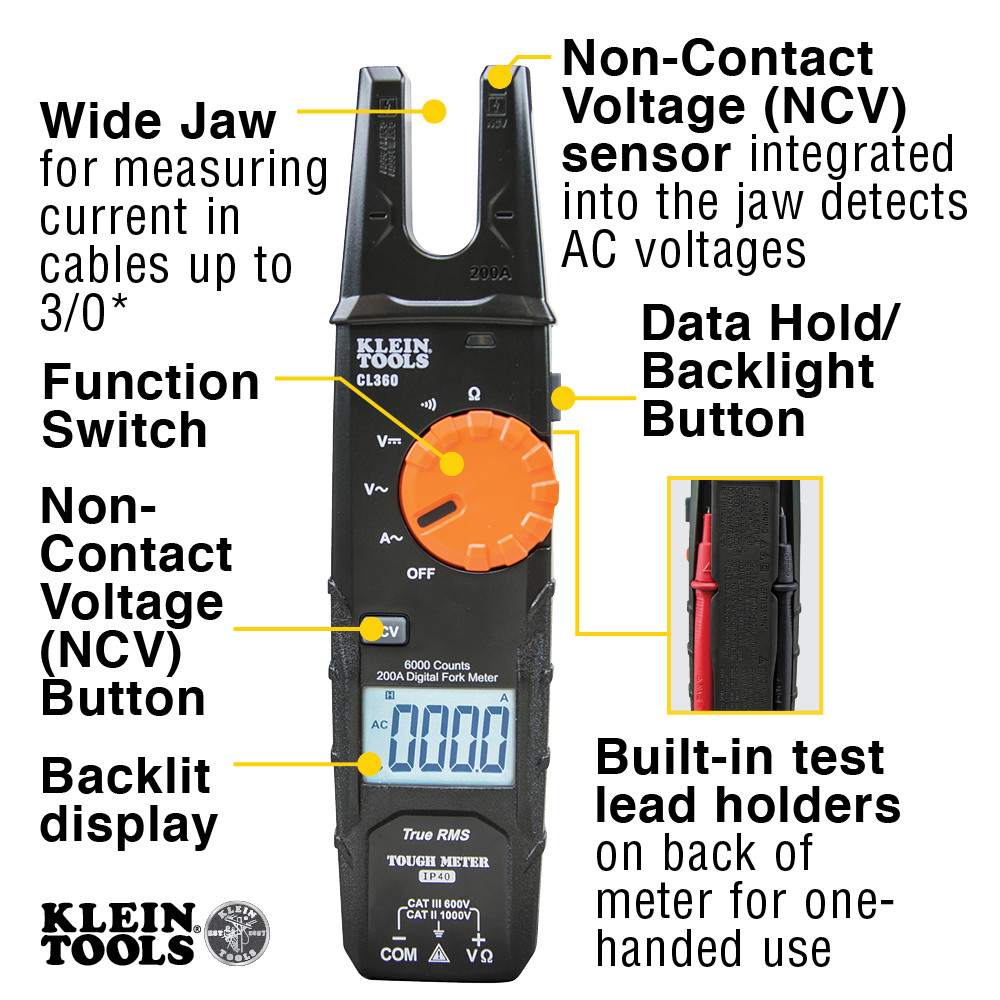

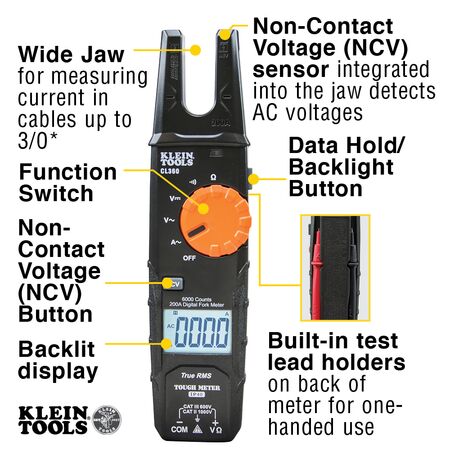

Key Features
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy

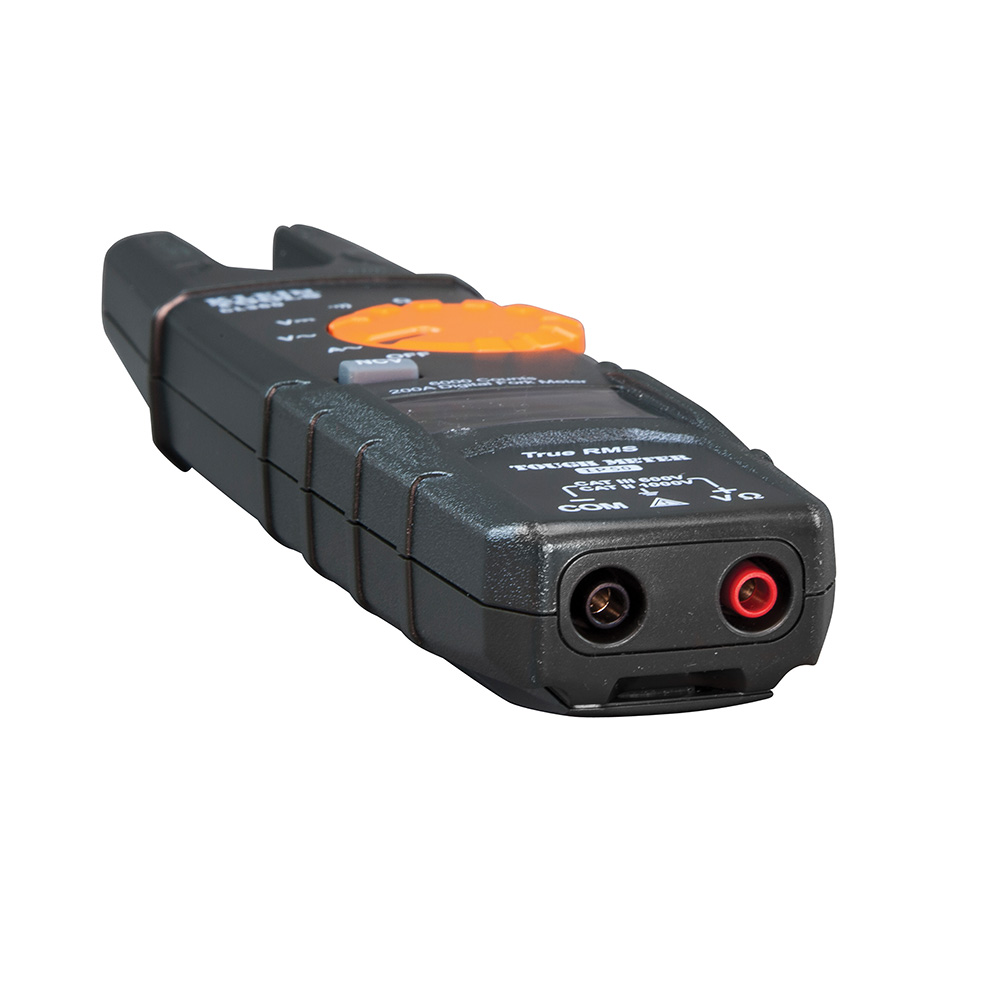

- Measures AC current via open jaw clamp and AC/DC voltage, resistance, continuity via test leads

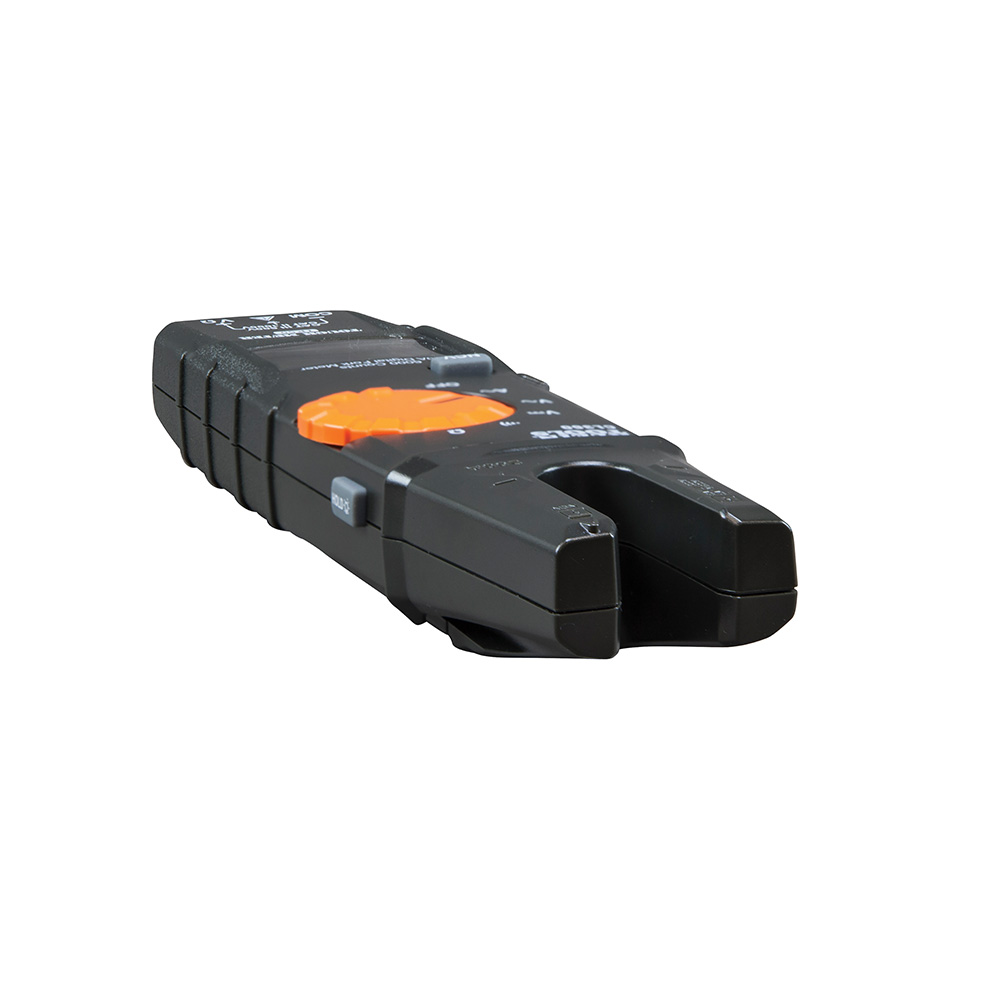

- Wide jaw opening accommodates cables up to 0.58'' (1.5 cm) diameter
- Integrated non-contact voltage (NCV) tester in the jaw
- Back-lit 6,000-count LCD display for clear readings
- Rugged design withstands 9.9-foot (3 m) drop
- Low-battery indicator and auto shut-off after 15 minutes of non-use
- CAT IV 600 V / CAT III 1,000 V rated for jaw and housing; CAT III 600 V / CAT II 1000 V electrical safety ratings

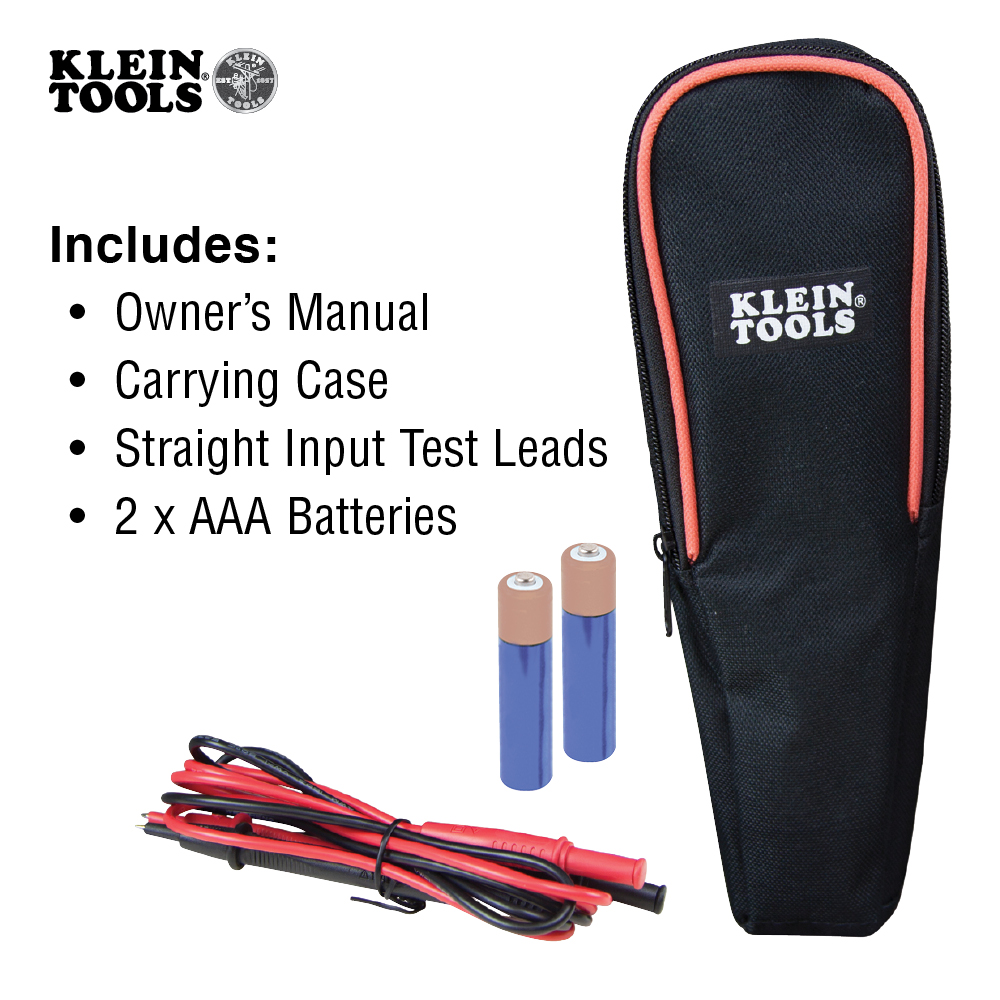

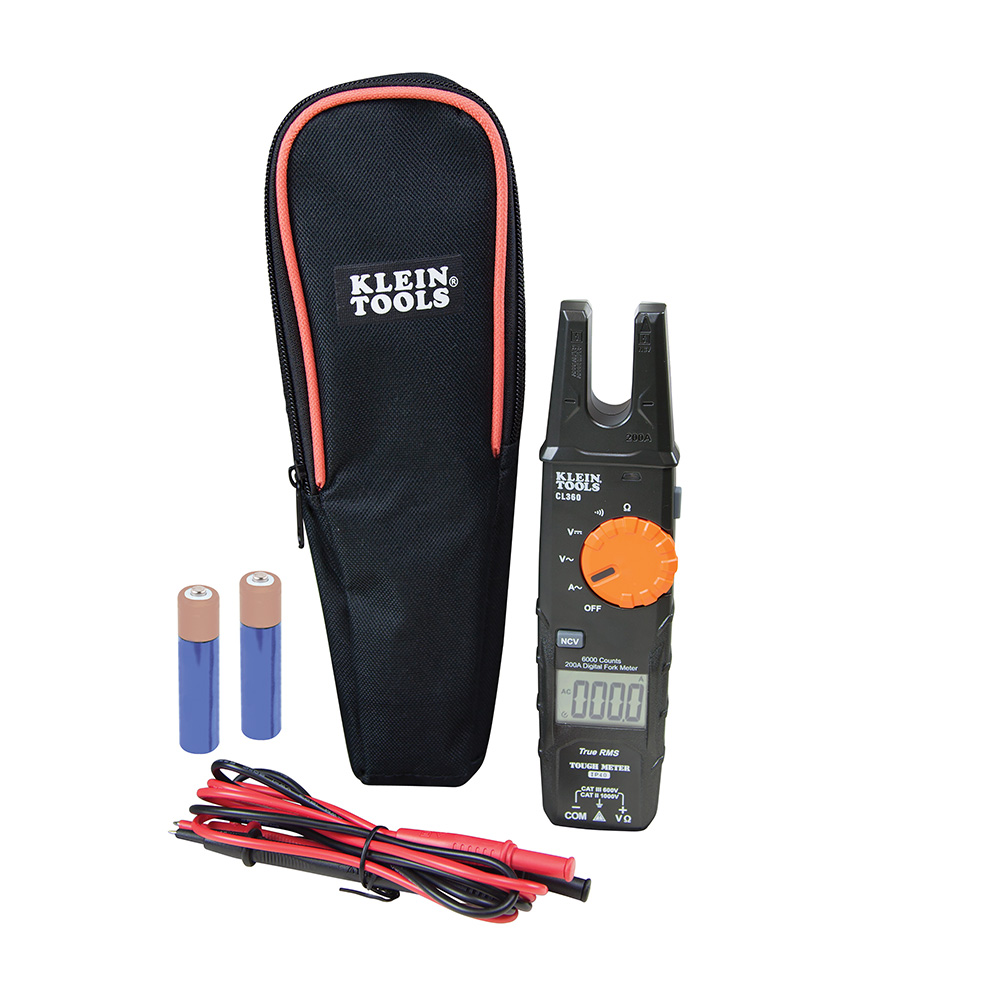

- Includes carrying case, test leads, instruction manual, and 2 x AAA batteries
Professional Installation Requirements
- Professional use recommended; users should have electrical safety training and follow all safety instructions and local electrical codes.
Applications

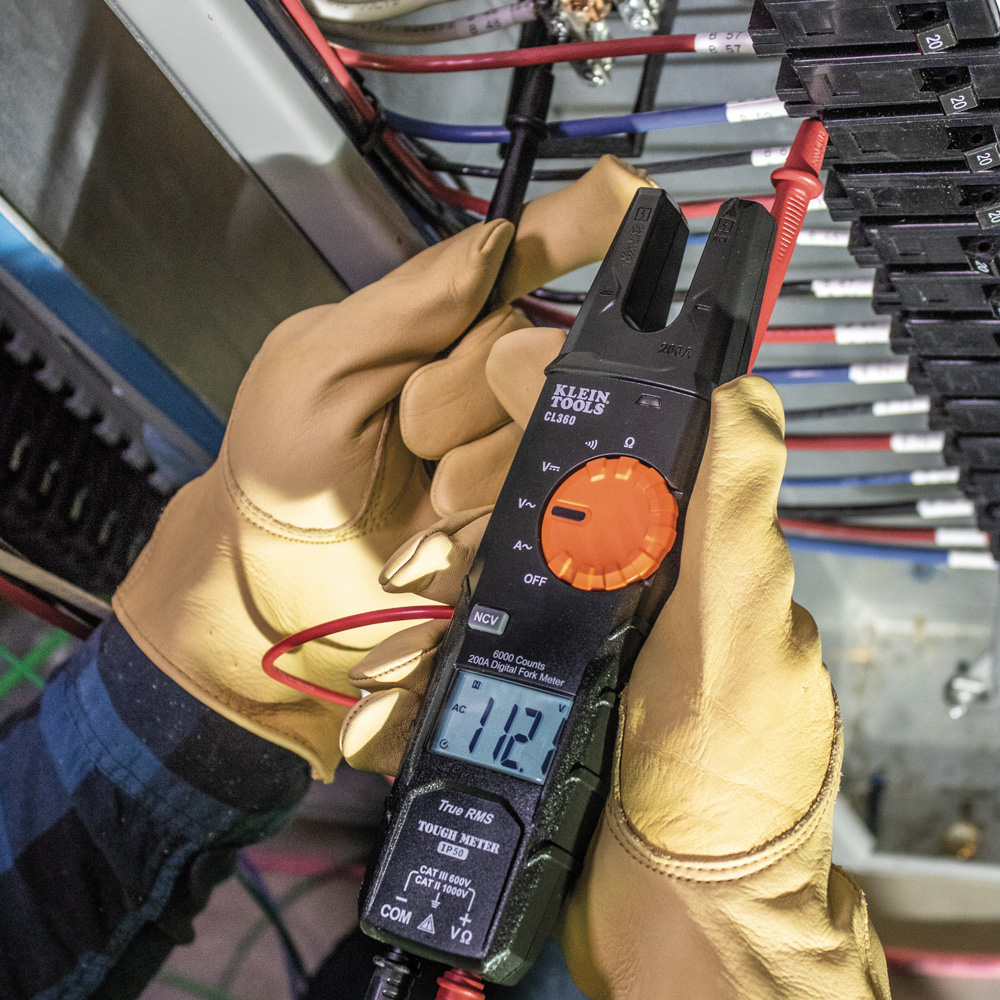

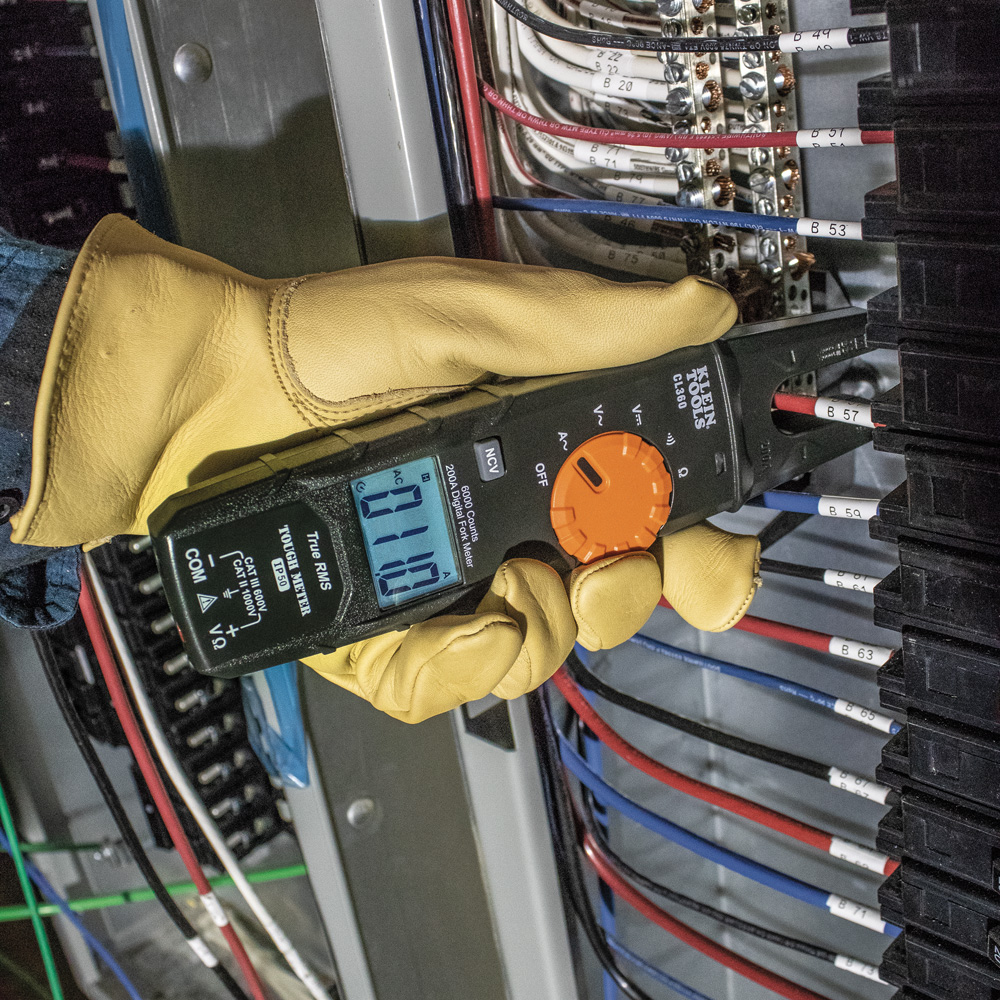

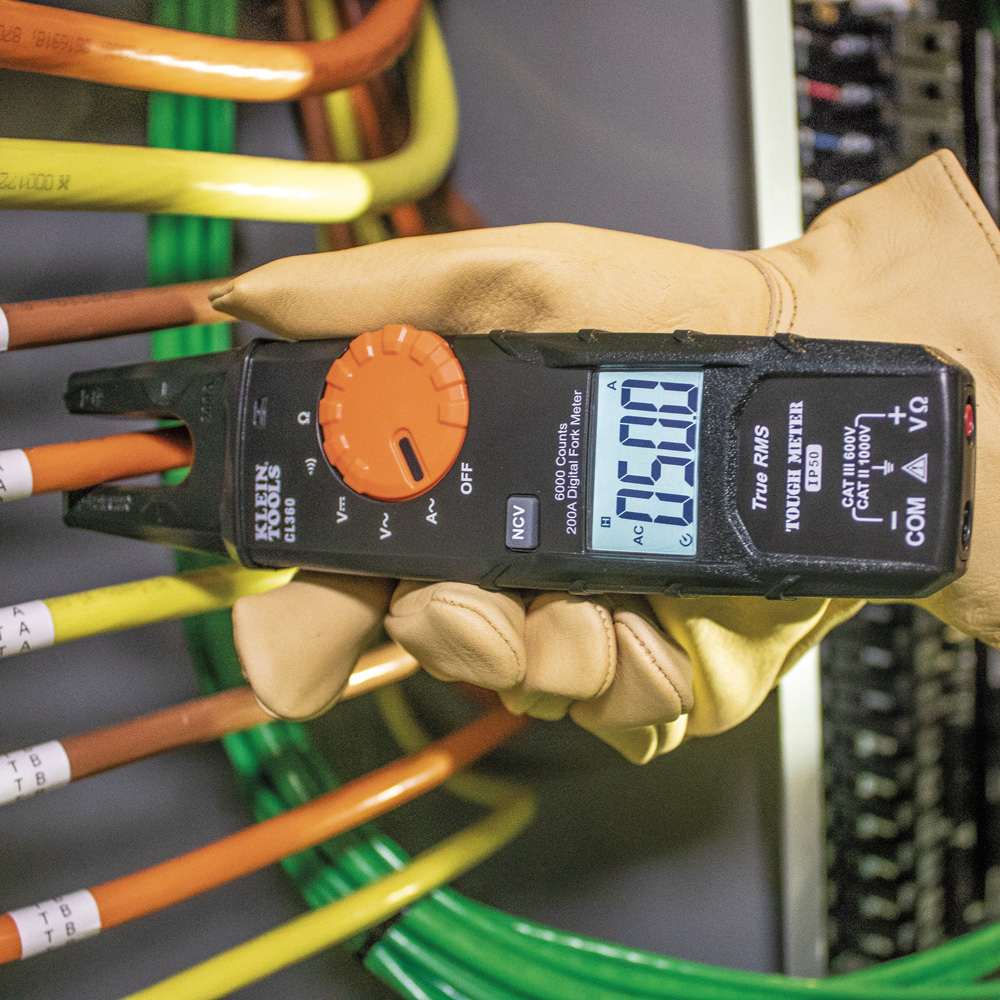

- Electrical testing and measurement in residential, office, and light-industrial environments
- Measuring AC current, AC/DC voltage, continuity, and resistance
- Non-contact voltage detection for safety checks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Auto shut-off feature conserves battery life reducing battery waste
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster CL360 Electrical Tester Open-Jaw Fork Meter is available for immediate purchase, ideal for electricians and technicians requiring accurate current and voltage measurements in various environments.
