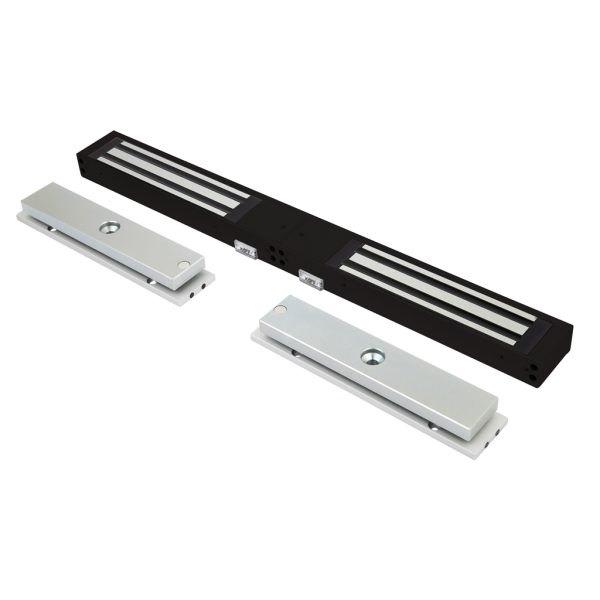

Electro Magnetic Double Maglock | 280kg Holding Force | Slim Black Design | LSS & DSS Monitoring | by Dicker Data
Electro Magnetic Double Maglock with a powerful 280kg holding force and a sleek black design—perfect for high-security access control applications. Built for commercial and industrial environments, it features LSS and DSS monitoring for enhanced security and reliability. The highly visible LED status light indicates lock status, ensuring peace of mind for users.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electro Magnetic Double Maglock | 280kg Holding Force | Slim Black Design | LSS & DSS Monitoring | by Dicker Data
Brand: Dicker Data
SKU: EM3500DM-BLK
Alternatively Known As: Electro Magnetic Lock, Maglock, Double Magnetic Lock, Monitored Maglock, Security Door Lock
Technical Specifications
- Holding Strength: Up to 280kg
- Voltage/Current: Dual Voltage 12/24VDC; 12VDC = 530mA x 2, 24VDC = 260mA x 2
- Approvals: Up to 4 hour fire rated to Australian Standard, CE & C-TICK certified
- LSS Monitoring: Lock Status Sensor (Hall Effect)
- DSS Monitoring: Door Status Sensor (Reed Switch)
- LED Light Status: Indicates locked or unlocked status
- Operational Temperature Range: -20°C to 60°C
- Colour: Black
- Dimensions (H x L x W): 40mm x 40mm x 250mm
- Weight: 3.5 kg
Key Features
- Up to 280kg holding force for strong security
- Black anodised slim body design
- Built-in Hall Effect Sensor (LSS) for lock/unlock status monitoring
- Built-in reed switch (DSS) for door open/closed status monitoring
- Highly visible red/green LED status light indicating lock status
- Anti-tamper fixing plate to prevent hostile attacks on fixing bolts
Professional Installation Requirements
- Professional installation by a qualified security systems technician or licensed electrician is recommended to ensure proper integration with access control systems and compliance with safety standards.
Applications
- Access control systems for commercial and industrial doors
- Security doors requiring monitored locking status
- High security entry points in offices, warehouses, and restricted areas
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Up to 4 hour fire rated to Australian Standard
Environmental Benefits
- Operational temperature range from -20°C to 60°C ensures durability and reliability in various environments
- Energy efficient dual voltage operation (12/24VDC) reduces power consumption
Warranty Information
25 years warranty as specified by the manufacturer.
Available Now
The LOX EM3500DM-BLK Electro Magnetic Double Maglock is available for immediate purchase, ideal for high security access control applications in commercial and industrial environments.
