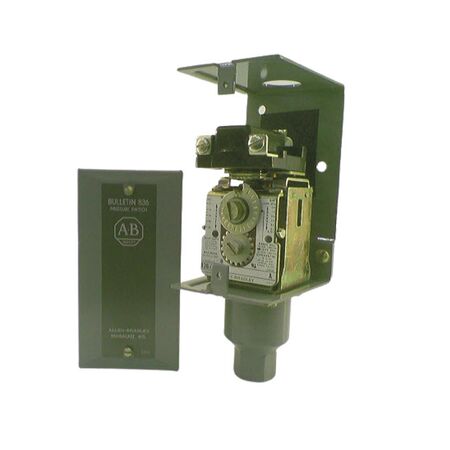

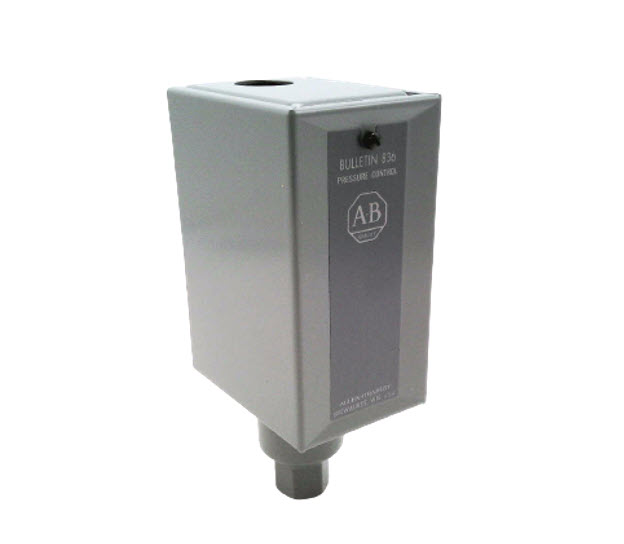

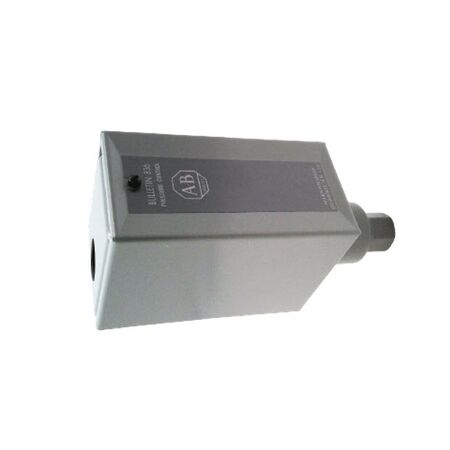

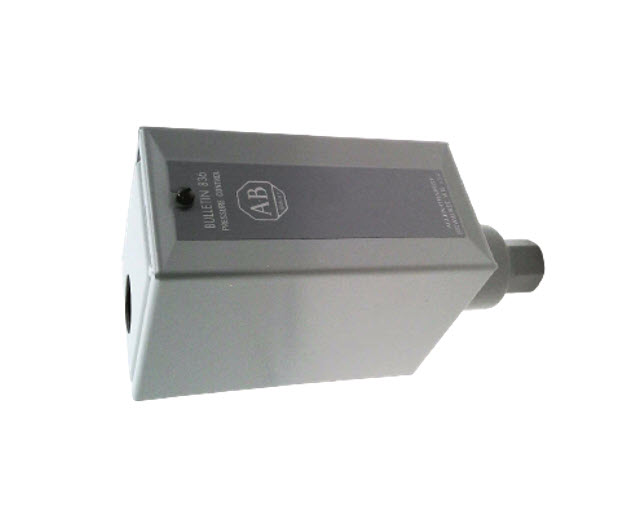

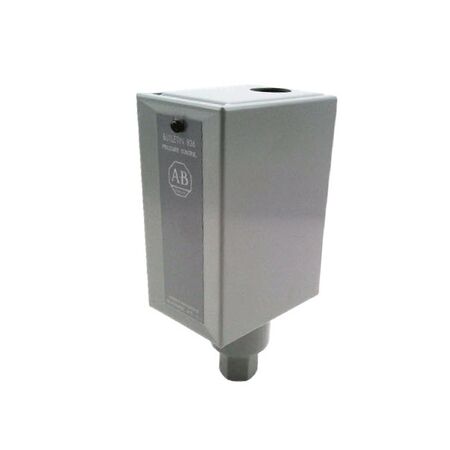

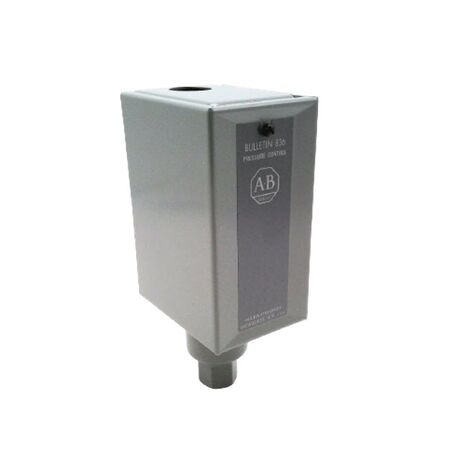

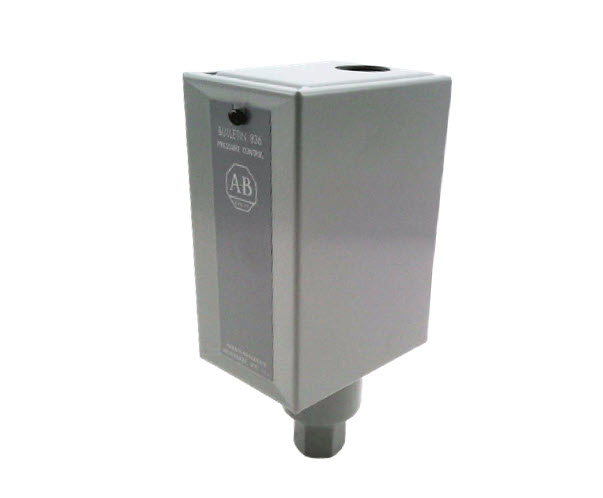

Electro-Mechanical Pressure Switch 836C5A | 0-190 PSI Range | NEMA 1 Enclosure | @Each by Allen-Bradley

BRAND: Allen-Bradley
SKU: 836C5A
$622.70 List price: $775.90
+ −
30 Days Return Delivery Options
Electro-Mechanical Pressure Switch 836C5A | 0-190 PSI Range | NEMA 1 Enclosure | @Each by Allen-Bradley

Product Name/Title: Allen-Bradley 836C5A Electro-Mechanical Pressure Switch

Brand: Allen-Bradley

SKU: 836C5A

Alternatively Known As: Pressure Switch 836 Series, Allen-Bradley Pressure Sensor, Electro-Mechanical Pressure Controller

Technical Specifications
  • Pressure Range: 0 to 190 PSI maximum
  • Surge Pressure: 210 PSI maximum
  • Vacuum Range: 2 to 80 PSI HG
  • Differential Pressure: 1 to 12 PSI
  • Enclosure Rating: NEMA 1
  • Connection Type: 1/4 inch FNPT
  • Operating Temperature: -22 to 150 °F
  • Bellows Material: External copper alloy
  • Dimensions (H x L x W): 90mm x 50mm x 70mm
  • Weight: 0.5 kg
Key Features
  • Electro-mechanical pressure switch
  • Style C design
  • Maximum pressure: 190 PSI
  • Surge pressure: 210 PSI maximum
  • Vacuum range: 2 - 80 PSI HG
  • Differential range: 1 - 12 PSI
  • NEMA 1 rated enclosure
  • External copper alloy bellows
  • Operating temperature range: -22 to 150 °F
  • 1/4 inch FNPT connection
Professional Installation Requirements
  • Installation should be performed by a qualified technician to ensure proper pressure switch setup and safety compliance.
Applications
  • Industrial pressure monitoring and control
  • HVAC systems
  • Pneumatic and hydraulic systems
  • General machinery requiring pressure switch protection
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Supports efficient system pressure control to optimize energy use
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 836C5A Electro-Mechanical Pressure Switch is available for immediate purchase, ideal for industrial and HVAC pressure control applications.
