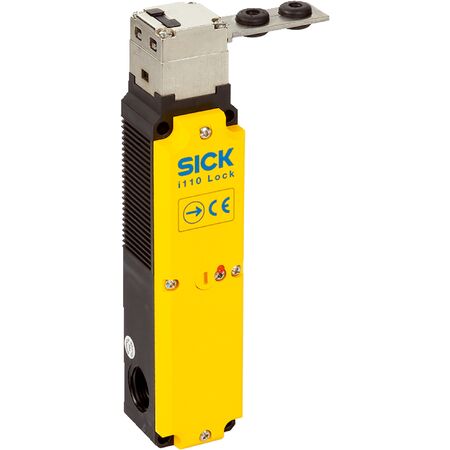

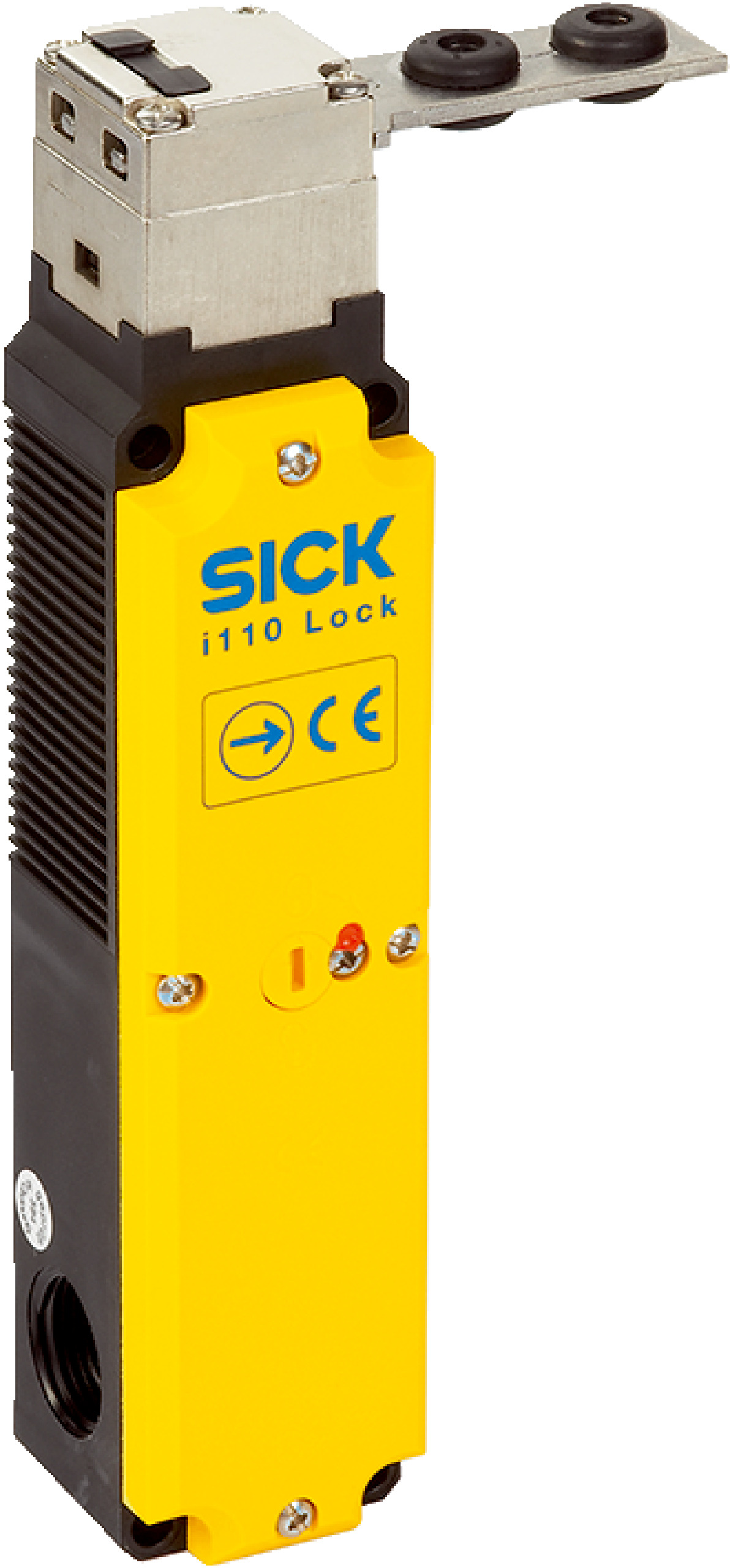

Electro-Mechanical Safety Interlock | Power to Lock Mechanism | IP67 Rated | by SICK
The Electro-Mechanical Safety Interlock i110-E0313S06 features a power to lock mechanism and positive action monitoring contacts, making it ideal for industrial safety door locking and machine guarding. With a robust IP67 rating for dust and water protection, this safety switch ensures reliable operation in demanding environments, supporting energy efficiency with low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to lock
- Positive action N/C solenoid monitoring contacts: 2
- N/O solenoid monitoring contacts: 0
- Positive action N/C door monitoring contacts: 1
- N/O door monitoring contacts: 1
- Locking force Fmax: 2,500 N (EN ISO 14119)
- Locking force FZh: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 45 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 5
- Approach speed: ≤ 20 m/min
- B10d parameter: 5 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 3 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Metal
- Mechanical life: 100,000 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.5 kg
Key Features
- Electro-mechanical sensor principle with power to lock mechanism
- Positive action normally closed solenoid monitoring contacts (2)
- Positive action normally closed door monitoring contact (1) and normally open door monitoring contact (1)
- Locking force up to 2,500 N compliant with EN ISO 14119
- Actuation force ≥ 35 N and retaining force ≤ 45 N
- Actuation frequency up to 1,200 per hour with 5 actuation directions
- Approach speed up to 20 m/min
- Slow action switching element with rated operating current of 4 A at 230 V AC and 24 V DC
- IP67 rated enclosure for protection against dust and water
- Housing made of glass-fiber reinforced thermoplastic and metal actuator head
- Mechanical life of 100,000 switching cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety door locking
- Machine guarding
- Access control in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption (≤ 8 W) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK i110-E0313S06 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and machine guarding applications.
