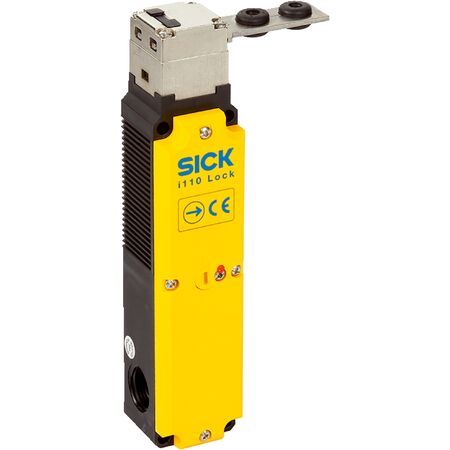

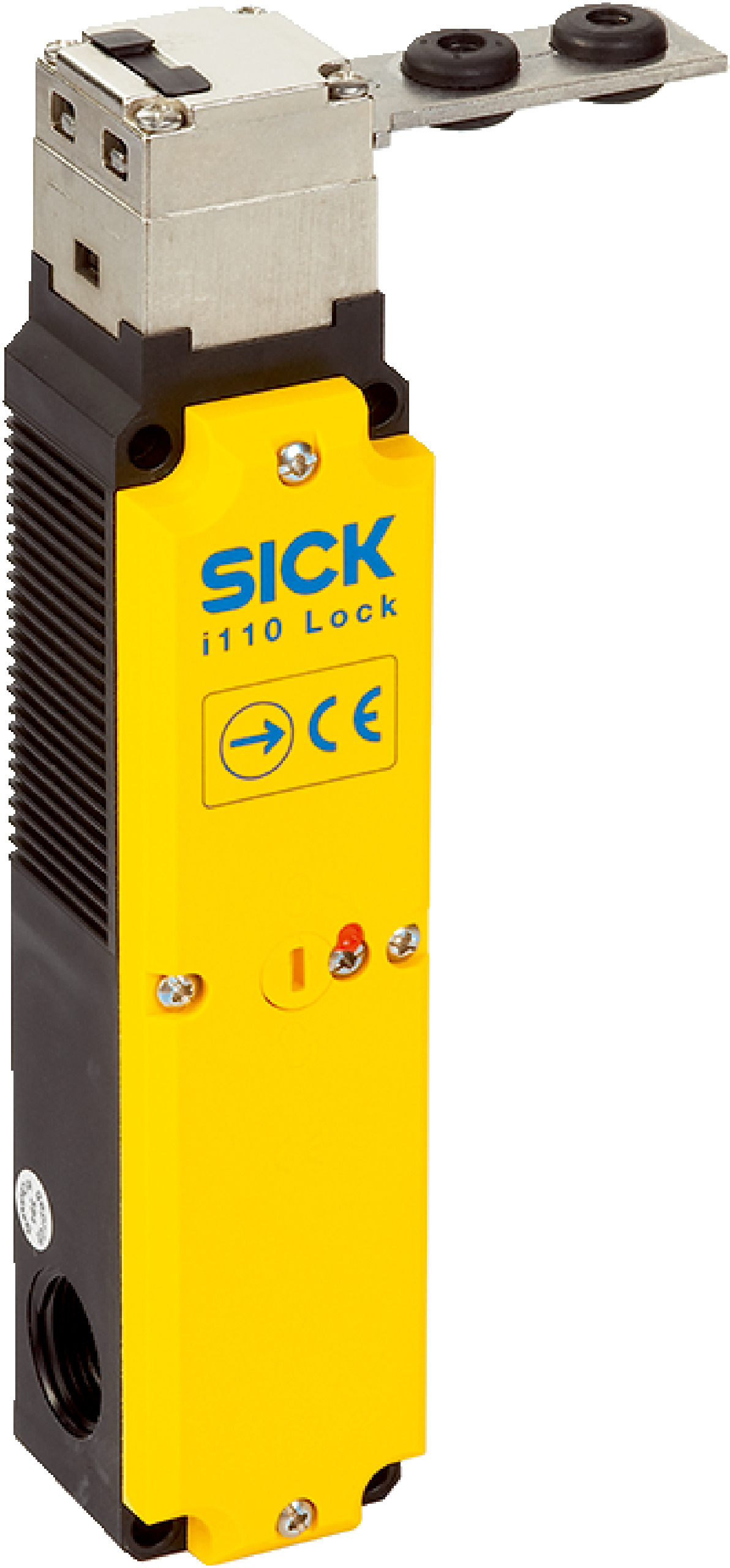

Electro-Mechanical Safety Interlock | Power to Lock | IP67 Rated | by SICK
The Electro-Mechanical Safety Interlock i110-E0453 is designed for industrial safety applications, featuring a power to lock mechanism and IP67 rated enclosure for harsh environments. With positive action normally closed contacts and a locking force of up to 2,500 N, it ensures reliable machine guarding and access control, making it ideal for hazardous machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to lock
- Positive action N/C solenoid monitoring contacts: 2
- Positive action N/C door monitoring contacts: 2
- Locking force Fmax: 2,500 N (EN ISO 14119)
- Locking force FZh: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 5
- Approach speed: ≤ 20 m/min
- B10d parameter: 5 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 3 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Metal
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.5 kg
Key Features
- Electro-mechanical sensor principle with power to lock
- Positive action normally closed solenoid monitoring contacts (2)
- Positive action normally closed door monitoring contacts (2)
- Locking force up to 2,500 N (EN ISO 14119)
- Actuation force ≥ 35 N and retaining force ≤ 30 N
- Actuation frequency up to 1,200 per hour
- Five actuation directions supported
- IP67 rated enclosure for harsh environments
- Slow action switching element with electro-mechanical contacts
- Rated operating current 4 A at 230 V AC and 24 V DC
- Mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety locking applications
- Machine guarding and access control
- Safety interlock for hazardous machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 8 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK i110-E0453 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and machine guarding applications.
