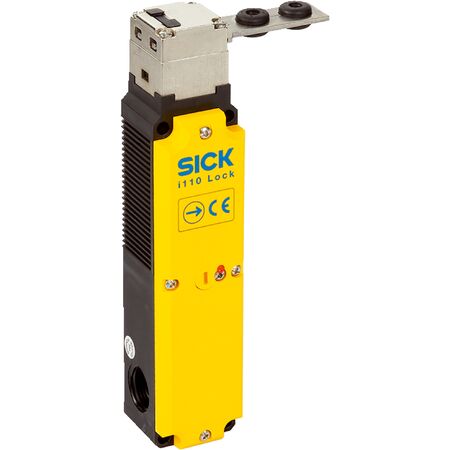

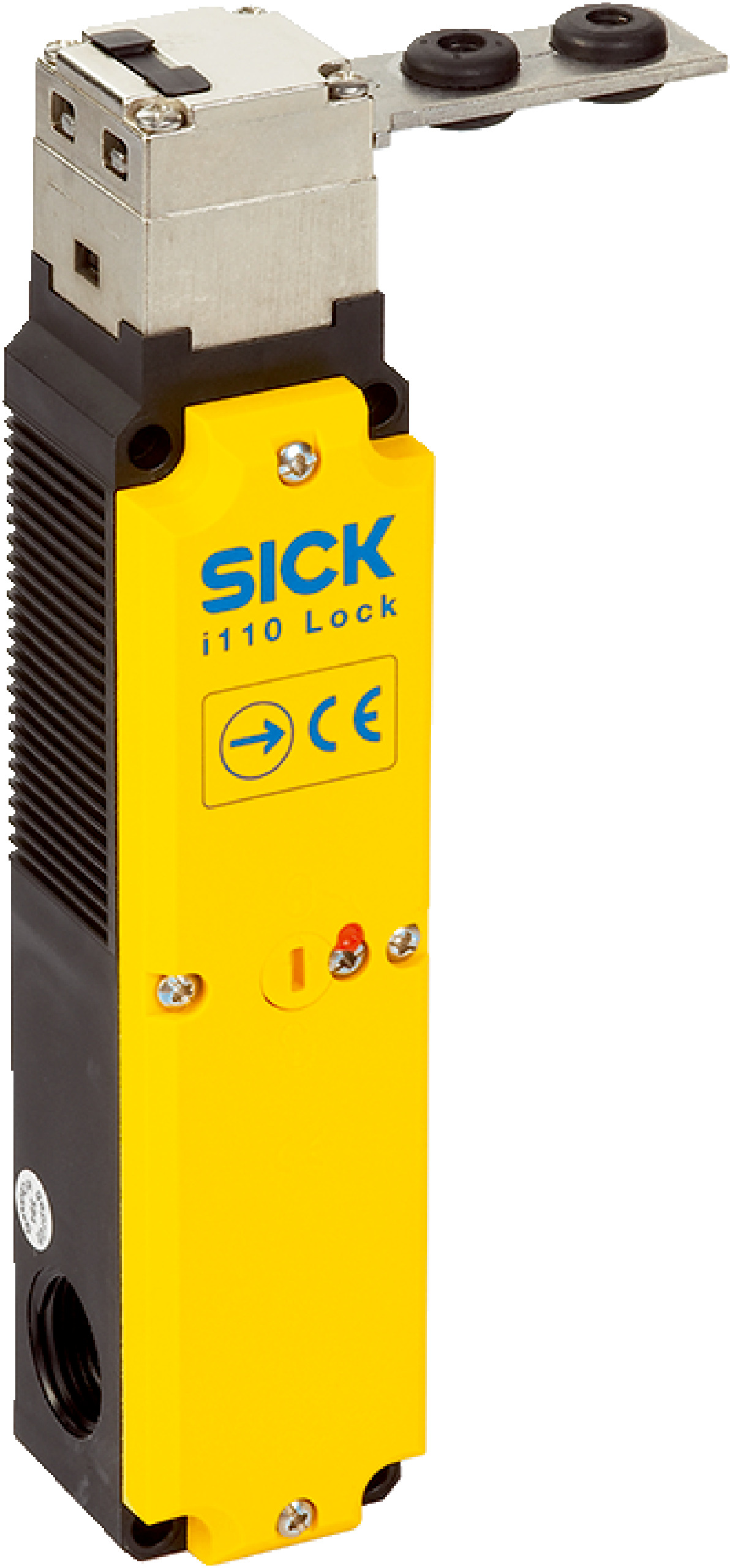

Electro-Mechanical Safety Lock | 2500 N Locking Force | IP67 Rated | by SICK
The Electro-Mechanical Safety Lock i110-E0253 features a robust locking force of up to 2,500 N, making it ideal for industrial safety applications. With an IP67 rating for dust and water protection, this lock ensures reliable performance in harsh environments. Designed for machine guarding and access control, it offers a mechanical life of 1 million switching cycles, ensuring long-lasting safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking force Fmax: 2,500 N (EN ISO 14119)
- Locking force FZh: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 5
- Approach speed: ≤ 20 m/min
- B10d parameter: 5 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Connection type: Cable gland, 3 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Metal
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Electro-mechanical sensor principle with power to lock mechanism
- Locking force up to 2,500 N (EN ISO 14119)
- Positive action N/C solenoid monitoring contacts: 2
- N/O door monitoring contacts: 1
- Slow action switching element with rated operating current of 4 A at 230 V AC and 24 V DC
- IP67 rated enclosure for protection against dust and water
- Mechanical life of 1 million switching cycles
- Actuation frequency up to 1,200 per hour
- Low coding level actuator coding (EN ISO 14119)
- Safe state depends on connected safety-related logic unit
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety locking applications
- Machine guarding and access control
- Safety interlock for hazardous areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK i110-E0253 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and machine guarding applications.
