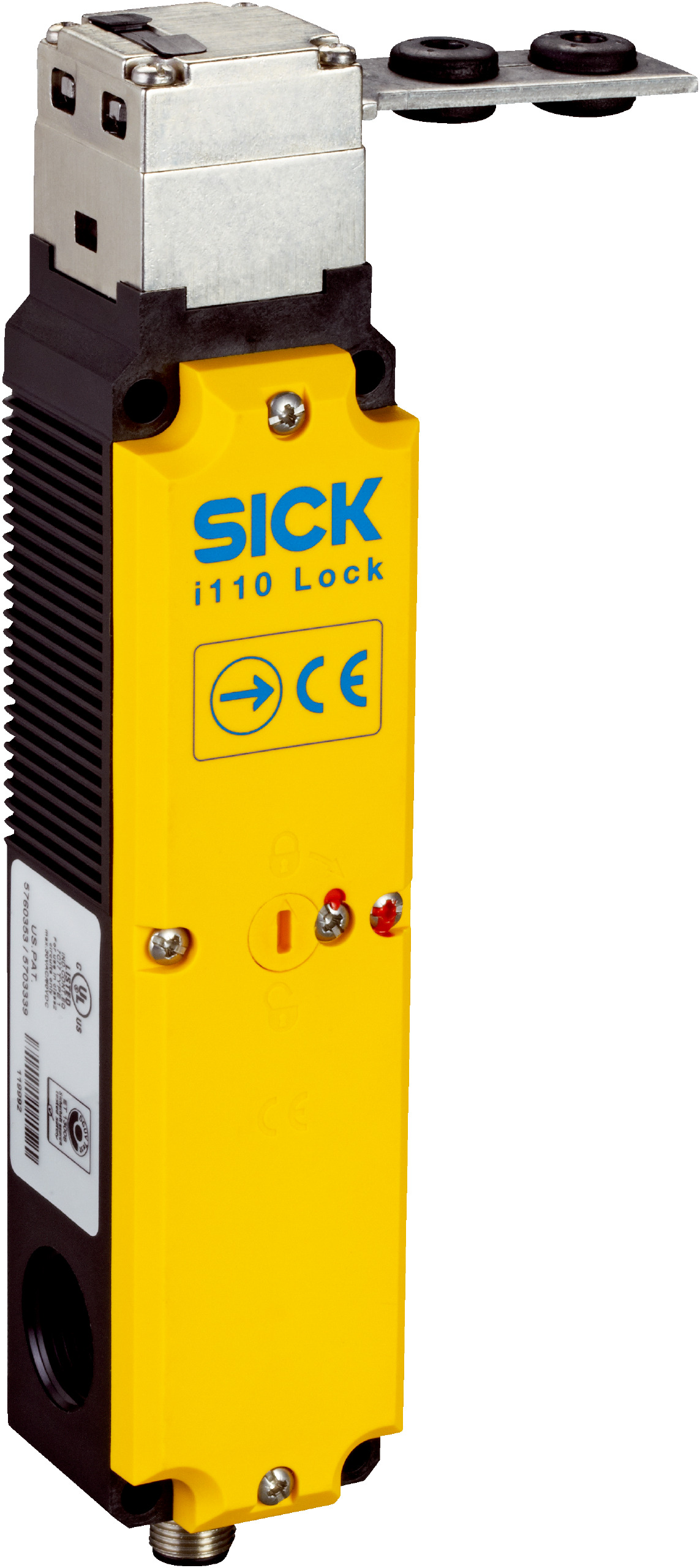

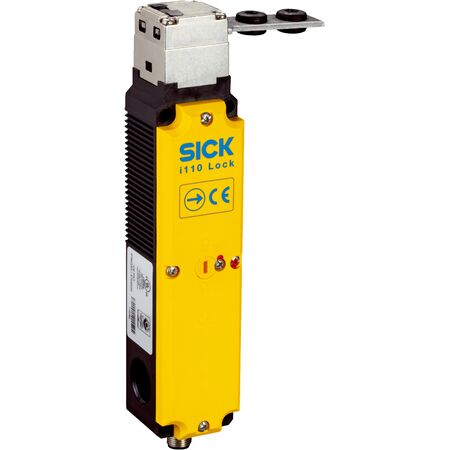

Electro-Mechanical Safety Lock | 2500 N Locking Force | IP67 Rated | by SICK
The Electro-Mechanical Safety Lock i110-E0354 features a robust locking force of up to 2,500 N, making it ideal for industrial safety door locking and monitoring. With an IP67 rated enclosure, it ensures protection against dust and water, while its operating temperature range of -20°C to +55°C supports diverse applications in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking force Fmax: 2,500 N (EN ISO 14119)
- Locking force FZh: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 5
- Approach speed: ≤ 20 m/min
- B10d parameter: 5 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: With Flexi Loop (with diagnostics)
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Brass
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 1 A (24 V AC/DC)
- Rated insulation voltage Ui: 30 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 1 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Metal
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: -20°C to +55°C
- Storage temperature: -20°C to +55°C
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Electro-mechanical sensor principle with power to lock mechanism
- Locking force up to 2,500 N compliant with EN ISO 14119
- Positive action N/C solenoid monitoring contacts and door monitoring contacts
- Supports safe series connection with Flexi Loop diagnostics
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -20°C to +55°C
- Plug connector M12, 8-pin with brass coupling nut
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical safety standards to ensure compliance and proper function.
Applications
- Industrial safety door locking and monitoring
- Process protection in manufacturing environments
- Safety interlock for machinery access control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤ 8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i110-E0354 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety door locking and process protection applications.
