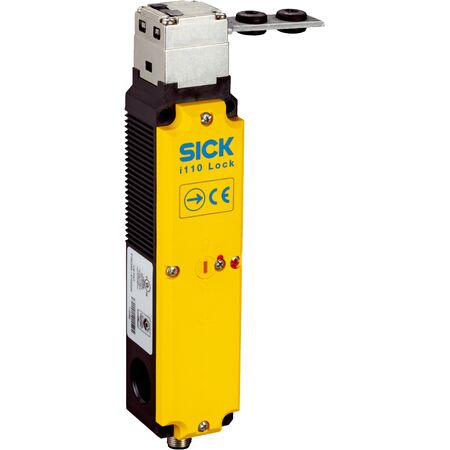

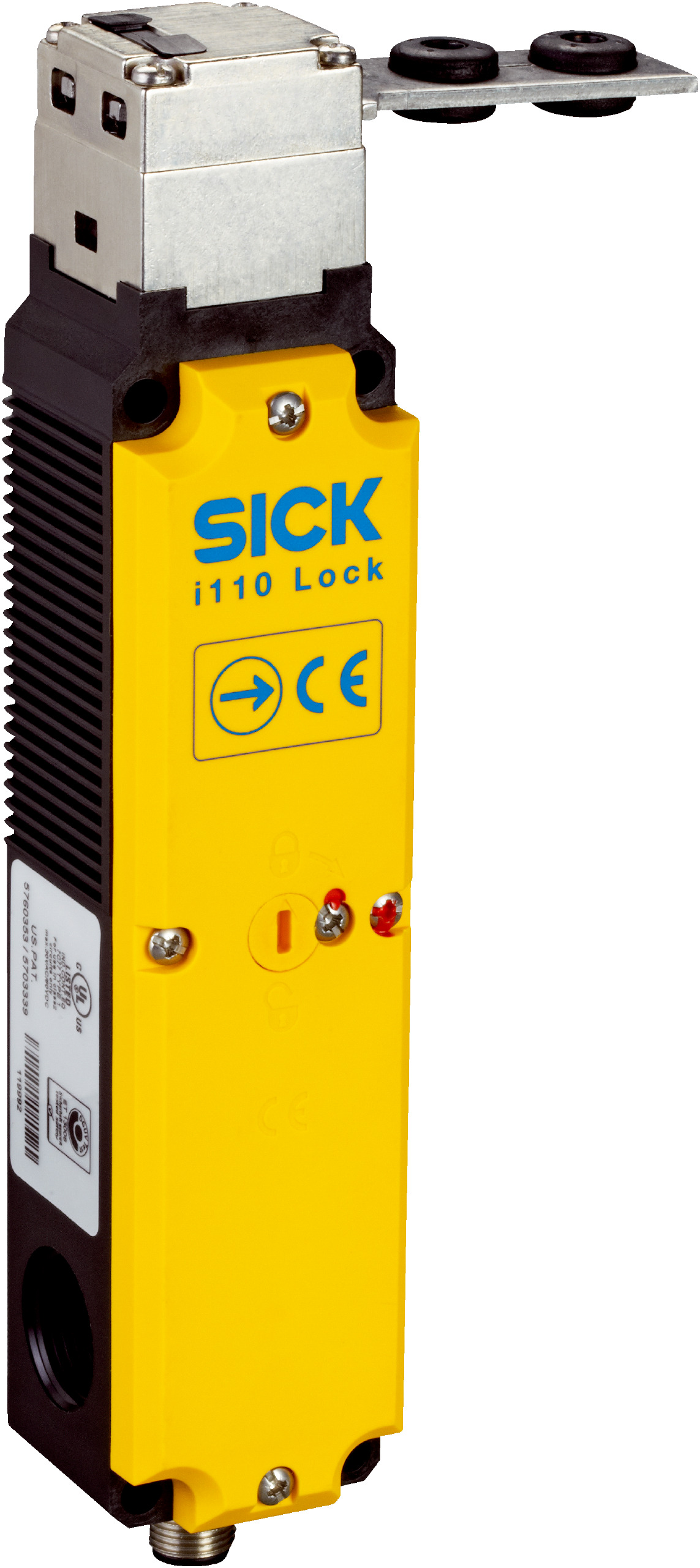

Electro-Mechanical Safety Lock | Power to Lock Mechanism | IP67 Rated | 2500N Locking Force | by SICK
The Electro-Mechanical Safety Lock i110-E0454 features a power to lock mechanism and an IP67 rated enclosure, making it ideal for industrial safety interlocking and access control in hazardous areas. With a locking force of up to 2,500 N and positive action normally closed solenoid monitoring contacts, this switch ensures reliable operation in demanding environments, supporting actuation from five directions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to lock
- Positive action N/C solenoid monitoring contacts: 2
- Locking force Fmax: 2,500 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 5
- Approach speed: ≤ 20 m/min
- B10d parameter: 5 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in fault: No internal fault detection; fault detection by connected safety logic
- Connection type: Plug connector, M12, 8-pin with brass coupling nut
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 1 A (24 V AC/DC)
- Rated insulation voltage Ui: 30 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 1 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Switch-on time of magnet: 100%
- Mechanical life: 1 x 10^6 switching cycles
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Metal
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Electro-mechanical sensor principle with power to lock mechanism
- Positive action normally closed solenoid monitoring contacts (2)
- Locking force up to 2,500 N compliant with EN ISO 14119
- Supports actuation from 5 directions with approach speed up to 20 m/min
- Safe series connection with Flexi Loop including diagnostics
- IP67 rated enclosure for protection against dust and water
- Glass-fiber reinforced thermoplastic housing with metal actuator head
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical safety standards.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety door monitoring in manufacturing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long mechanical life reduce replacement frequency and waste
- Low power consumption of ≤ 8 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK i110-E0454 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
