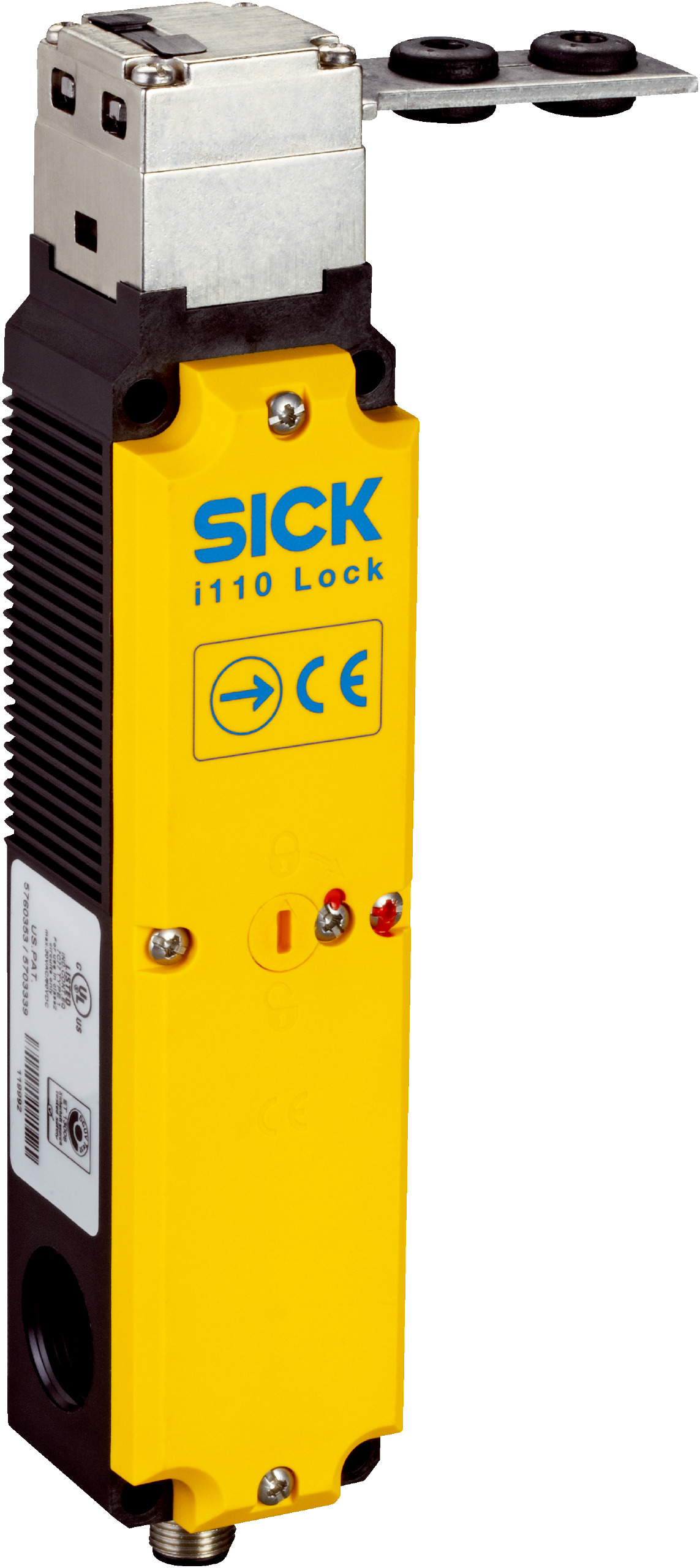

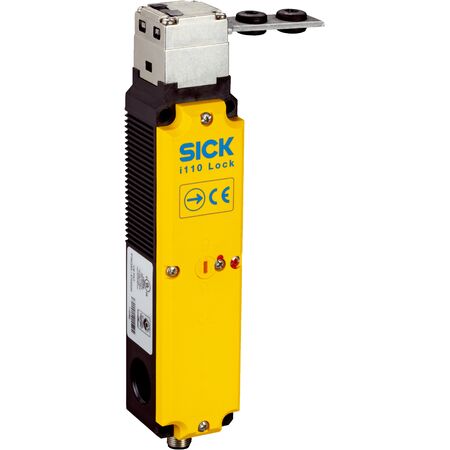

Electro-Mechanical Safety Switch i110-M0454 | IP67 Rated | Power to Release Locking | 2500 N Locking Force | by SICK
The Electro-Mechanical Safety Switch i110-M0454 is designed for secure access control in industrial safety systems. With an IP67 rated enclosure, it offers protection against dust and water, while the power to release locking mechanism ensures reliable operation. Ideal for machinery safety interlocking and automation systems, this switch features two positive action normally closed solenoid monitoring contacts for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to release
- Positive action N/C solenoid monitoring contacts: 2
- Positive action N/C door monitoring contacts: 1
- Locking force Fmax: 2,500 N (EN ISO 14119)
- Locking force FZh: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 5
- Approach speed: ≤ 20 m/min
- B10d parameter: 5 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Brass
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 1 A (24 V AC/DC)
- Rated insulation voltage Ui: 30 V
- Rated impulse withstand voltage Uimp: 1,500 V AC
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 1 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Switch-on time of magnet: 100%
- Mechanical life: 1 x 10^6 switching cycles
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Metal
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Two positive action normally closed solenoid monitoring contacts
- One positive action normally closed door monitoring contact
- Locking force up to 2,500 N compliant with EN ISO 14119
- Supports actuation frequency up to 1,200 per hour
- Five actuation directions supported
- IP67 rated enclosure for protection against dust and water
- Plug connector M12, 8-pin with brass coupling nut
- Safe series connection with Flexi Loop including diagnostics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical safety standards.
Applications
- Industrial safety systems requiring secure access control
- Machinery and equipment safety interlocking
- Automation systems with safety monitoring needs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤ 8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK i110-M0454 Electro-Mechanical Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
