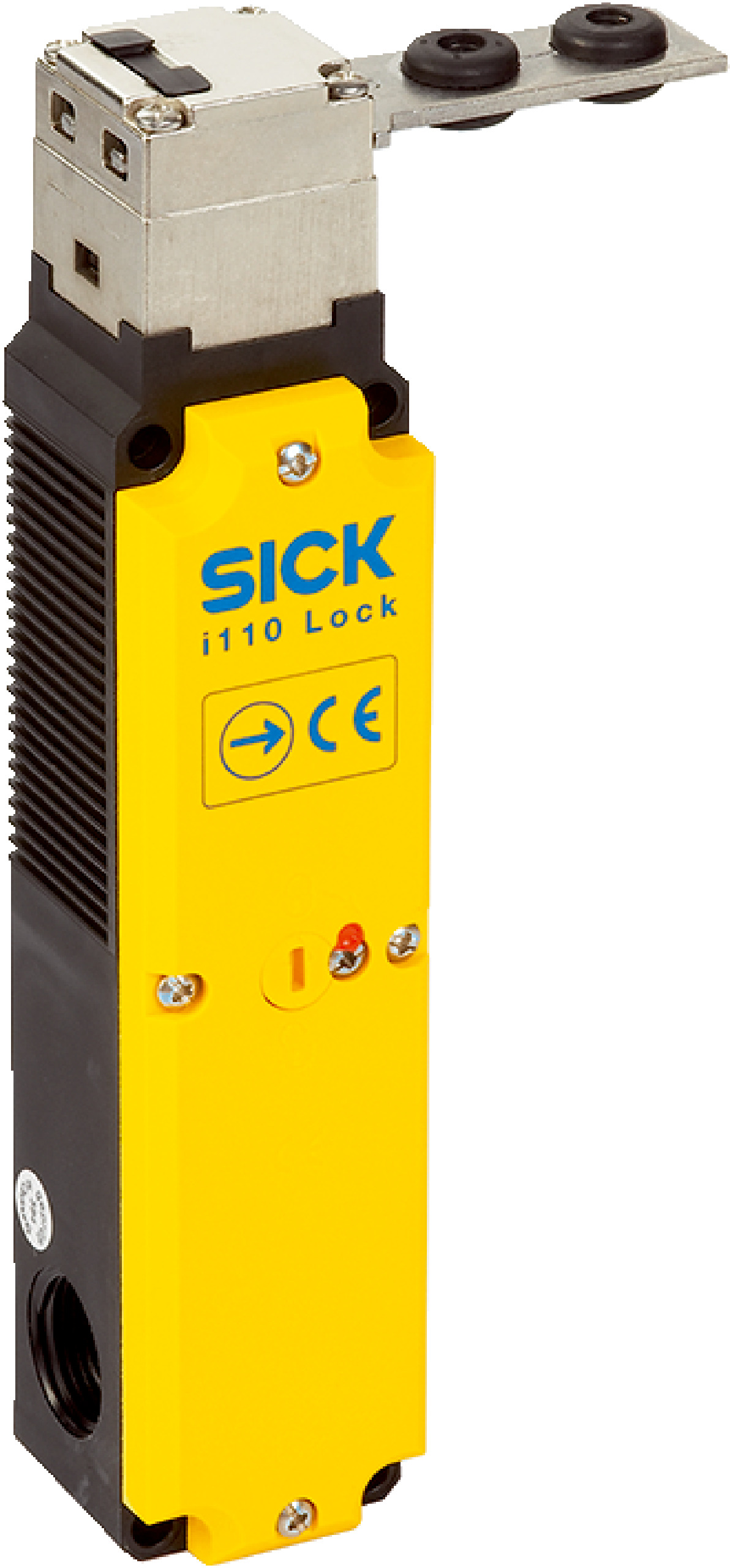

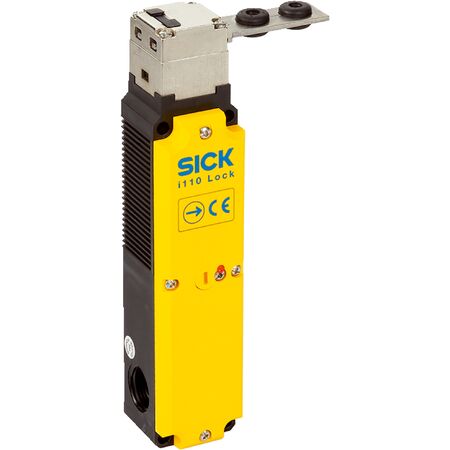

Electro-Mechanical Safety Switch i110-M0453 | IP67 Rated | 2500N Locking Force | by SICK
The Electro-Mechanical Safety Switch i110-M0453 features a robust design with a power to release locking mechanism, making it ideal for industrial safety interlocking applications. With an impressive locking force of up to 2,500 N and an IP67 rating for dust and water protection, this switch ensures reliable operation in demanding environments. Perfect for machinery access control and safety monitoring in manufacturing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to release
- Positive action N/C solenoid monitoring contacts: 2
- Positive action N/C door monitoring contacts: 2
- Locking force Fmax: 2,500 N (EN ISO 14119)
- Locking force FZh: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 5
- Approach speed: ≤ 20 m/min
- B10d parameter: 5 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Connection type: Cable gland, 3 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 1,500 V AC
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Switch-on time of magnet: 100%
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.5 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Two positive action N/C solenoid monitoring contacts and two positive action N/C door monitoring contacts
- Locking force up to 2,500 N compliant with EN ISO 14119
- Actuation frequency up to 1,200 per hour and approach speed up to 20 m/min
- IP67 rated enclosure for protection against dust and water
- Glass-fiber reinforced thermoplastic housing with metal actuator head
- Safe state relies on connected safety-related logic unit; no internal fault detection
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control for hazardous areas
- Safety monitoring in manufacturing and automation systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤ 8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK i110-M0453 Electro-Mechanical Safety Switch is available for immediate purchase, ideal for industrial safety and machinery access control applications.
