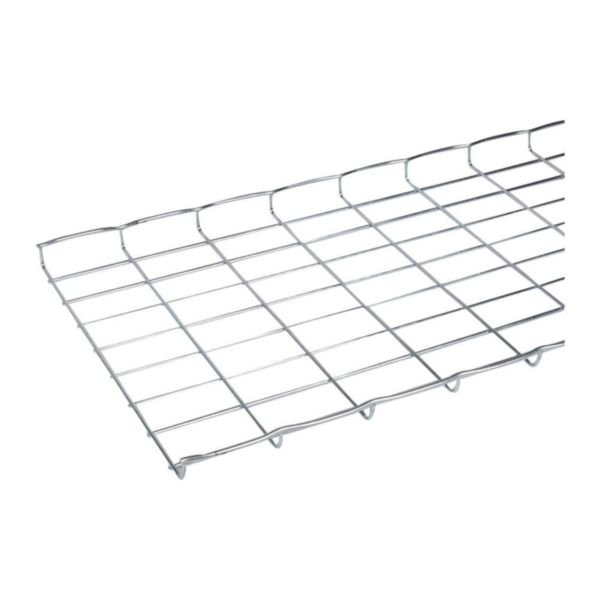

Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 450mm Width | @Len of 1 | by Cablofil
The Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and electro zinc plating for corrosion resistance, it supports and routes electrical cables effectively. Ideal for data centers and factories, this tray ensures natural ventilation to enhance cable efficiency and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 450mm Width | @Len of 1 | by Cablofil
Brand: Cablofil
SKU: CM000831
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 450 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 11943 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Weight: 2.44476436 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- No integrated partition
- Not suitable for circuit integrity
- Dimensions (H x L x W): 30mm x 3000mm x 450mm
- Weight: 7.33 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure compliance with safety and structural standards.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Ventilated design improves cable lifespan by preventing overheating
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 450mm x 30mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
