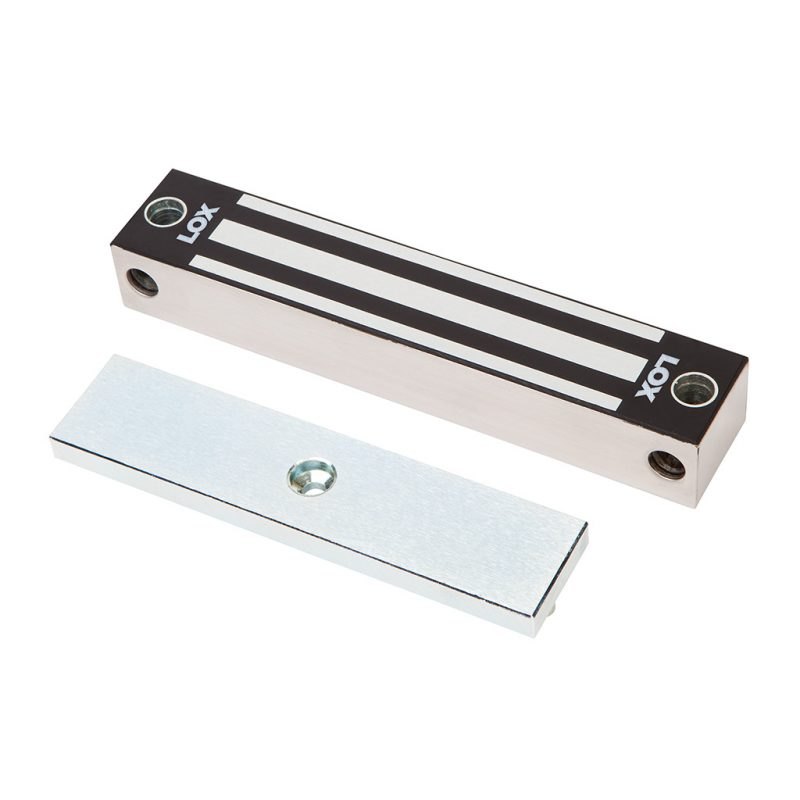

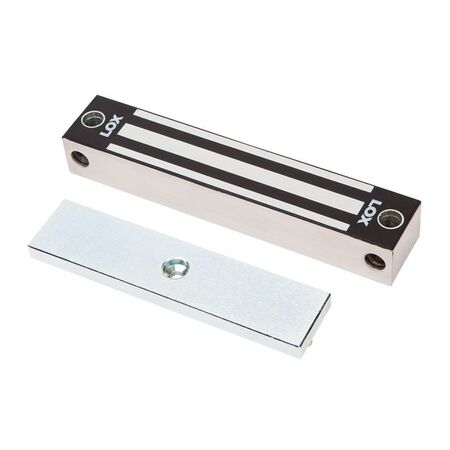

Electromagnetic Gate Lock LOX EM4500 | IP67 Rated | 200kg Holding Force | Dual Voltage | by LOX Locking
The Electromagnetic Gate Lock LOX EM4500 is designed for secure locking of external gates, featuring a robust 200kg holding force and IP67 rating for dust and water protection. Ideal for residential, commercial, and industrial applications, this lock operates on dual voltage (12VDC/24VDC) and includes a built-in surge protection feature, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electromagnetic Gate Lock LOX EM4500 | IP67 Rated | 200kg Holding Force | Dual Voltage | by LOX Locking
Brand: LOX Locking
SKU: EM4500
Alternatively Known As: Electromagnetic Gate Lock, Magnetic Gate Lock, Weatherproof Gate Lock, EM4500 Gate Lock
Technical Specifications
- Housing Material: Stainless steel
- Ingress Protection: IP67 rated
- Holding Force: 200kg
- Fixing Arrangement: Dual fixing (front and header mount)
- Surge Protection: Built-in varistor
- Voltage: 12VDC / 24VDC dual voltage
- Monitoring: Reed Switch included
- Dimensions (H x L x W): 40mm x 60mm x 150mm
- Weight: 2.5 kg
Key Features
- Fully enclosed stainless-steel housing for durability
- IP67 rated for protection against dust and water
- Holding force up to 200kg
- Dual fixing arrangement: front and header mount
- Built-in varistor surge protection
- Accepts dual voltage: 12VDC and 24VDC
- Reed Switch monitoring feature
- Lifetime warranty
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- External gates and doors requiring secure locking
- Industrial and commercial gate security
- Residential gate locking solutions exposed to weather
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- Energy-efficient dual voltage operation minimizes power consumption
Warranty Information
Lifetime warranty provided by the manufacturer.
Available Now
The LOX EM4500 Electro Magnetic Gate Lock is available for immediate purchase, ideal for securing external gates in residential, commercial, and industrial applications.
