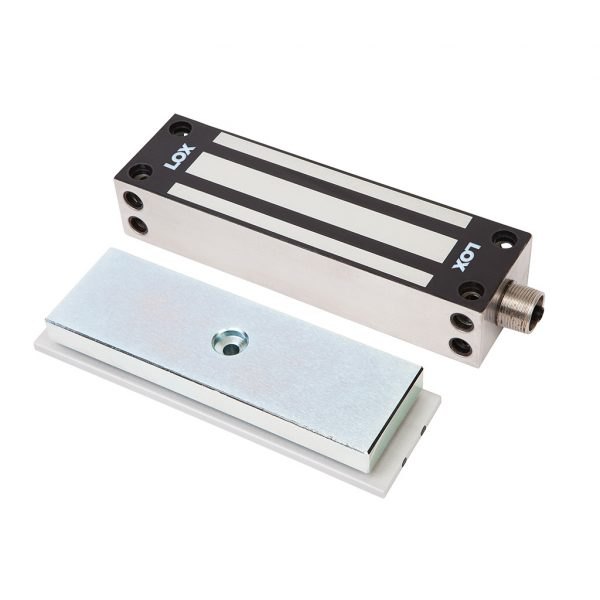

Electromagnetic Maglock | Weather Resistant | 630kg Holding Force | IP67 Rated | by Dicker Data
Electromagnetic maglock with a robust 630kg holding force and IP67 weather resistance, perfect for securing external gates in harsh environments. Designed for both residential and commercial applications, this durable lock features a fully enclosed stainless-steel housing and dual voltage compatibility, ensuring reliable performance and longevity. Ideal for installations requiring high security and weatherproofing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electromagnetic Maglock | Weather Resistant | 630kg Holding Force | IP67 Rated | by Dicker Data
Brand: Dicker Data
SKU: EM5000
Alternatively Known As: Electromagnetic Gate Lock, Weatherproof Maglock, External Magnetic Lock, High Holding Force Maglock
Technical Specifications
- Holding Strength: Up to 630kg
- Voltage/Current: Dual voltage 12/24VDC (12VDC = 480mA, 24VDC = 240mA)
- IP Rating: IP67
- Operating Temperature Range: -20°C to 60°C
- Lock Status Sensor: Hall effect LSS monitoring
- Approvals: CE & C-TICK
- Dimensions (H x L x W): 50mm x 70mm x 250mm
- Weight: 3.5 kg
Key Features
- Fully enclosed stainless-steel housing for durability
- IP67 rated for protection against dust and water ingress
- High holding force up to 630kg
- Dual fixing arrangement: front and header mount
- Built-in varistor surge protection
- Accepts dual voltage: 12VDC and 24VDC
- Lock status sensor (Hall effect) for monitoring
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- External gate security for residential and commercial properties
- Harsh environment installations such as surf-lifesaving clubhouses
- Weather-exposed access control points requiring high holding force
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- IP67 rating ensures long-lasting performance in harsh weather, minimizing waste
Warranty Information
25 years manufacturer warranty.
Available Now
The LOX EM5000 Electro Magnetic Maglock is available for immediate purchase, ideal for securing external gates and doors in harsh weather conditions.
