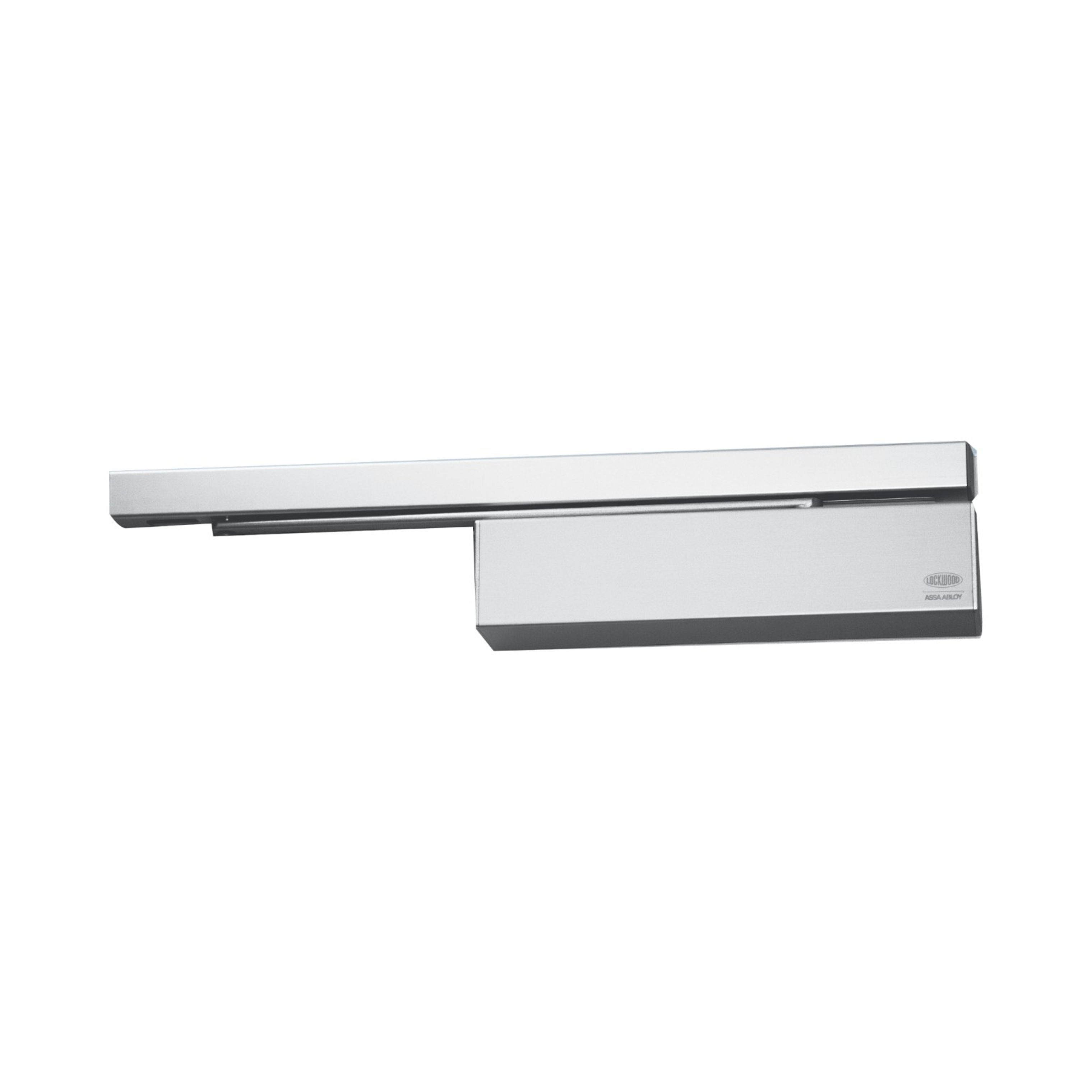

Electromechanical Single Door Closing System | Fire Rated 4 Hours | Adjustable Hold-Open Angle | Stainless Steel | by Lockwood
The Electromechanical Single Door Closing System is designed for reliable fire safety in commercial settings, featuring a fire rating of up to 4 hours and an adjustable hold-open angle from 70° to 130°. Ideal for hotels and office buildings, this system ensures compliance with fire safety standards while providing energy efficiency with low power consumption of 60 mA at 24VDC.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electromechanical Single Door Closing System | Fire Rated 4 Hours | Adjustable Hold-Open Angle | Stainless Steel | by Lockwood
Brand: Lockwood
SKU: 2616EMCSSS
Alternatively Known As: Electromechanical Door Closer, Fire Door Hold Open Device, Single Door Closing System
Technical Specifications
- Material: Satin Stainless Steel
- Fire tested up to 4 hours on fire door assemblies according to AS1905.1:2005
- Maximum door width: 1400mm
- Maximum opening angle: 130°
- Hold-open angle adjustable between 70° and 130°
- Power consumption: 60 mA at 24VDC
- Dimensions (H x L x W): 100mm x 300mm x 200mm
- Weight: 5 kg
Key Features
- Compact modern design suitable for single door installations
- Fire rated up to 4 hours on fire door assemblies per AS1905.1:2005
- Maximum door width 1400mm
- Maximum opening angle 130°
- Hold-open angle adjustable from 70° to 130°
- Power consumption 60 mA at 24VDC
- Electromechanical hold open device with sliding arm
Professional Installation Requirements
- Professional installation by a qualified technician is required to ensure compliance with fire safety standards and proper functionality.
Applications
- Hotels
- Office buildings
- Fire doors requiring hold open function
Standards & Compliance
- Complies with AS/NZS 1905.1 – Fire Resistant Doorsets
Environmental Benefits
- Helps prevent the spread of fire and smoke, enhancing building safety and reducing potential environmental damage.
- Energy efficient with low power consumption (60 mA at 24VDC).
Warranty Information
5 years warranty.
Available Now
The Lockwood 2616 Series Electromechanical Single Door Closing System is available now for immediate purchase. Ideal for fire safety applications in hotels, office buildings, and other commercial properties.
