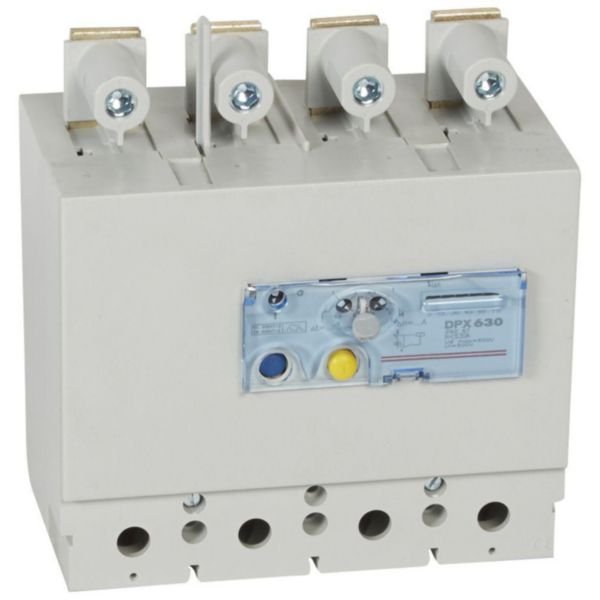

Electronic Earth Leakage Module DPX/DPX-I 630 | 4-Pole Configuration | Adjustable Sensitivity & Time Delay | LED Indicators | @EA of 1 | by Legrand
The Electronic Earth Leakage Module DPX/DPX-I 630 is designed for reliable protection against earth leakage faults in electrical switchboards and power cabinets. With a 4-pole configuration and adjustable sensitivity settings from 0.03 to 3 A, it ensures optimal safety for industrial and commercial installations. Featuring LED indicators for isolation state monitoring, this module is essential for enhancing electrical safety and preventing energy loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electronic Earth Leakage Module DPX/DPX-I 630 | 4-Pole Configuration | Adjustable Sensitivity & Time Delay | LED Indicators | @EA of 1 | by Legrand
Brand: Legrand
SKU: 026067
Alternatively Known As: Earth Leakage Relay, Earth Fault Module, Residual Current Device Module, DPX Earth Leakage Module
Technical Specifications
- Nominal voltage: 230-500 V~
- Nominal current: 630 A
- Rated fault current adjustable from 0.03 to 3 A
- Maximum delay time: 3000 ms
- Number of poles: 4
- Leakage current type: Type A
- LED indicators for isolation state monitoring
- Dimensions (H x L x W): 150mm x 120mm x 100mm
- Weight: 2.5 kg
Key Features
- Adjustable and sealable sensitivity settings: 0.03 - 0.3 - 1 - 3 A
- Adjustable time delay: 0 - 0.3 - 1 - 3 seconds
- Test and reset push-buttons for easy operation
- Remote earth fault signalling contact
- Mechanical test switch for installation insulation testing
- Mounted underneath DPX³/DPX³-I 630 circuit breakers
- LED indicators monitor the isolation state of the installation
- 4-pole configuration with nominal current of 630 A
- Nominal voltage range: 230-500 V~
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ switchboards.
Applications
- Electrical switchboards and power cabinets
- Industrial and commercial electrical installations
- Protection of electrical circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Helps prevent energy loss by detecting leakage currents promptly
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects and performance issues.
Available Now
The Legrand Electronic Earth Leakage Module DPX/DPX-I 630 4P 630A LED is available for immediate purchase, ideal for enhancing safety in industrial and commercial electrical installations.
