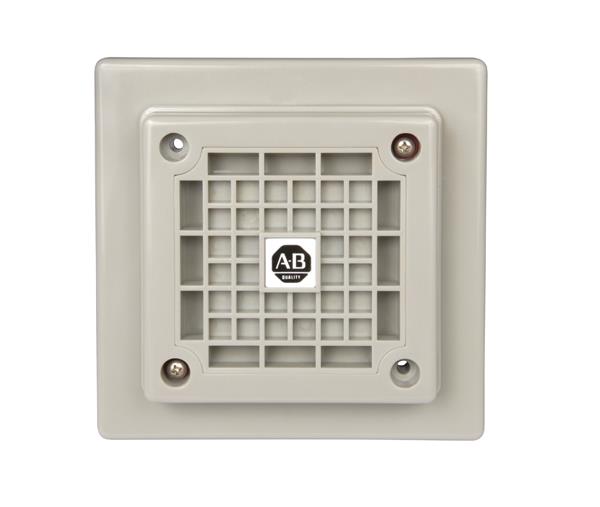

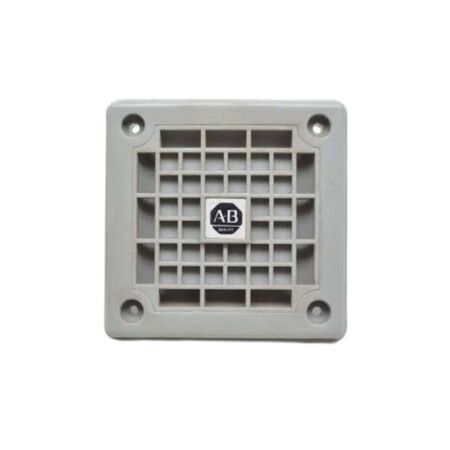

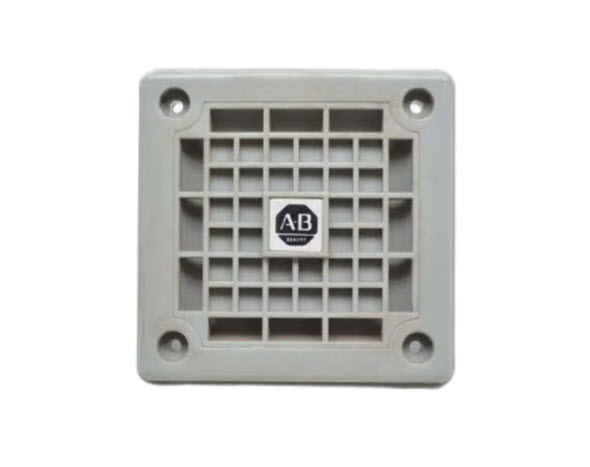

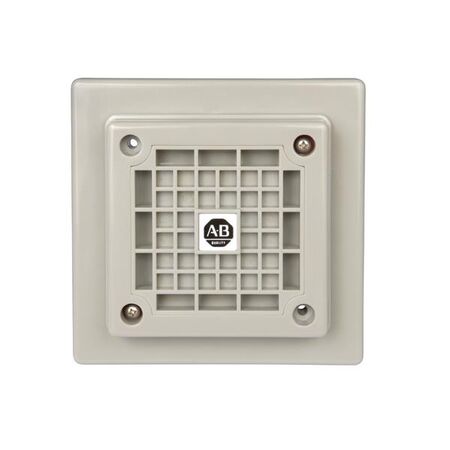

Product Name/Title: Allen-Bradley 855HFG24GPA Electronic Horn General Purpose
Brand: Allen-Bradley
SKU: 855HFG24GPA
Alternatively Known As: Electronic Horn, Audible Alarm, Industrial Horn, Signal Horn
Technical Specifications
- Model: 855HFG24GPA
- Sound Output: 108 dB(A) max
- Voltage: 24V AC/DC
- Protection Rating: UL Rated Type 3R/13, IP54
- Mounting: Semi-flush wall plate
- Series: 855H Series
- Version: Standard
- Dimensions (H x L x W): 120mm x 60mm x 120mm
- Weight: 0.5 kg
Key Features
- General purpose electronic horn
- Semi-flush wall plate design
- UL Rated Type 3R/13 for protection against dust and rain
- IP54 rated for dust and water resistance
- Maximum sound output of 108 dB(A)
- Operates on 24V AC/DC power supply
- Mountable design for easy installation
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure compliance with safety standards and proper mounting.
Applications
- Industrial and commercial environments requiring audible signaling
- General purpose alert and alarm systems
- Semi-flush wall mount installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 24V AC/DC operation
- Durable design reduces need for frequent replacements
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 855HFG24GPA Electronic Horn is available for immediate purchase, ideal for industrial and commercial audible signaling applications.
