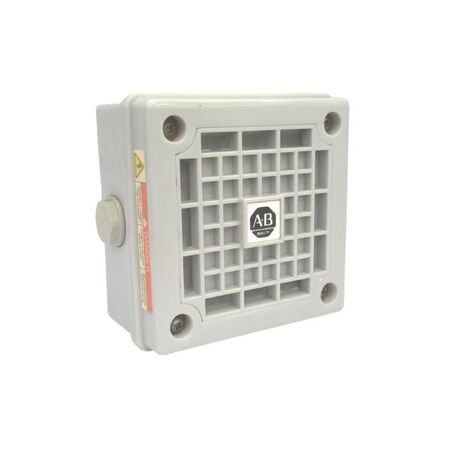

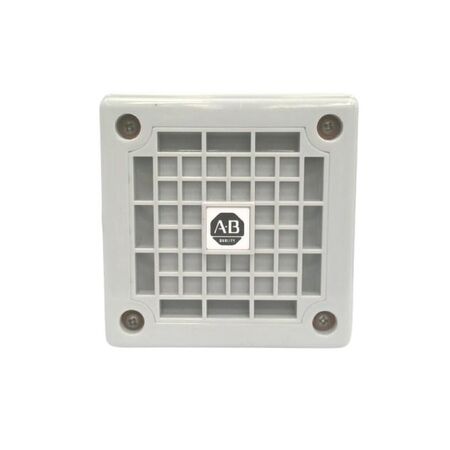

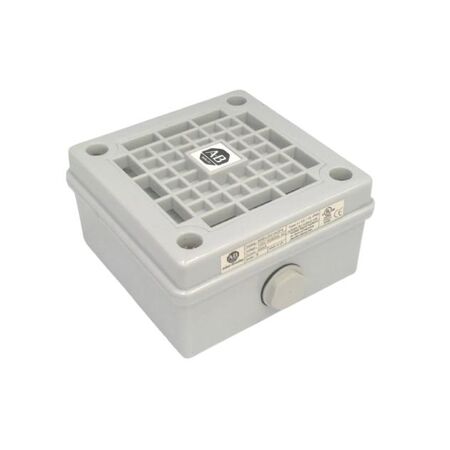

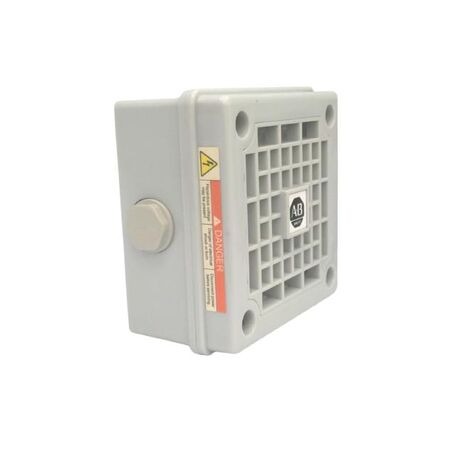

Electronic Horn General Purpose | 108 dB(A) Sound Output | IP66 Rated | Surface Mount | by Allen-Bradley
The Electronic Horn General Purpose by Allen-Bradley delivers a powerful 108 dB(A) sound output, making it ideal for industrial signaling and alert systems. With an IP66 rating for dust and water protection, this surface-mounted horn operates at 120 VAC and is designed for harsh environments. Perfect for safety and warning applications, it ensures reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sound Output: 108 dB(A) max
- Voltage: 120 VAC
- Enclosure Rating: UL Type 4/4X/13
- Ingress Protection: IP66
- Mounting: Surface base with conduit entrance
- Dimensions (H x L x W): 120mm x 100mm x 120mm
- Weight: 1.5 kg
Key Features
- General purpose electronic horn
- Surface base with conduit entrance
- UL rated Type 4/4X/13 for harsh environments
- IP66 rated for dust and water protection
- Standard version with 108 dB(A) max sound output
- Operates at 120 VAC
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial signaling and alert systems
- General purpose electronic horn for safety and warning
- Surface mounting in industrial environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy efficient operation reduces power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 855HSG10GPA Electronic Horn is available for immediate purchase, ideal for industrial and commercial signaling applications.
