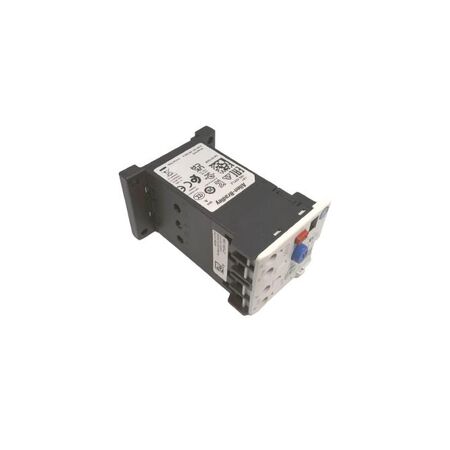

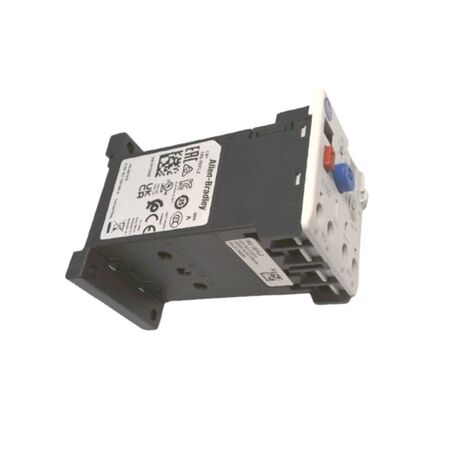

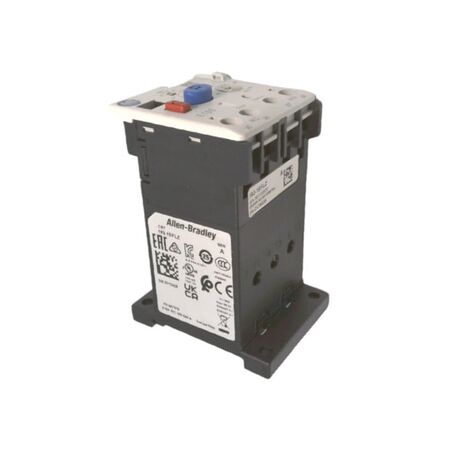

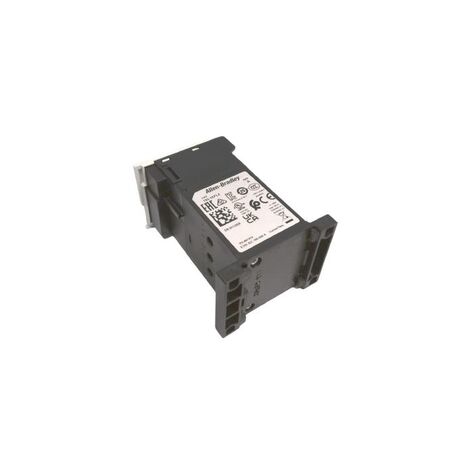

Electronic Overload Relay 1931EFLZ | Selectable Trip Classes | 100-500 A Current Range | DIN Rail or Panel Mount | by Allen-Bradley
The Electronic Overload Relay 1931EFLZ is designed for industrial motor protection, featuring selectable trip classes of 10, 15, 20, and 30, and a current range from 100 to 500 A. Ideal for automation control panels and manufacturing equipment, it offers both manual and auto reset options, ensuring reliable operation and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Trip Class: Selectable 10, 20, 15, 30
- Reset: Selectable manual or auto manual reset
- Current Range: 100-500 A
- Contacts: 1 Normally Open, 1 Normally Closed
- Mounting: DIN rail or panel mount
- Wiring: Pass through wiring supported
- Standards: IEC compliant
- Dimensions (H x L x W): 90mm x 75mm x 45mm
- Weight: 1.5 kg
Key Features
- Electronic overload relay with selectable trip classes 10, 20, 15, and 30
- Selectable manual or auto manual reset options
- Current range from 100 to 500 A
- Includes 1 normally open contact and 1 normally closed contact
- Mounts to DIN rail or panel mounting
- Pass through wiring capability
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into motor control circuits.
Applications
- Industrial motor protection
- Automation control panels
- Manufacturing equipment
- Electrical motor circuits requiring overload protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electronic design reduces energy waste by providing precise motor protection
- Helps extend motor life, reducing equipment replacement and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1931EFLZ Electronic Overload Relay is available now for immediate purchase. Ideal for industrial motor protection and automation control applications.
