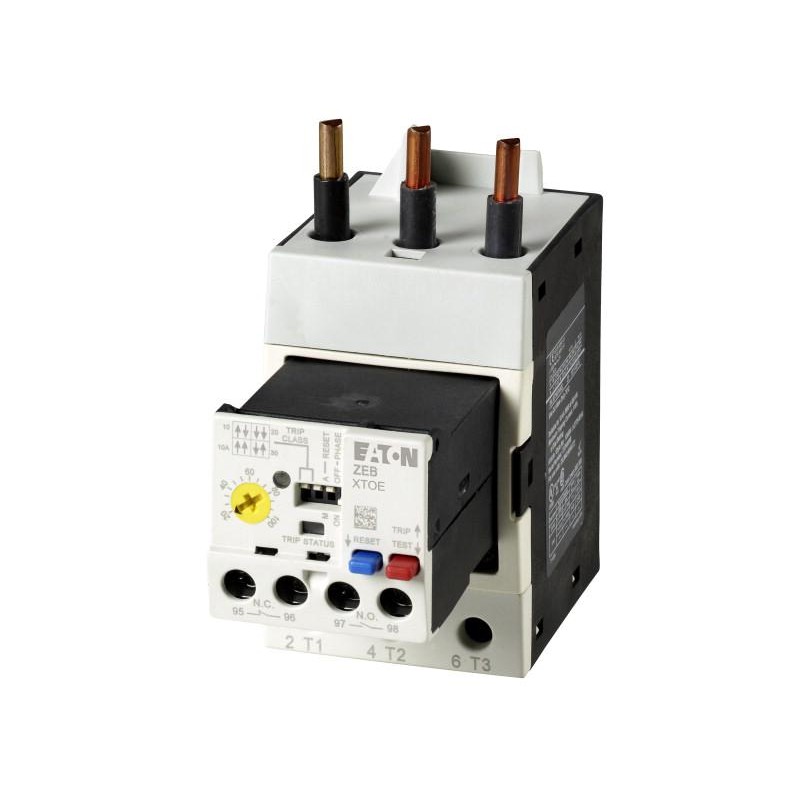

Electronic Overload Relay | 20-100 A Adjustable | IP20 Protection & Automatic Reset | Eaton ZEB150-100
Electronic overload relay with adjustable overload release current from 20 A to 100 A, and IP20 protection—ideal for industrial motor protection and control panels. Built for reliable performance, featuring automatic push-button reset and direct mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electronic Overload Relay | 20-100 A Adjustable | IP20 Protection & Automatic Reset | Eaton ZEB150-100
Brand: Eaton
SKU: Y7-136506
Alternatively Known As: Electronic overload relay, Motor overload relay, ZEB overload relay, Eaton ZEB150-100
Technical Specifications
- Overload release current setting: 20 A to 100 A adjustable
- Number of contacts: 1 normally open, 1 normally closed
- Degree of protection: IP20
- Rated operational voltage: up to 690 V AC
- Rated operational current (Ie) at AC-15, 120 V: 1.5 A
- Rated operational current (Ie) at AC-15, 380-415 V: 0.9 A
- Rated impulse withstand voltage (Uimp): 6000 V
- Shock resistance: 15 g, 10 ms duration
- Terminal capacity: flexible 0.75-2.5 mm², solid 16-50 mm²
- Mounting method: Direct attachment
- Reset function: Automatic push-button
- Pollution degree: 3
- Overvoltage category: III
- Ambient operating temperature: -25 °C to 65 °C
- Dimensions (H x L x W): 120mm x 140.5mm x 56mm
- Weight: 0.74 kg
Key Features
- Adjustable overload release current setting from 20 A to 100 A
- Direct mounting for easy installation
- Phase-failure sensitivity compliant with IEC/EN 60947
- Finger and back-of-hand proof protection against direct contact
- Automatic push-button reset function
- Self-powered voltage type
- Shock resistant according to IEC/EN 60068-2-27
- IP20 degree of protection
Professional Installation Requirements
- Installation by a qualified electrician or technician is required to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial motor protection
- Branch circuit overload protection
- Control panels and switchgear assemblies
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as per Eaton's standard policy; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller ZEB150-100 Electronic Overload Relay is available for immediate purchase, ideal for industrial motor protection and control panel applications.
