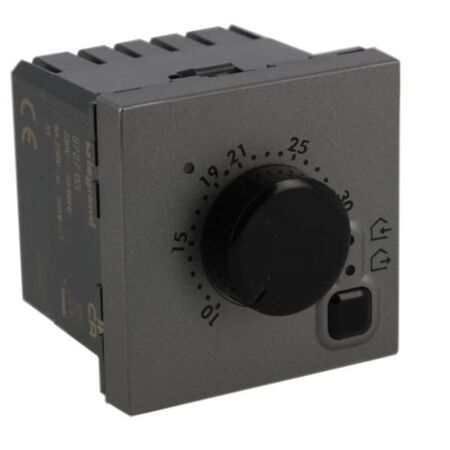

Electronic Room Thermostat | Adjustable 10-30°C Range | IP30 Rated | Flush-Mounted | @Each of 1 | by Legrand
The Electronic Room Thermostat is designed for precise temperature control, featuring an adjustable range from 10-30°C and suitable for both heating and cooling systems. Ideal for residential and commercial applications, this flush-mounted thermostat ensures efficient energy use and easy operation with a control knob. With an IP30 rating, it provides reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electronic Room Thermostat | Adjustable 10-30°C Range | IP30 Rated | Flush-Mounted | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572703
Alternatively Known As: Electronic room thermostat, heating thermostat, cooling thermostat, temperature controller, flush-mounted thermostat
Technical Specifications
- Power supply: 230 V AC, 50/60 Hz
- Connection: 3-/4-wire
- Measuring range: 10-30 °C
- Control characteristic: Other
- Suitable for heating and cooling
- Number of heater outputs: 1
- Number of cooler outputs: 1
- Differential value: 2-2 K
- Contact type: Change-over contact (NO/NC)
- Max. contact voltage: 250 V
- Max. contact load: 8 A
- Degree of protection: IP30
- Mounting method: Flush-mounted
- Operation: Turn knob
- Colour: Grey
- Operating temperature: -5 to 40 °C
- Storage temperature: -10 to 70 °C
- Dimensions (H x L x W): 45mm x 47mm x 45mm
- Weight: 0.1 kg
Key Features
- Electronic room thermostat with adjustable temperature range from 5 °C to 30 °C
- One potential free changeover contact output
- Suitable for controlling heating and cooling with 1 output each
- Flush-mounted installation
- Power supply: 230 V AC, 50/60 Hz
- Change-over contact (NO/NC) with max contact load of 8 A at 250 V
- IP30 degree of protection
- Control knob with index and adjustable segments for min. and max. settings
- Differential value of 2-2 K
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Control of heating systems
- Control of cooling systems
- Suitable for heated ceilings and underfloor heating
- Residential and commercial building temperature regulation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps optimize energy use by precise temperature control, reducing unnecessary heating and cooling.
- Supports energy-efficient building management.
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Electronic Room Thermostat 2 Modules Magnesium is available for immediate purchase, ideal for residential and commercial temperature control applications.
