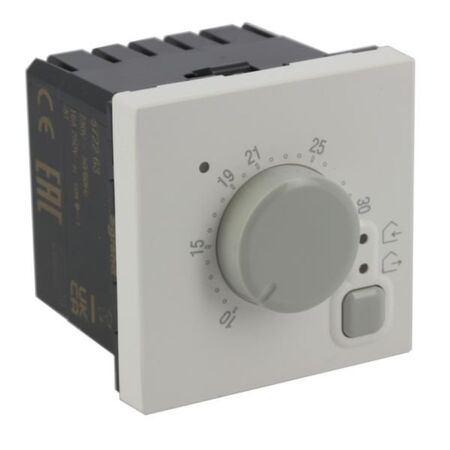

Electronic Room Thermostat | Adjustable 5-30°C Range | IP30 Rated | Flush-Mounted Design | @Each of 1 | by Legrand
The Electronic Room Thermostat is designed for precise temperature control, featuring an adjustable range from 5°C to 30°C. Ideal for residential and commercial heating and cooling applications, this flush-mounted thermostat supports underfloor heating and heated ceilings, ensuring energy efficiency and comfort. With a robust IP30 rating and a user-friendly control knob, it’s perfect for optimizing energy consumption in any space.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electronic Room Thermostat | Adjustable 5-30°C Range | IP30 Rated | Flush-Mounted Design | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572203
Alternatively Known As: Electronic Room Thermostat, Digital Thermostat, Heating Thermostat, Temperature Controller
Technical Specifications
- Power supply: 230 V AC, 50/60 Hz
- Connection: 3-/4-wire
- Measuring range: 10-30 °C
- Control characteristic: Other
- Suitable for heating and cooling
- Number of heater outputs: 1
- Number of cooler outputs: 1
- Differential value: 2-2 K
- Contact type: Change-over contact (NO/NC)
- Max. contact voltage: 250 V
- Max. contact load: 8 A
- Degree of protection: IP30
- Mounting method: Flush-mounted
- Operation: Turn knob
- Operating temperature range: -5 to 40 °C
- Storage temperature range: -10 to 70 °C
- Dimensions (H x L x W): 45mm x 47mm x 45mm
- Weight: 0.1 kg
Key Features
- Electronic room thermostat with adjustable temperature range from 5 °C to 30 °C
- Control knob with index and adjustable segments for minimum and maximum settings
- One potential free changeover contact output
- Suitable for controlling heated ceilings and underfloor heating
- Flush-mounted design
- Change-over contact (NO/NC) with max contact voltage of 250 V and max contact load of 8 A
- Power supply: 230 V~ 50/60 Hz
- Degree of protection: IP30
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Residential heating and cooling control
- Commercial building temperature regulation
- Underfloor heating systems
- Heated ceiling temperature control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps optimize energy consumption by precise temperature control
- Supports energy-efficient heating and cooling systems
- Reduces unnecessary energy waste, lowering carbon footprint
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Electronic Room Thermostat 2 Modules White is available for immediate purchase, ideal for residential and commercial heating and cooling control applications.
