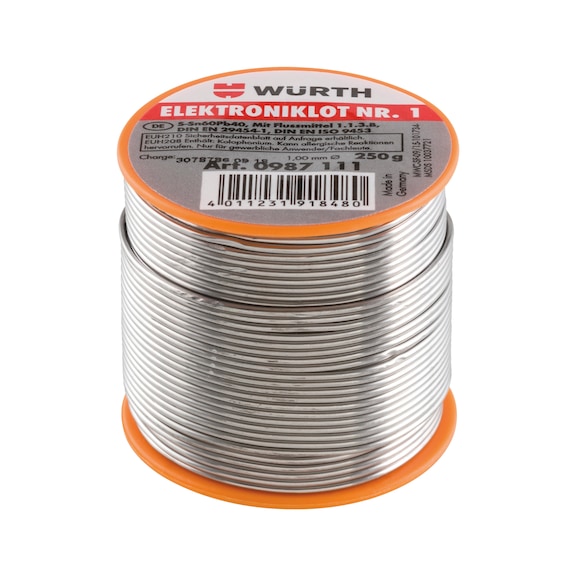

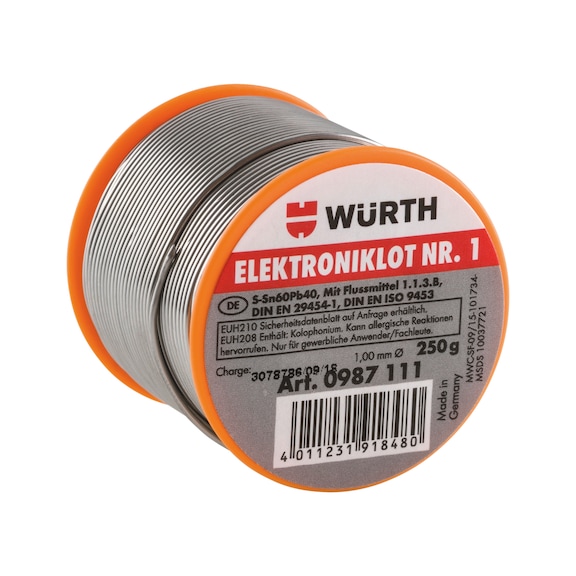

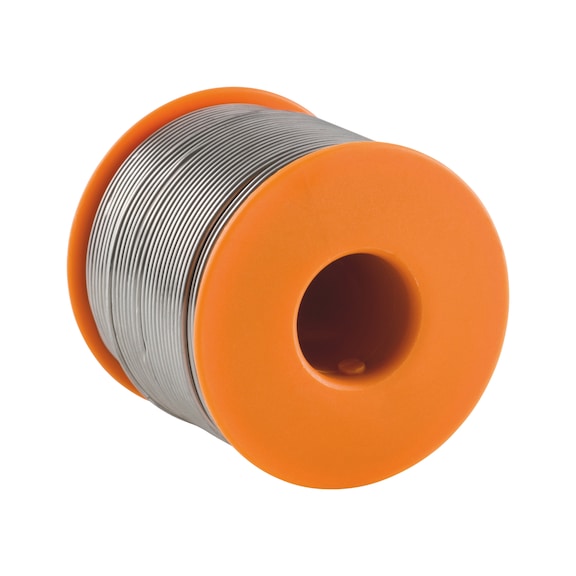

Electronic Solder No 1 SLDR NO1 SN60 PB40 | 1.0 mm Diameter | Low Soldering Temperature | by Wurth
Electronic solder No 1 SLDR NO1 SN60 PB40 is designed for efficient soldering with a 1.0 mm diameter and a low processing temperature of 240°C. Ideal for electronics soldering on circuit boards and electrical components, this soft solder wire ensures reliable connections and complies with industry standards. Perfect for professionals seeking high-quality soldering solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electronic Solder No 1 SLDR NO1 SN60 PB40 | 1.0 mm Diameter | Low Soldering Temperature | by Wurth
Brand: Wurth
SKU: 987111
Alternatively Known As: Electronic solder wire, Soft solder wire, Sn60Pb40 solder, Soldering wire 250g
Technical Specifications
- Wire diameter: 1.0 mm
- Weight of content: 250 g
- Material designation: S-Sn60Pb40
- EN standard: 29454-1
- ISO standard: 9453
- Minimum processing temperature: 240 °C
- Maximum processing temperature: 260 °C
- Minimum melting temperature: 183 °C
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 0.25 kg
Key Features
- Low soldering temperature due to fast-flowing solder
- Active soft-soldering wire containing halogen
- Flux compliant with DIN EN ISO 9454
- Solder wire composition Sn99.3Cu0.7 in accordance with DIN EN ISO 9453
Professional Installation Requirements
- Recommended for use by trained professionals familiar with soldering techniques and safety precautions.
Applications
- Electronics soldering for circuit boards and electrical components
- General purpose soft soldering in electrical and electronic assembly
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low processing temperature reduces energy consumption during soldering
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Electronic Solder No 1 SLDR NO1 SN60 PB40 250G is available for immediate purchase, ideal for electronics manufacturing and repair.
