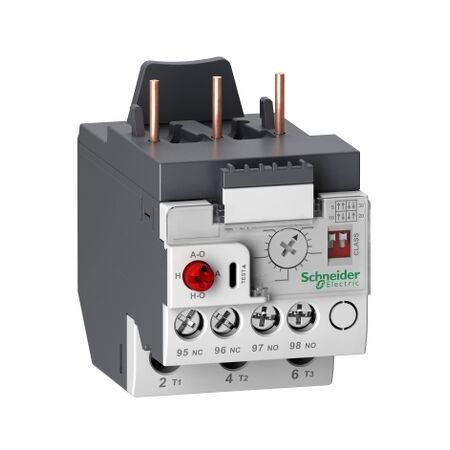

TeSys LR9, Electronic Thermal Overload Relay, 3P, 0.1...0.5 A

Electronic Thermal Overload Relay 3P | 0.1-0.5 A | Compact Design by Clipsal

BRAND: Clipsal

SKU: LR9D01

$168.30 List price: $252.50

+ −

30 Days Return Delivery Options

Electronic thermal overload relay with 3-phase protection and adjustable trip class—ideal for motor protection in industrial applications. Built for reliability, with compact design for easy mounting.

Description
Attachments

Product Name/Title: TeSys LR9, Electronic Thermal Overload Relay, 3P, 0.1...0.5 A

Brand: Clipsal

SKU: LR9D01

Alternatively Known As: Thermal Overload Relay, Electronic Relay, Motor Protection Relay

Technical Specifications

Power consumption: 300 mW
Rated insulation voltage: 1000V for power circuit, 690V for signalling circuit
Tripping threshold: 1.25 In
Time range: 1.5...4 min for automatic reset
Rated impulse withstand voltage: 6 kV
Phase failure sensitivity: phase difference > 40% for 3-3 s
Electromagnetic compatibility: surge withstand 2 kV, resistance to electrostatic discharge 8 kV
Dimensions (H x L x W): 72.5mm x 79.9mm x 45mm
Weight: 0.18 kg

Key Features

Electronic thermal overload relay with adjustable trip class
Rated operational voltage up to 690V
Compact design for easy mounting under contactor plate

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Motor protection in industrial applications
Compatible with various TeSys contactors

Standards & Compliance

Complies with EN/IEC 60947-4-1 and EN/IEC 60947-5-1

Environmental Benefits

Green Premium product status

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The TeSys LR9 Electronic Thermal Overload Relay is available now for immediate purchase. Ideal for motor protection in industrial settings.

LR9D01 (LR9D01, 245 Kb) [Download]
