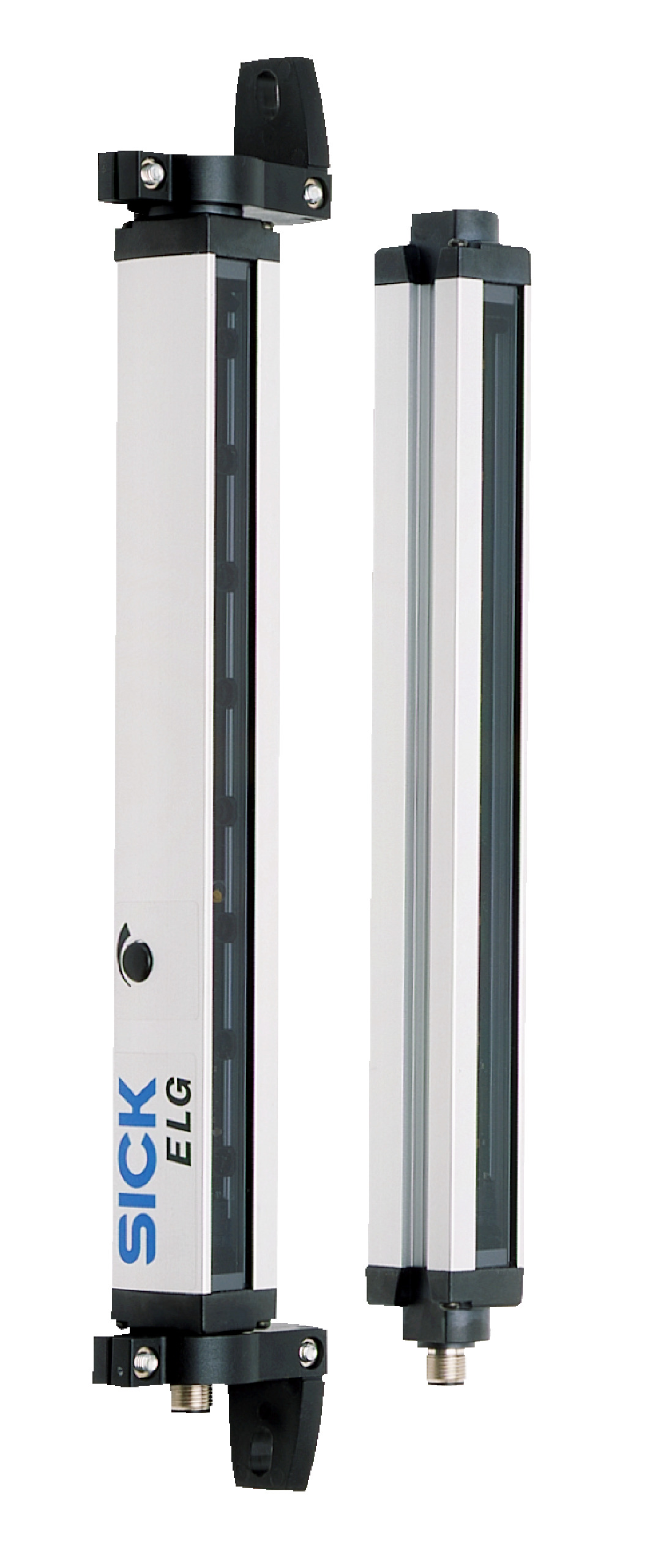

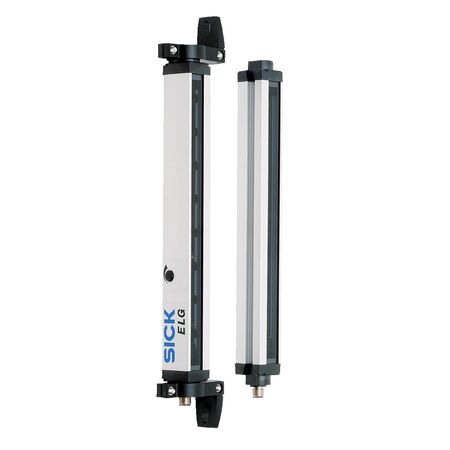

ELG3-0150P513 Photoelectric Sensor | 6-Beam Sender/Receiver | IP65 Rated | by SICK
The ELG3-0150P513 photoelectric sensor features a 6-beam sender/receiver design, ensuring precise object detection with a minimum detectable object size of 20 mm. With an operating range of up to 2 meters and robust IP65-rated aluminum housing, it's perfect for industrial automation and safety applications, providing reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ELG3-0150P513 Photoelectric Sensor | 6-Beam Sender/Receiver | IP65 Rated | by SICK
Brand: SICK
SKU: 1025578
Alternatively Known As: SICK ELG3 0150P513 sensor, SICK 6-beam sender receiver, ELG3 photoelectric sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Beam separation: 30 mm
- Number of beams: 6
- Detection height: 150 mm
- Evaluation beams: Cross beam
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 500 mm
- Operating range: 2 m
- Response time: 84 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 226mm x 29mm x 34mm
- Weight: 0.8 kg
Key Features
- Sender/receiver sensor principle with 6 beams
- Minimum detectable object size of 20 mm
- Beam separation of 30 mm and detection height of 150 mm
- Cross beam evaluation for precise detection
- Operating range up to 2 meters with maximum range of 3 meters
- Robust aluminum housing with IP65 enclosure rating
- LED indication and optical synchronization
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ELG3-0150P513 sensor is available for immediate purchase, ideal for industrial automation and safety applications.
