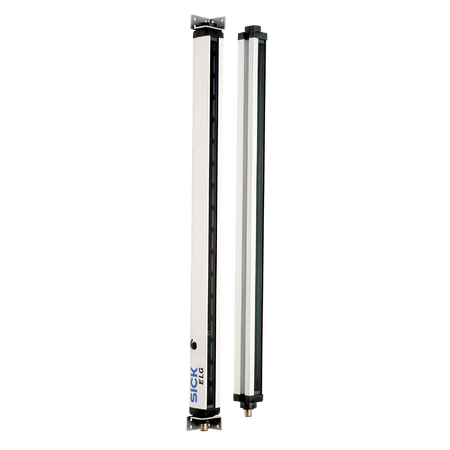

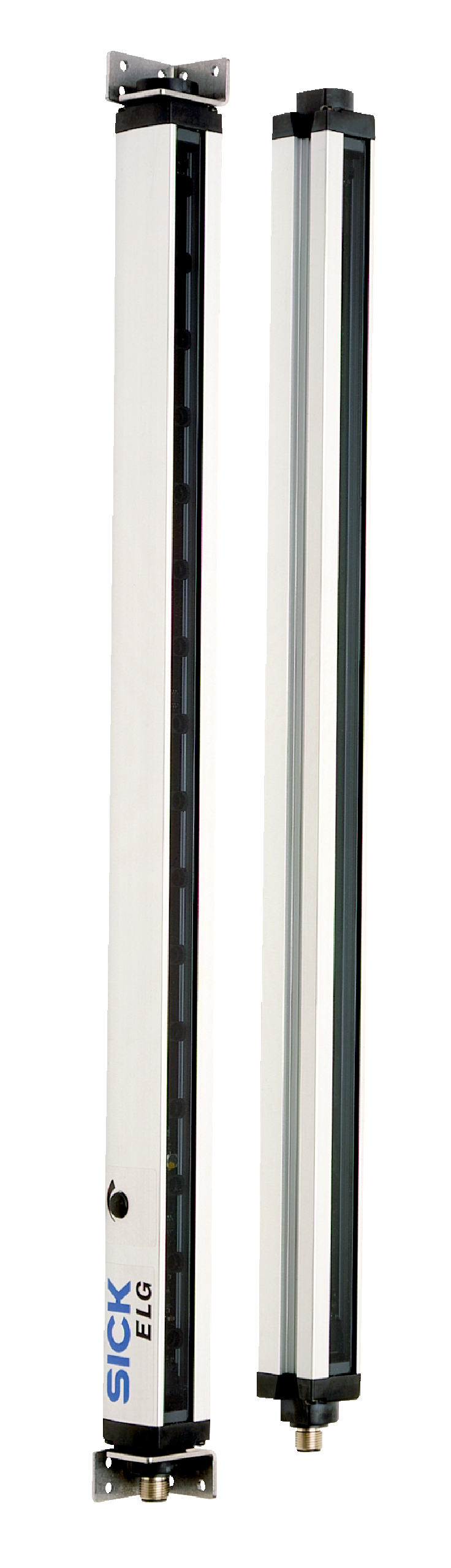

ELG6-1620P521 | Automation light grids
The SICK ELG6-1620P521 automation light grid sensor offers reliable object detection with 28 beams over a 1,620 mm height, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ELG6-1620P521 | Automation light grids
Brand: SICK
SKU: 1040686
Alternatively Known As: Light curtain sensor, safety light grid, automation light barrier, presence detection sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 65 mm
- Beam separation: 60 mm
- Number of beams: 28
- Detection height: 1,620 mm
- Wave length: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 17 m
- Minimum range: ≥ 0 mm
- Operating range: 12 m
- Response time: 100 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 1696mm x 29mm x 34mm
- Weight: 4.2 kg
Key Features
- Sender/receiver sensor principle with 28 parallel beams
- Minimum detectable object size of 65 mm
- Detection height of 1,620 mm with 60 mm beam separation
- Operating range up to 12 m with maximum range of 17 m
- Robust aluminum housing with IP65 enclosure rating
- LED indication and optical synchronization
- Short-circuit and reverse polarity protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable aluminum housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK ELG6-1620P521 automation light grid sensor is available for immediate purchase, ideal for industrial automation and safety applications.
