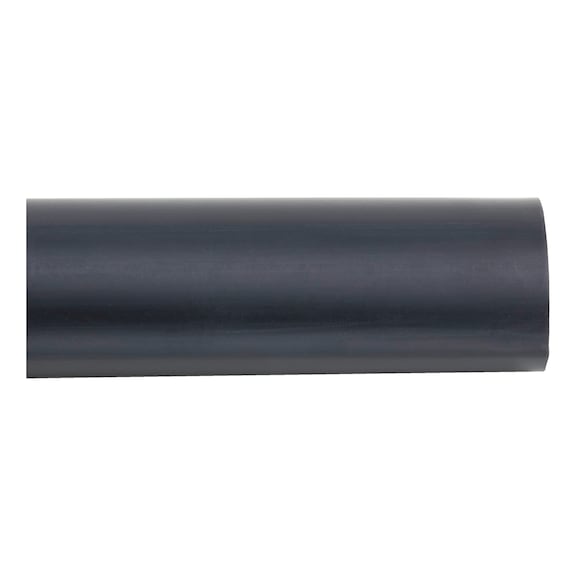

ELMO Heat Shrink Hose Thick Walled | 1 kV Dielectric Strength | UV Resistant & Halogen-Free | by Wurth
ELMO Heat Shrink Hose Thick Walled offers 1 kV dielectric strength and is UV resistant, making it ideal for electrical insulation and protection in various applications. Designed for professional use, this halogen-free tubing ensures secure sealing with its hot-melt adhesive coating, providing excellent mechanical protection for cables and wires in automotive and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ELMO Heat Shrink Hose Thick Walled | 1 kV Dielectric Strength | UV Resistant & Halogen-Free | by Wurth
Brand: Wurth
SKU: 975305202
Alternatively Known As: Heat Shrink Tubing, Heat Shrink Sleeve, Electrical Insulation Tube, Polyolefin Heat Shrink Hose
Technical Specifications
- Type: 33/5.5
- Diameter (expanded): 33 mm
- Diameter (shrunk): 5.5 mm
- Sleeve-wall thickness when shrunk: 3.4 mm
- Length: 1200 mm
- Dielectric strength: 20 kV/mm
- Temperature range: -55 to 110 °C
- Minimum shrinkage temperature: 120 °C
- Change in length after shrinking: -10% to -1%
- Ultraviolet resistance: Yes
- Material: Polyolefin
- Halogen-free: Yes
- Colour: Black
- Dimensions (H x L x W): 33mm x 1200mm x 33mm
- Weight: 0.15 kg
Key Features
- Inside coated with hot-melt adhesive for secure sealing
- Good physical, chemical, and thermal properties
- Halogen-free and UV resistant
- Thick wall for enhanced mechanical protection
- Suitable for a wide range of applications
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper shrinkage and electrical safety.
Applications
- Electrical insulation and protection for cables and wires
- Environmental protection for wiring in automotive, industrial, and electrical installations
- Mechanical protection and strain relief for cable joints and terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces toxic emissions in case of fire
- Durable and long-lasting, reducing the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The ELMO Heat Shrink Hose Thick Walled 06 1 kV is available for immediate purchase, ideal for electrical insulation and protection applications in industrial, automotive, and electrical installations.
