EMC Cable Gland 10-18MM | Ex d Explosion Proof | Increased Safety & Dust Protection by Cabac

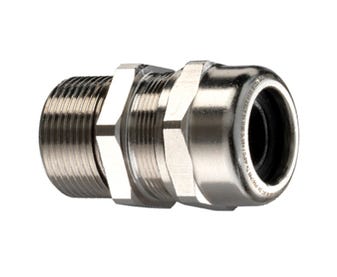

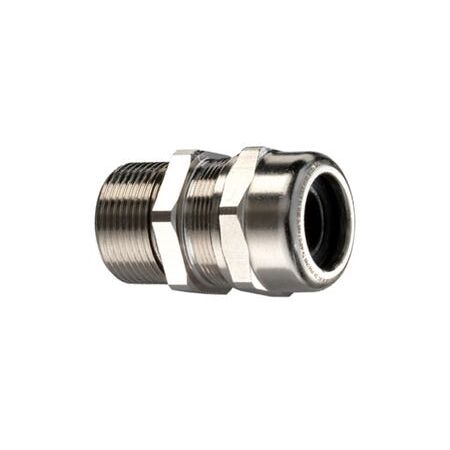

The Cabac M25 NP EMC Gland 10-18MM is a single compression cable gland designed for shielded circular cables, providing explosion proof, increased safety, and dust protection for hazardous zones 1, 2, 21, and 22 with EMC shielding continuity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M25 NP EMC GLAND 10-18MM Ex de
Brand: Cabac
SKU: EXN05MMC6
Alternatively Known As: Explosion Proof Cable Gland, EMC Cable Gland, Hazardous Area Cable Gland, Ex d Cable Gland
Technical Specifications
- Cable Gland Type: Single compression
- Cable Diameter Range: 10-18mm
- Protection Types: Ex d (explosion proof), Ex e (increased safety), Ex tD (dust protection)
- EMC Contact: Yes, maintains shielding continuity
- Suitable Zones: 1, 2, 21, 22
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Single compression cable gland
- Ex d explosion proof, Ex e increased safety, and Ex tD dust protection
- EMC contact to maintain shielding continuity
- Suitable for hazardous zones 1, 2, 21, and 22
Professional Installation Requirements
- Installation by a qualified professional experienced in hazardous area electrical equipment is required to ensure compliance and safety.
Applications
- Use with shielded circular cable types in hazardous areas
- Suitable for Zones 1, 2, 21, and 22 hazardous locations
- Maintains EMC shielding continuity in explosion-proof and increased safety environments
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Enhances safety in hazardous environments reducing risk of accidents and environmental contamination
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac M25 NP EMC Gland 10-18MM is available for immediate purchase, ideal for hazardous area cable management applications.
