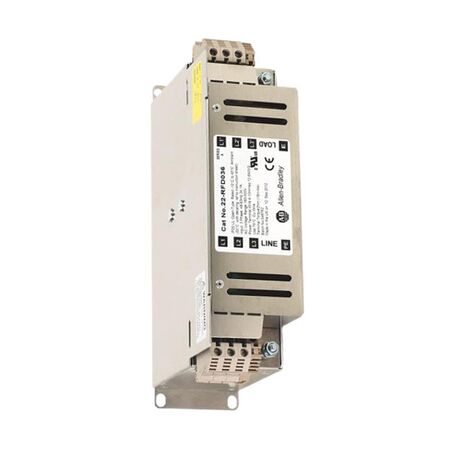

EMC Filter L Type 480V AC | Three Phase | IP20 Rated | Panel Mount Design | by Allen-Bradley
The EMC Filter L Type 480V AC is designed for three-phase systems, effectively reducing electromagnetic interference. Ideal for industrial motor control and electrical panel applications, this filter supports up to 15 kW (20 HP) and features a panel mount design with an IP20 rating. Ensure compliance and enhance system efficiency with this reliable solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 480V AC
- Frequency: 50/60 Hz
- Phase: Three Phase
- Power Rating: 15 kW (20 HP)
- IP Rating: IP20 UL/NEMA Type Open
- Mounting: Panel Mount
- Filter Type: L Type EMC Filter
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 3.5 kg
Key Features
- EMC filter designed for three-phase 480V AC systems
- L Type filter for effective electromagnetic interference reduction
- Panel mount design with IP20 UL/NEMA Type Open rating
- Suitable for 15 kW (20 HP) motor applications
- NEMA/UL Type Open enclosure
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper EMC filter integration.
Applications
- Industrial motor control systems
- Variable frequency drives (VFDs)
- Electrical panels requiring EMC noise suppression
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces electromagnetic interference, improving system efficiency and reducing electronic waste from equipment failure.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 22RFD036 EMC Filter L Type 480V AC Three Phase is available now for immediate purchase. Ideal for industrial motor control and electrical panel applications.
