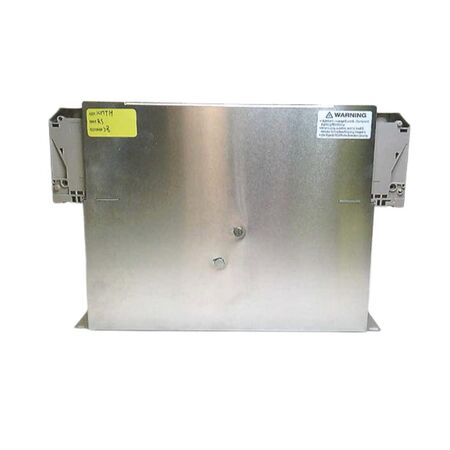

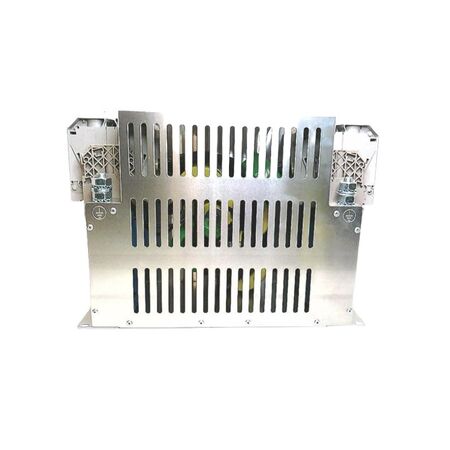

EMC Filter for PowerFlex Drives | 3-Phase Compatibility | 22-30 kW & 55 kW Ratings | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 22RFD150
$2,007.20 List price: $2,501.30
+ −
30 Days Return Delivery Options
The EMC Filter for PowerFlex Drives is engineered for 3-phase power systems, supporting power ratings from 22 to 30 kW at 240 V AC and up to 55 kW at 480 V AC. Ideal for industrial motor control applications, this filter reduces electromagnetic interference, enhancing system efficiency and reliability. Designed for panel mounting, it meets IP00 and IP20 enclosure standards, ensuring durability in demanding environments.
Technical Specifications
  • Model: 22RFD150
  • Type: EMC Filter
  • Compatible with PowerFlex drives
  • Phase: 3-phase
  • Frequency: 50/60 Hz
  • Power rating: 22-30 kW (30-40 HP) at 240 V AC
  • Power rating: 55 kW (75 HP) at 480 V AC
  • Enclosure: IP00, NEMA/UL type open; IP20 UL/NEMA type open
  • Mounting: Panel mount
  • Dimensions (H x L x W): 100mm x 200mm x 150mm
  • Weight: 3.5 kg
Key Features
  • EMC filter designed for PowerFlex drives
  • Suitable for 3-phase power systems
  • Operates at 50/60 Hz frequency
  • Supports power ratings from 22 to 30 kW and 30 to 40 HP at 240 V AC
  • Supports power ratings up to 55 kW and 75 HP at 480 V AC
  • Panel mount design
  • IP00 and IP20 UL/NEMA type open enclosure ratings
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with EMC filtering and PowerFlex drive systems to ensure compliance with electrical safety standards.
Applications
  • Industrial motor control systems
  • PowerFlex variable frequency drives
  • Three-phase electrical systems requiring EMC filtering
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Reduces electromagnetic interference, improving system efficiency and reducing electronic waste from equipment failure.
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 22RFD150 EMC Filter is available for immediate purchase, ideal for industrial motor control and PowerFlex drive applications.
