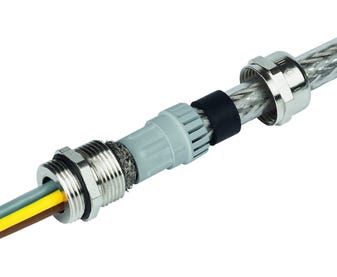

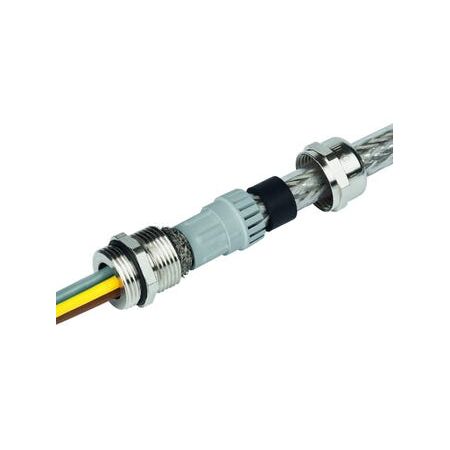

EMC Shielded Nickel Plated Brass Gland M12 | IP68 Waterproof | Strain Relief & Cable Shield Connection | 3-6mm by Cabac
The Cabac EMC Shielded Nickel Plated Brass Gland M12 is designed for effective termination of mesh or foil shielded EMC cables, featuring a corrosion resistant body, IP68 waterproof rating, and integrated strain relief.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac EMC Shielded Nickel Plated Brass Gland M12 Cable OD 3-6mm
Brand: Cabac
SKU: GU12EMC/L
Alternatively Known As: EMC Cable Gland M12, Shielded Cable Gland, Nickel Plated Brass EMC Gland, IP68 EMC Gland, Cable Gland for Shielded Cables
Technical Specifications
- Material: Nickel plated brass body with Polyamide 6 V-2 insert
- Seal: NBR rubber with camera-shutter type cable seal
- Waterproof rating: IP68 (5 bar)
- Cable diameter range: 3mm to 6mm
- Thread size: M12
- Width across flats: 14mm
- Thread length: 10mm
- Integrated strain relief and cable shield connection
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.05 kg
Key Features
- Corrosion resistant nickel plated brass body
- Polyamide 6 V-2 insert with NBR rubber seal
- Camera-shutter type cable seal achieving IP68 (5 bar) waterproof rating
- Supports wide cable diameter range from 3mm to 6mm
- Integrated strain relief capability
- Includes cable shield connection
- Lock nut sold separately with NBR o-ring
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure proper termination into metal enclosures and compliance with EMC standards.
Applications
- Termination of mesh or foil shielded EMC cables
- Use in metal enclosures or terminal boxes for electromagnetic compatibility
- Industrial and commercial electrical installations requiring EMC protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electromagnetic compatibility reducing electromagnetic interference (EMI)
- Durable materials reduce need for frequent replacements
- Supports reliable electrical connections contributing to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac EMC Shielded Nickel Plated Brass Gland M12 Cable OD 3-6mm is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring EMC cable termination.
