EMC Shielded Nickel Plated Brass Gland M32 | IP68 Waterproof | 14-20mm Cable Range | Corrosion Resistant by Cabac

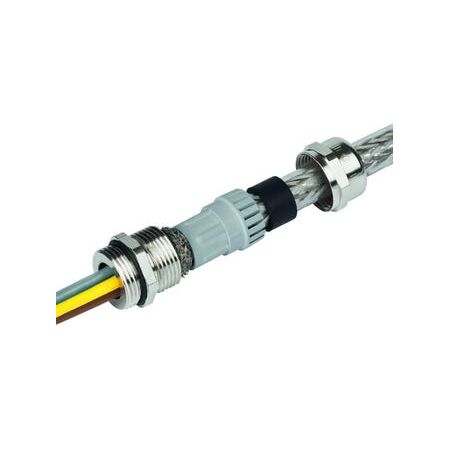

The Cabac EMC Shielded Nickel Plated Brass Gland M32 is designed for effective termination of mesh or foil shielded EMC cables, featuring a corrosion resistant body, IP68 waterproof rating, and integrated strain relief.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac EMC Shielded Nickel Plated Brass Gland M32 Cable OD 14-20mm
Brand: Cabac
SKU: GU32EMC/L
Alternatively Known As: EMC Cable Gland M32, Shielded Cable Gland, Nickel Plated Brass EMC Gland, IP68 EMC Gland, EMC Strain Relief Gland
Technical Specifications
- Material: Nickel plated brass body with polyamide 6 V-2 insert
- Seal: NBR rubber with camera-shutter type cable seal
- Waterproof rating: IP68 (5 bar)
- Cable diameter range: 14mm to 20mm
- Mounting diameter: 32mm
- Thread length: 13mm
- Width across flats: 34mm
- Lock nut: Sold separately (LNM32EMC) with NBR o-ring
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Corrosion resistant nickel plated brass body
- Polyamide 6 V-2 insert with NBR rubber seal
- Camera-shutter type cable seal achieving IP68 (5 bar) waterproof rating
- Supports wide cable diameter range from 14mm to 20mm
- Integrated strain relief capability
- Includes cable shield connection
- Lock nut sold separately with NBR o-ring
Professional Installation Requirements
- Installation must be performed by a qualified electrician ensuring gland is terminated into a metal enclosure with proper cable shield connection for EMC compliance.
Applications
- Termination of mesh or foil shielded EMC cables in electrical enclosures
- Use in metal enclosures or terminal boxes requiring electromagnetic compatibility
- Industrial and commercial electrical installations requiring EMC cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable corrosion resistant materials extend product lifespan reducing waste
- Supports electromagnetic compatibility reducing electronic interference pollution
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac EMC Shielded Nickel Plated Brass Gland M32 Cable OD 14-20mm is available now for immediate purchase. Ideal for industrial and commercial EMC cable termination applications.
