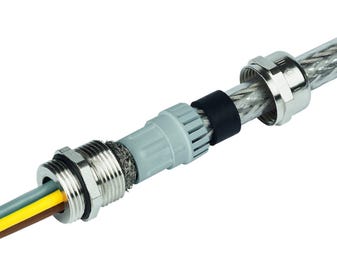

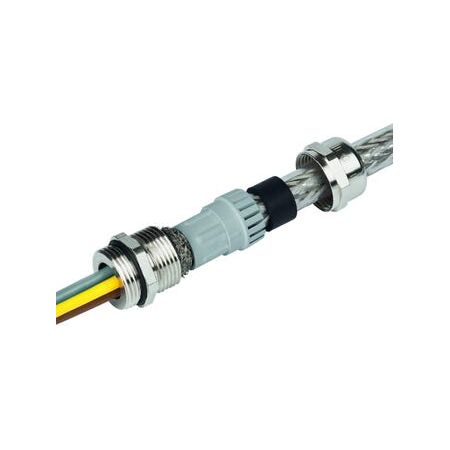

EMC Shielded Nickel Plated Brass Gland M40 | IP68 Waterproof | Strain Relief & Cable Shield Connection | 19-27mm by Cabac
The Cabac EMC Shielded Nickel Plated Brass Gland M40 is designed for effective termination of mesh or foil shielded EMC cables, featuring a corrosion resistant body, IP68 waterproof rating, and integrated strain relief.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac EMC Shielded Nickel Plated Brass Gland M40 Cable OD 19-27mm
Brand: Cabac
SKU: GU40EMC/L
Alternatively Known As: EMC Cable Gland M40, Shielded Cable Gland, Nickel Plated Brass EMC Gland, IP68 EMC Gland, EMC Strain Relief Gland
Technical Specifications
- Material: Nickel plated brass body with Polyamide 6 V-2 insert
- Seal: NBR rubber with camera-shutter type cable seal
- Waterproof rating: IP68 (5 bar)
- Cable diameter range: 19mm to 27mm
- Integrated strain relief and cable shield connection
- Locknut sold separately (LNM40EMC)
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Corrosion resistant nickel plated brass body
- Polyamide 6 V-2 insert with NBR rubber seal
- Camera-shutter type cable seal achieving IP68 (5 bar) waterproof rating
- Supports wide cable diameter range from 19mm to 27mm
- Integrated strain relief capability
- Includes cable shield connection
- Locknut sold separately with NBR o-ring
Professional Installation Requirements
- Must be installed by a qualified electrician ensuring gland is terminated into a metal enclosure with proper cable shield termination for EMC compliance.
Applications
- Termination of mesh or foil shielded EMC cables
- Use in metal enclosures or terminal boxes for EMC cable shielding
- Industrial and commercial electrical installations requiring EMC compliance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable corrosion resistant materials extend product lifespan reducing waste
- Supports electromagnetic compatibility reducing electronic interference pollution
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac EMC Shielded Nickel Plated Brass Gland M40 is available for immediate purchase, ideal for industrial and commercial EMC cable termination applications.
