EMC Shielded Nickel Plated Brass Gland M50 | IP68 Waterproof | 24-35mm Cable OD | Integrated Strain Relief by Cabac

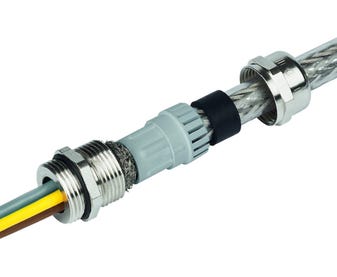

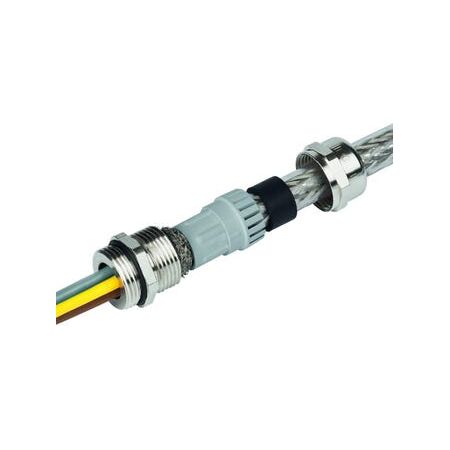

The Cabac EMC Shielded Nickel Plated Brass Gland M50 is designed for effective termination of mesh or foil shielded EMC cables, featuring a corrosion resistant body, IP68 waterproof rating, and integrated strain relief.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac EMC Shielded Nickel Plated Brass Gland M50 Cable OD 24-35mm
Brand: Cabac
SKU: GU50EMC/L
Alternatively Known As: EMC Cable Gland M50, Nickel Plated Brass EMC Gland, Shielded Cable Gland, IP68 EMC Gland, EMC Strain Relief Gland
Technical Specifications
- Material: Nickel plated brass body with Polyamide 6 V-2 insert and NBR rubber seal
- Waterproof rating: IP68 (5 bar)
- Cable diameter range: 24mm to 35mm
- Mounting diameter: 50mm
- Thread length: 14mm
- Width across flats: 55mm
- Integrated strain relief and cable shield connection
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.2 kg
Key Features
- Corrosion resistant nickel plated brass body
- Polyamide 6 V-2 insert with NBR rubber seal
- Camera-shutter type cable seal achieving IP68 (5 bar) waterproof rating
- Supports wide cable diameter range from 24mm to 35mm
- Integrated strain relief capability
- Includes cable shield connection
- Lock nut sold separately with NBR o-ring
Professional Installation Requirements
- Must be installed by a qualified electrician ensuring gland is terminated into a metal enclosure with proper cable shield termination for EMC compliance.
Applications
- Termination of mesh or foil shielded EMC cables in metal enclosures or terminal boxes
- Use in electrical and electronic systems requiring electromagnetic compatibility
- Suitable for industrial and commercial cable management requiring EMC protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable corrosion resistant materials extend product lifespan reducing waste
- Supports electromagnetic compatibility reducing electronic interference and improving device efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac EMC Shielded Nickel Plated Brass Gland M50 is available now for immediate purchase. Ideal for industrial and commercial EMC cable termination applications.
