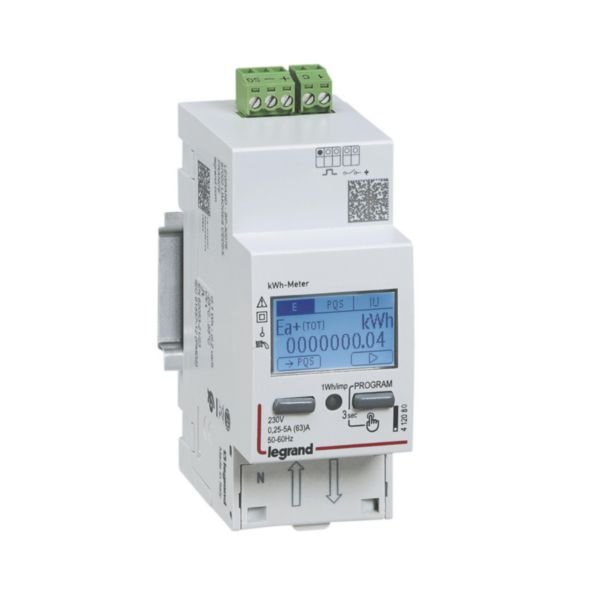

EMDX3 Energy Meter Mono Direct | 63A Capacity | Pulse Output | IP54 Rated | @Each of 1 | by Legrand
The EMDX3 Energy Meter Mono Direct is designed for efficient energy monitoring with a maximum capacity of 63A and pulse output for seamless data collection. Ideal for residential, commercial, and light industrial applications, this meter features a backlit digital display and IP54 protection, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EMDX3 Energy Meter Mono Direct | 63A Capacity | Pulse Output | IP54 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 412080
Alternatively Known As: Single Phase Energy Meter, Direct Connect Energy Meter, Pulse Output Energy Meter, Legrand EMDX3 Meter
Technical Specifications
- Type: Electronic single-phase meter
- Nominal current: 10 A
- Maximum current: 63 A
- Nominal voltage: 197-265 V (N-L)
- Frequency range: 47-63 Hz
- Accuracy class: B
- Energy types measured: Effective power and reactive power
- Tariff type: Two-tariff with external control
- Pulse output: Optical S0 type
- Pulse rate: 0.001-10 Imp/kWh (kvarh)
- Display: Digital backlit
- Mounting: DIN-rail adaptor (DRA)
- Degree of protection: IP54
- Operating temperature: -25 to 55 °C
- Storage temperature: -25 to 70 °C
- Connection type: Screwed terminal, 1-16 mm² capacity
- Width: 2 modular spacings (35.8 mm)
- Height: 92.4 mm
- Depth: 66 mm
- Color: Grey (RAL 7035)
- Halogen free: Yes
- Lock code protected settings: Yes
- Dimensions (H x L x W): 92mm x 66mm x 36mm
- Weight: 0.2 kg
Key Features
- Direct connection up to 63A without current transformer
- Pulse output communication for data collection
- Pulse input for integration with gas, water, or other meters
- Bidirectional measurement of production and consumption energies
- Backlit digital display with easy data reading
- User code protected settings mode
- Compact size with 2 modular width for limited space installation
- IP54 degree of protection suitable for various environments
- Screwed terminal connection with capacity for 1-16 mm² cables
- Halogen free materials for safety and environmental compliance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Residential: Single-phase energy monitoring
- Commercial: Small to medium electrical installations
- Industrial: Energy consumption and production measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables accurate energy monitoring to optimize consumption and reduce waste
- Supports integration with renewable energy production measurement
- Halogen free materials reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand EMDX3 Energy Meter Mono Direct 63A 230V Pulse is available for immediate purchase, ideal for residential, commercial, and light industrial energy monitoring applications.
